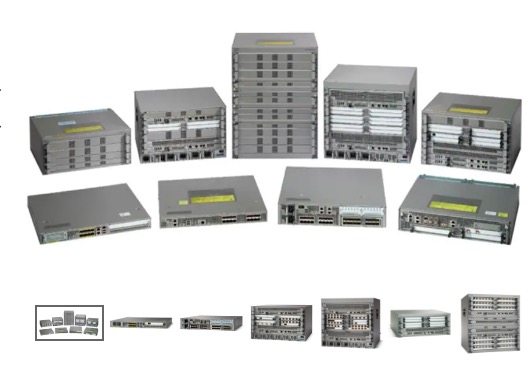

CISCO ASR1001 Router ASR 1000

ASR1001 Specifications

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

Cisco ASR 1001

Product Type

Aggregation Service Router

Form Factor

Desktop - modular - 3U

Connectivity Technology

Wired

System Bandwidth

2.5G (default)
5G (upgrade)

Router Processor

Dual-core 2.2Ghz processor

Build-in Gigabit Ethernet port

4 * SFP ports

Redundancy

Software (license purchase separately)

SIP and Ethernet line card

Integrated in chassis; not upgradable

Embedded hardware-based encryption

up to 1.8-Gbps crypto support throughput

Rack-mounting

19-inch

DRAM Memory

4GB

Flash Memory

8 GB

Shared port adapters

1 SPA slot

External USB flash memory

1-GB USB flash-memory support

Cisco QuantumFlow Processor-based platform

Enables advanced services to operate at high speeds without the need for additional hardware or blades.

Hardware acceleration

Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.

Control and forwarding-plane separation

Ability to scale control plane and data plane independent of each other.

expansion Card

● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter
● Digital Signal Processor SPA
● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA
● SPA-2XOC12-POS with a license to use 1 port
● SPA-4XOC3-POS-V2 with a license to use 2 ports
● 8-port Channelized T1/E1 to DS0 Shared Port Adapter
● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2
● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2
● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2
● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2
● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2
● Cisco 4 port serial SPA
● Cisco 5-Port Gigabit Ethernet Shared Port Adapter
● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
● Cisco 8-Port Gigabit Ethernet Shared Port Adapter
● 8-port OC12/STM4 POS Shared Port Adapters

● 4-port OC-3/STM-1 POS Shared Port Adapters
● Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
● 1 port OC12 STM Shared Port Adapter
● 1 port OC-3c/STM-1 ATM Shared Port Adapter
● 1-port OC48/STM16 POS/RPR Shared Port Adapters
● Cisco 2-Port Gigabit Ethernet Shared Port Adapter
● 2-port OC12/STM4 POS Shared Port Adapters
● 2-port OC48/STM16 POS/RPR Shared Port Adapters
● 3 port OC-3c/STM-1 ATM Shared Port Adapter
● Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter
● 4-port OC-12/STM-4 POS Shared Port Adapters
● 4-port OC48/STM16 POS/RPR Shared Port Adapters
●8-port OC-3/STM-1 POS Shared Port Adapters
● 1-port OC192/STM64 POS/RPR XFP Optics

1GB USB Flash Token

MEMUSB-1024FT

Router  Processor Memory

● M-ASR1K-1001-4GB
● M-ASR1K-1001-8GB
● M-ASR1K-1001-16GB

Feature License

● Unified Border Element - Enterprise Edition 100 Sessions
● Unified Border Element Ent, 100 Sessions, Redundancy
● Unified Border Element Ent, 4000 Sessions, Redundancy
● Unified Border Element - Enterprise Edition 4000 Sessions
● Upgrade from 2.5 Gbps to 5Gbps License for ASR 1001
● Appl. Visibility and Control License for ASR1000 Series
● Broadband RTU and 500 Sessions License for ASR1000 Series
● Flex. Pack. Insp License for ASR1000 Series

● CGN RTU Feature License for up to 2M Sessions on ASR1000
● GTP add-on to Firewall RTU Feature Licence for ASR1000
● Firewall/NAT Stateful Inter-Chassis Redundancy License
● SW Redundancy License for ASR1000 Series
● IPSEC License for ASR1000 Series
● Lawful Intercept License for ASR1000 Series
● FW License for ASR1000 Series

Managed Services Software

● Cisco ASR1001 IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL MS
● Cisco ASR1001 IOS XE - UNIVERSAL MS
● Cisco ASR1001 IOS XE - ENCRYPTION UNIVERSAL MS

System Software license

●  IP base license
● Advanced Enterprise service license
● IP services license

IOS XE Operating System

Cisco IOS XE Software Release 3.2.0S
