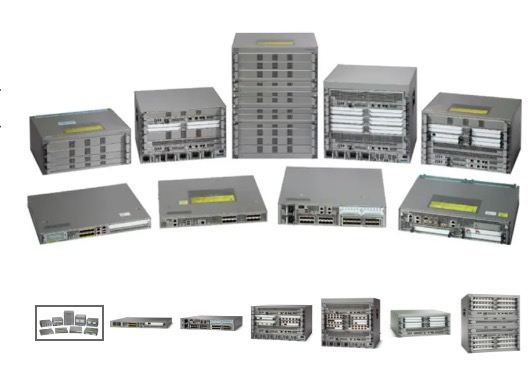

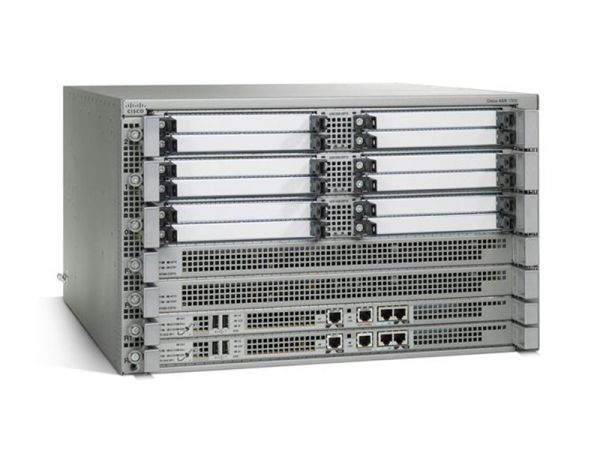

CISCO ASR1006 Router ASR 1000

ASR1006 Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 10.5 in. (266.7 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  98.70 lb (44.77 kg) (with dual AC power supply, SPA, route processor, two Cisco ASR 1000 Series 10-Gbps ESPs [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP-40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100], two Cisco ASR 1000 Series RP1s [ASR1000-RP1], three Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)

Default memory

4-GB DRAM RP1

8-GB DRAM RP2

Number of SIPs or Ethernet line cards supported

3

Shared port adapters

12 SPA slots

Ethernet port adapters

N/A

Cisco ASR 1000 Series ESP

2 ESP slots

Route processor

2 route-processor slots

Redundancy

Hardware: Yes

Built-in Gigabit Ethernet ports

0

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

Cisco ASR 1000 Series

Cisco ASR 1006

ESP support

Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100)

ESP bandwidth

10 to 100 Gbps

ESP memory

Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2‑GB DRAM default; 2‑GB DRAM maximum

Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4‑GB DRAM default; 4‑GB DRAM maximum

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8‑GB DRAM

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM

SIPs and Ethernet line cards

Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)

Embedded hardware-based encryption

Yes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support throughput, Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput, Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput

Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)

Minimum Cisco IOS XE Software release

Same as for Cisco ASR 1002 except Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S

Note: Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S.

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Same as for Cisco ASR 1002

Power input

Same as for Cisco ASR 1002

Power consumption

●  Maximum (DC): 1700W

●  Maximum (AC): 1600W

●  Maximum (out): 1275W

Or

●  Maximum (DC): 2100W

●  Maximum (AC-high line): 2000W

●  Maximum (out): 1695W

Airflow

Front-to-back

Operating temperature (nominal)

32 to 104°F
(0 to 40°C)

Operating temperature (short-term)

32 to 122°F
(0 to 50°C)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity (short-term)

5 to 90%

Storage temperature

-40 to 150°F

(-40 to 70°C)

Storage humidity (relative humidity)

5 to 95%

Operating altitude

-500 to 10,000 feet
(152 to 3048 meters)

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63

EMC standards

●  FCC 47 CFR Part 15 Class A

●  VCCI Class A

●  AS/NSZ Class A

●  ICES-003 Class A

●  EN55022/CISPR 22 Information Technology Equipment

(Emissions)

●  EN55024/CISPR 24 Information Technology Equipment

(Immunity)

●  EN300 386 Telecommunications Network Equipment

●  (EMC)

●  EN50082-1/EN61000-6-1 Generic Immunity Standard

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
