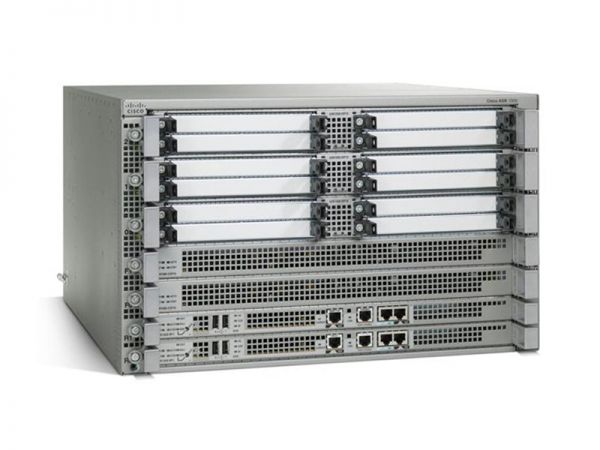

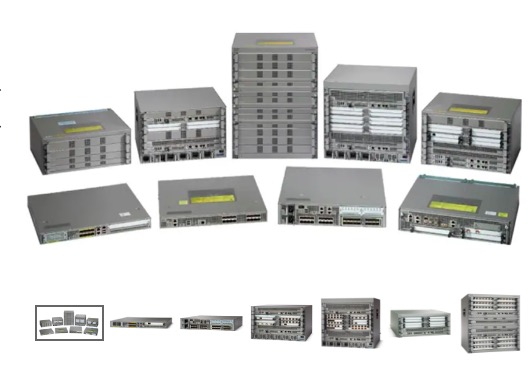

CISCO ASR1006-20G-VPN/K9 Router ASR 1000

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 1.71 in. (43.43 mm)

Width: 17.3 in. (439.42 mm)

Depth: 18.17 in. (461.5 mm)

Weight:

●  25 lb (11.35 kg) fully loaded

Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated.

Height: 3.5 in. (88.9 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)

●  39.05 lb (17.72 kg) (with dual DC power supply and blank covers)

●  No SPAs included

Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.

Height: 1.71 in. (43.43 mm)

Width: 17.3 in. (439.42 mm)

Depth: 18.38 in. (466.85 mm)

Weight:

●  23 lb (10.44 kg) with dual AC power supplies

●  22.5 lb (10.21 kg) with dual DC power supplies

Height: 3.5 in. (88.9 mm)

Width: 17.3 in. (439.4 mm)

Depth: 19.25 in. (489.0 mm)

Weight:

●  34 lb (15.45 kg) (with dual AC power supplies)

●  34 lb (15.45 kg) (with dual DC power supplies)

Height: 7 in. (177.8 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  68.7 lb (31.16 kg) (with dual AC power supply, SPA blank covers, Cisco ASR 1000 Series 10-Gbps ESP [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESP [ASR1000-ESP-40], Cisco ASR 1000 Series Route Processor 1 [RP1] [ASR1000-RP1], two Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)

Height: 10.5 in. (266.7 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  98.70 lb (44.77 kg) (with dual AC power supply, SPA, route processor, two Cisco ASR 1000 Series 10-Gbps ESPs [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP-40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100], two Cisco ASR 1000 Series RP1s [ASR1000-RP1], three Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)

Height: 10.47 in. (265.9 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  36.5 lb empty

●  112 lb (50.91 kg) (with two fan modules, three AC power supplies, three power bay blanks, two Cisco ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or two Cisco ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100-X] or two Cisco ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200-X], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], two Cisco ASR 1000 Series 100-Gbps MIPs [ASR1000-MIP100], four EPA blanks, and no EPAs)

●  Height: 15.72 in. (399.3 mm)

●  Width: 17.2 in. (437.4 mm)

●  Depth: 18.15 in. (461.0 mm)

●  Weight:

●  50 lb empty

●  154 lb (70 kg) (with three fan modules, four AC power supplies, two power bay blanks, two Cisco ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or two Cisco ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100-X] or two Cisco ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200] or two Cisco ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200-X], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], three Cisco ASR 1000 Series 100-Gbps MIPs [ASR1000-MIP100], six EPA blanks, and no EPAs)

●  Height: 22.8 in. (579.1 mm)

●  Width: 17.2 in. (437.4 mm)

●  Depth: 18.15 in. (461.0 mm)

●  Weight:

●  184.0 lb (83.46 kg) (with redundant AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100-X] or ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], six Cisco ASR 1000 Series 40-Gbps SIPs [ASR1000-SIP40], and no SPAs)

Default memory

8-GB DRAM shared across route processor, ESP, and SIP

4-GB DRAM shared across route processor, ESP, and SIP

8-GB DRAM shared across route processor, ESP, and MIP

16-GB DRAM shared across route processor, ESP, and MIP

4-GB DRAM RP1

8-GB DRAM RP2

4-GB DRAM RP1

8-GB DRAM RP2

8-GB DRAM RP2

8-GB DRAM RP3

8-GB DRAM RP2

8-GB DRAM RP3

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

Integrated in chassis

Integrated in chassis

Integrated in chassis

Integrated in chassis

2

3

2

3

6

Shared port adapters

1 single-height SPA slot

3 SPA slots

N/A

N/A

8 SPA slots

12 SPA slots

8 SPA slots

12 SPA slots

24 SPA slots

Ethernet port adapters

N/A

N/A

N/A

1 EPA slot

N/A

N/A

4 EPA slots

6 EPA slots

12 EPA slots

Cisco ASR 1000 Series ESP

Integrated in chassis

Integrated in chassis

Integrated in chassis

Integrated in chassis

1 ESP slot

2 ESP slots

2 ESP slots

2 ESP slots

2 ESP slots

Route processor

Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor

Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor

Integrated in the chassis: Cisco ASR 1001-HX Series Route Processor

Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor

1 route-processor slot

2 route-processor slots

2 route-processor slots

2 route-processor slots

2 route-processor slots

Redundancy

Software: Yes

Software: Yes

Software: Yes

Software: Yes

Software: Yes

Hardware: Yes

Hardware: Yes

Hardware: Yes

Hardware: Yes

Built-in Gigabit Ethernet ports

Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports

Yes: 6 Gigabit Ethernet SFP ports

Yes: 8 Gigabit Ethernet SFP ports, plus optional 4 configurable 1GE/10GE ports

Yes: 8 Gigabit Ethernet SFP ports

0

0

0

0

0

Built-in 10 Gigabit Ethernet port

Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports

Note: Built-in 10-GB ports cannot be reduced to 1-GB speed.

No

Yes, Four 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports, plus optional 4 configurable 1GE/10GE ports

Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports

Note: Built-in 10-GB ports cannot be reduced to 1-GB speed.

No

No

No

No

No

Network interface module

Yes

No

No

Yes

No

No

No

No

No
