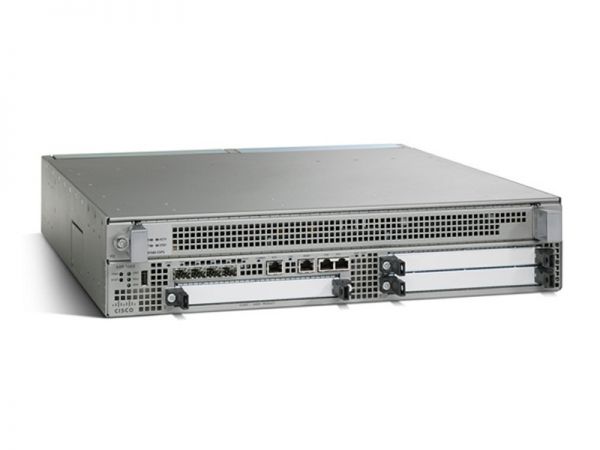

CISCO ASR1002-F Router ASR 1000
- 763 412 7282
- +86 010 69614620
ASR1002-F Buying Guide
ASR1002-F - Cisco ASR 1000 Series Aggregation Services Routers Chassis is listed by YYST Global for buyers looking for CISCO Cisco Router ASR 1000. ASR1002-F CISCO enterprise router for WAN edge projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 9,840.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: ASR1002-F
- Brand: CISCO
- Category: Cisco Router ASR 1000
- Condition: New Factory Sealed
- Reference price: US$ 9,840.00
ASR1002-F Overview
ASR1002-F is a CISCO enterprise router listed by YYST Global for WAN edge routing, branch connectivity, spare replacement and enterprise routing upgrades. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: ASR1002-F - Cisco ASR 1000 Series Aggregation Services Routers Chassis. Category: Cisco Router ASR 1000. Condition: New Factory Sealed.
ASR1002-F Specification
| Datasheet series | Cisco ASR 1000 Series Aggregation Services Routers |
| Exact model | ASR1002-F |
| Product role | Edge aggregation router; confirm chassis, route processor, ESP, SIP/SPA modules, licenses and power |
| Primary validation | route processor, ESP throughput and interface modules |
| Procurement check | license level, redundancy and power option |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Cisco ASR 1000 Series official product page |
| Physical specifications* | Height: 3.5 in. (88.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight:
Note: The Cisco ASR 1002 has the route processor and SIP integrated. |
| Default Memory | 4-GB DRAM shared across RP and SIP |
| Shared port adapters | 3 SPA slots |
| Cisco ASR 1000 Series ESP | 1 ESP slot |
| Route Processor | Integrated in chassis |
| Number of SIPs or Ethernet Line Cards Supported | Integrated in chassis |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet Ports | Yes: 4 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
| Built-in 10 Gigabit Ethernet Port | No |
| Network Interface Module | No |
| Integrated daughter card (IDC) | No |
| Airflow | Front-to-back |
| Processor Module Comparison and Specifications | |
| ESP support | Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5), Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), and noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N) |
| ESP bandwidth | 5 to 10 Gbps |
| ESP memory | Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5): 1GB DRAM default; 1GB DRAM maximum Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2GB DRAM default; 2GB DRAM maximum |
| SIPs and Ethernet Line Cards | Integrated in chassis: Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10); not upgradable |
| Embedded hardware-based encryption | Yes: On Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5)
with up to 1.8-Gbps crypto support throughput and on Cisco ASR 1000
Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support
throughput Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N) |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release2.1 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Power Requirements | |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC (85to 264V; 120 or 240V; 60or 50Hz nominal) Worldwide ranging DC (-40.5 to -72: -48V nominal) |
| Power consumption |
|
| Airflow | Front-to-back |
| Environmental Specifications | |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131°F (-5 to 55°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -38 to 150°F (-39 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating Altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Regulatory Compliance | |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards |
|
| Safety Standard |
|
ASR1002-F Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | Free CCIE Expert Technical Support |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
ASR1002-F FAQ
What is ASR1002-F?
ASR1002-F - Cisco ASR 1000 Series Aggregation Services Routers Chassis is a CISCO Cisco Router ASR 1000 product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of ASR1002-F?
The listed datasheet series for ASR1002-F is Cisco ASR 1000 Series Aggregation Services Routers. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of ASR1002-F?
The listed exact model for ASR1002-F is ASR1002-F. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is ASR1002-F available from YYST Global?
YYST Global can help check availability, lead time and configuration for ASR1002-F. Contact the sales team before ordering to confirm current stock.
What is the price of ASR1002-F?
The current reference price for ASR1002-F is US$ 9,840.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
