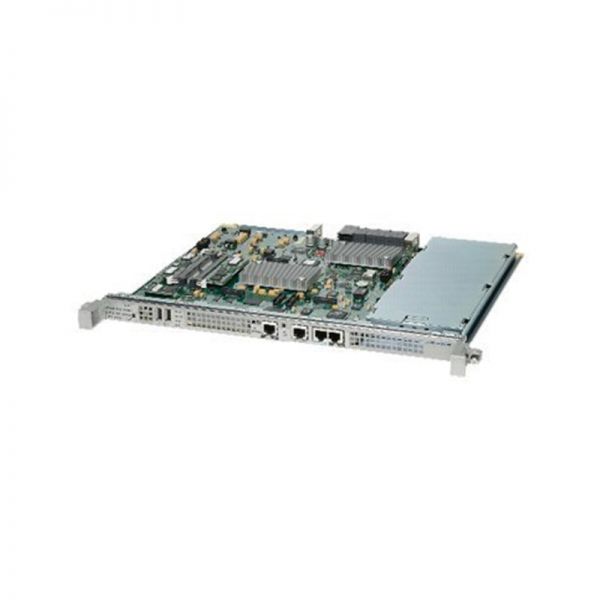

CISCO ASR1000-RP1 Router ASR 1000

ASR1000-RP1 Specification

Chassis support

Cisco ASR 1004 and ASR 1006 chassis

(Note: The Cisco ASR 1002 chassis comes with the Cisco ASR 1000 Series RP1 built into the chassis.)

(Note: Cisco ASR 1001, ASR 1001-X, and ASR 1002-X (part numbers ASR1001, ASR1001-X, ASR1002-X) have an integrated Route Processor built in to the chassis that is not upgradable)

Software compatibility

Cisco IOS XE Operating System, which is based on Cisco IOS Software Release 12.2SR
(Please consult your Cisco account representative for additional details.)

Software protocols

Refer to Cisco IOS Software 12.2SR protocol support

Connectivity

●  Console port (RJ-45 connector)

●  Auxiliary port (RJ-45 connector)

●  10/100/1000 Ethernet port (RJ-45 connector)

●  Two RJ-48 connectors for BITS input clocks

Memory options

●  Two 1-GB Double Data Rate 2 (DDR2) mini-DIMMs

●  Two 2-GB DDR2 mini-DIMMs

●  Upgradable memory from 2-GB to 4-GB DRAM

Storage options

●  40-GB HDD (RP1 only)

●  1-GB USB Compact Flash memory

Performance

●  Scalability up to 1,000,000 IPv4 routes or 500,000 IPv6 routes

●  BGP RR Scalability up to 5,000,000 IPv4 routes or 3,000,000 IPv6 routes

Reliability and availability

●  1 + 1 redundancy in dual-route-processor configuration

●  Support for online insertion and removal (OIR)

●  Support for NSF and Stateful Switchover (SSO)

●  Support for ISSU

MIBs

●  RFC 2737 compliant

Network management

●  Telnet and Secure Shell (SSH) Protocol (command-line interface [CLI])

●  Console port (through the CLI)

●  Simple Network Management Protocol (SNMP)

●  RFC 2665

LEDs

●  PWR - Power

Green - All power rails are within specifications

●  STAT - Status

Green - Cisco IOS Software has booted

Yellow - BootROM has successfully loaded

Red - System failure or during boot process

●  ACTV- Active

Green - Active route processor

●  STBY - Standby

Yellow - Standby route processor

●  CRIT - Critical

Red - Critical alarm or during boot process

●  MAJ - Major

Red - Major alarm

●  MIN - Minor

Amber - Minor alarm

●  LINK - Management Ethernet link status

Solid green - Link with no activity

FLASH green - Link with activity

Off - No link

●  DISK0 - Internal Compact Flash

FLASH Green - Activity indicator

Off - No activity

●  DISK1 - External Compact Flash
FLASH green - Activity indicator
Off - No activity

●  DISK2 - Internal HDD
FLASH green - Activity indicator
Off - No activity

●  CARRIER - BITS interface
Off - Out of service
Green - In frame and in service
Amber - Fault or loop condition

Physical dimensions
(H x W x D)

0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36m)

Approvals and compliance

Safety

●  UL60950-1 and CAN/CSA-C22.2 No. 60950-1-03 Information technology equipment

●  AS/NZS 60950-1

●  IEC/EN 60950-1 Information technology equipment

●  73/23/EEC

Electromagnetic Emissions Certification

●  AS/NZ 3548: 1995 (including AMD I + II) Class B

●  EN55022: 1998 Class B

●  CISPR 22: 1997

●  EN55022: 1994 (including AMD I + II)

●  47 CFR Part 15: 2000 (FCC) Class B

●  VCCI V-3/01.4 Class 2

●  CNS-13438: 1997 Class B

●  GR1089: 1997 (including Rev. 1: 1999)

Immunity

●  EN300386: 2000-TNE EMC requirements; product family standard; high priority of service; central office and noncentral office locations

●  EN50082-1: 1992/1997

●  EN50082-2: 1995-Generic Immunity Standard, Heavy

Industrial

●  CISPR24: 1997

●  EN55024: 1998-Generic ITE immunity standard

●  EN61000-4-2: 1995 + AMD I + II ESD, Level 4/8 kV contact, 15 kV air

●  IEC-1000-4-3: 1995 + AMD 1-Radiated Immunity, 10 V/m

●  IEC-1000-4-4: 1995-Electrical Fast Transients, Level 4/4 kV/B

●  IEC-1000-4-5: 1995 + AMD 1-DC Surge-Class 3; AC Surge-Class 4

●  EN61000-4-6: 1996 + AMD 1-RF conducted immunity, 10 Vrms

●  EN61000-4-11: 1995-Voltage Dips and Sags

●  ETS300 132-2: 1996 + corrigendum, December 1996

●  GR1089:1997 (including Rev1: 1999)

Network Equipment Building Standards

The module meets the following Networking Equipment Building Standards (NEBS):

●  GR-1089-CORE

●  GR-63-CORE

European Telecommunication Standards Institute (ETSI)

●  ETSI 300 386-1 - Levels for equipment with a "high priority of service" that is installed in "locations other than telecommunication centers"

●  ETSI 300 386-2:1997 - Levels for equipment with a "high priority of service" that is installed in "locations other than telecommunication centers"

●  ETSI 300 132-2: December 1994 - Power supply interfaces at the input to telecommunications equipment Sections 4.8 and 4.9

Environmental

●  Storage temperature: -38 to 150°F (-40 to 70°C)

●  Operating temperature, nominal: 41 to 104°F (5 to 40°C)

●  Operating temperature, short-term: 23 to 131°F (-5 to 55°C)

●  Storage relative humidity: 5 to 95% relative humidity (RH)

●  Operating humidity, nominal: 5 to 85% RH

●  Operating humidity, short-term: 5 to 90% RH

●  Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
