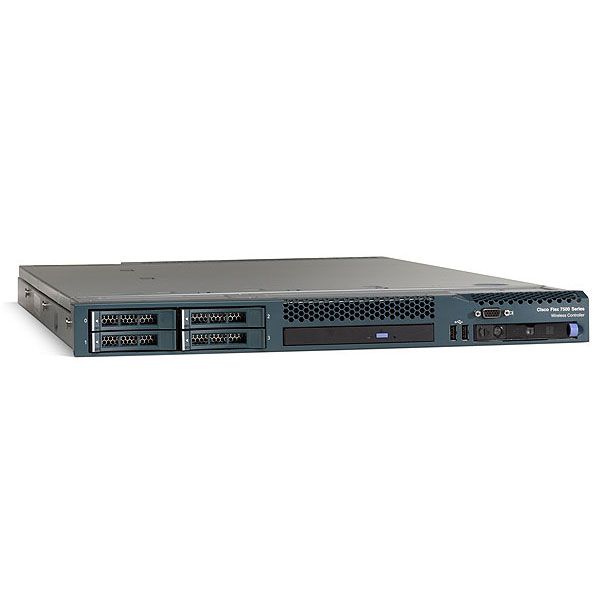

CISCO AIR-CT7510-500-K9 Wireless Controllers

Wireless

IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11k, 802.11n, 802.11r, 802.11u, 802.11w, 802.11ac

Wired/Switching/Routing

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation

Data Request For Comments (RFC)

●  RFC 768 UDP

●  RFC 791 IP

●  RFC 2460 IPv6 (pass through Bridging mode only)

●  RFC 792 ICMP

●  RFC 793 TCP

●  RFC 826 ARP

●  RFC 1122 Requirements for Internet Hosts

●  RFC 1519 CIDR

●  RFC 1542 BOOTP

●  RFC 2131 DHCP

●  RFC 5415 CAPWAP Protocol Specification

Security Standards

●  WPA

●  IEEE 802.11i (WPA2, RSN)

●  RFC 1321 MD5 Message-Digest Algorithm

●  RFC 1851 The ESP Triple DES Transform

●  RFC 2104 HMAC: Keyed Hashing for Message Authentication

●  RFC 2246 TLS Protocol Version 1.0

●  RFC 2401 Security Architecture for the Internet Protocol

●  RFC 2403 HMAC-MD5-96 within ESP and AH

●  RFC 2404 HMAC-SHA-1-96 within ESP and AH

●  RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV

●  RFC 2407 Interpretation for ISAKMP

●  RFC 2408 ISAKMP

●  RFC 2409 IKE

●  RFC 2451 ESP CBC-Mode Cipher Algorithms

●  RFC 3280 Internet X.509 PKI Certificate and CRL Profile

●  RFC 4347 Datagram Transport Layer Security

●  RFC 4346 TLS Protocol Version 1.1

Encryption

●  Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): RC4 40, 104 and 128 bits (both static and shared keys)

●  Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with Cipher Block Chaining Message Authentication Code Protocol (CCMP)

●  Data Encryption Standard (DES): DES-CBC, 3DES

●  Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit

●  Datagram Transport Layer Security (DTLS): AES-CBC

●  IPsec: DES-CBC, 3DES, AES-CBC

Authentication, Authorization, and Accounting (AAA)

●  IEEE 802.1X

●  RFC 2548 Microsoft Vendor-Specific RADIUS Attributes

●  RFC 2716 PPP EAP-TLS

●  RFC 2865 RADIUS Authentication

●  RFC 2866 RADIUS Accounting

●  RFC 2867 RADIUS Tunnel Accounting

●  RFC 3576 Dynamic Authorization Extensions to RADIUS

●  RFC 3579 RADIUS Support for EAP

●  RFC 3580 IEEE 802.1X RADIUS Guidelines

●  RFC 3748 Extensible Authentication Protocol

●  Web-based authentication

●  Terminal Access Controller Access-Control System (TACACS) support for management users

Management

●  SNMP v1, v2c, v3

●  RFC 854 Telnet

●  RFC 1155 Management Information for TCP/IP-Based Internets

●  RFC 1156 MIB

●  RFC 1157 SNMP

●  RFC 1213 SNMP MIB II

●  RFC 1350 TFTP

●  RFC 1643 Ethernet MIB

●  RFC 2030 SNTP

●  RFC 2616 HTTP

●  RFC 2665 Ethernet-Like Interface types MIB

●  RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions

●  RFC 2819 RMON MIB

●  RFC 2863 Interfaces Group MIB

●  RFC 3164 Syslog

●  RFC 3414 User-Based Security Model (USM) for SNMPv3

●  RFC 3418 MIB for SNMP

●  RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs

●  Cisco private MIBs

Management Interfaces

●  Web-based: HTTP/HTTPS

●  Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port

●  Cisco Wireless Control System (WCS)

Interfaces and Indicators

●  2 x 10 Gigabit Ethernet interfaces

●  Small Form-Factor Pluggable (SFP) options (only Cisco SFPs supported): SFP-10G-SR, SFP-10G-LR

●  LED indicators: Network Link, Diagnostics

●  1 x Service Port: 10/100/1000 Mbps Ethernet (RJ-45)

Physical Dimensions

●  Dimensions (WxDxH): 17.30 x 28.00 x 1.69 in. (440.0 x 711.4 x 43.0 mm)

●  Weight: 35.1 lb (15.9 kg) with 2 power supplies

Environmental Conditions

Air temperature:

●  Appliance On: 10°C to 35°C (50°F to 95°F); altitude: 0 to 914.4 m (3000 ft), decrease system temperature by 1.0°C for every 1000-foot increase in altitude

●  Appliance Off: 5°C to 45°C (41°F to 113°F); maximum altitude: 3048 m (10,000 ft)

●  Storage: -40°C to 60°C (-40°F to 140°F); maximum altitude: 3048 m (10,000 ft)

Humidity:

●  Appliance On: 20% to 80%; maximum dew point: 21°C; maximum rate of change: 5 °C/hr

●  Appliance Off: 8% to 80%; maximum dew point: 27°C

Electrical input:

●  Sine-wave input (47 - 63 Hz) required

●  Input voltage low range:

◦   Minimum: 100 VAC

◦   Maximum: 127 VAC

●  Input voltage high range:

◦   Minimum: 200 VAC

◦   Maximum: 240 VAC

●  Input kilovolt-amperes (kVA), approximately:

◦   Minimum: 0.090 kVA

◦   Maximum: 0.700 kVA

●  Heat output (Maximum) 2302 Btu per hour (675 watts)

●  Acoustical noise emissions:

◦   Sound power, idling: 6.1 bels maximum

◦   Sound power, operating: 6.1 bels maximum

Regulatory Compliance

CE Mark

Safety:

●  UL 60950-1:2003

●  EN 60950:2000

●  EMI and susceptibility (Class A)

●  U.S.: FCC Part 15.107 and 15.109

●  Canada: ICES-003

●  Japan: VCCI

●  Europe: EN 55022, EN 55024
