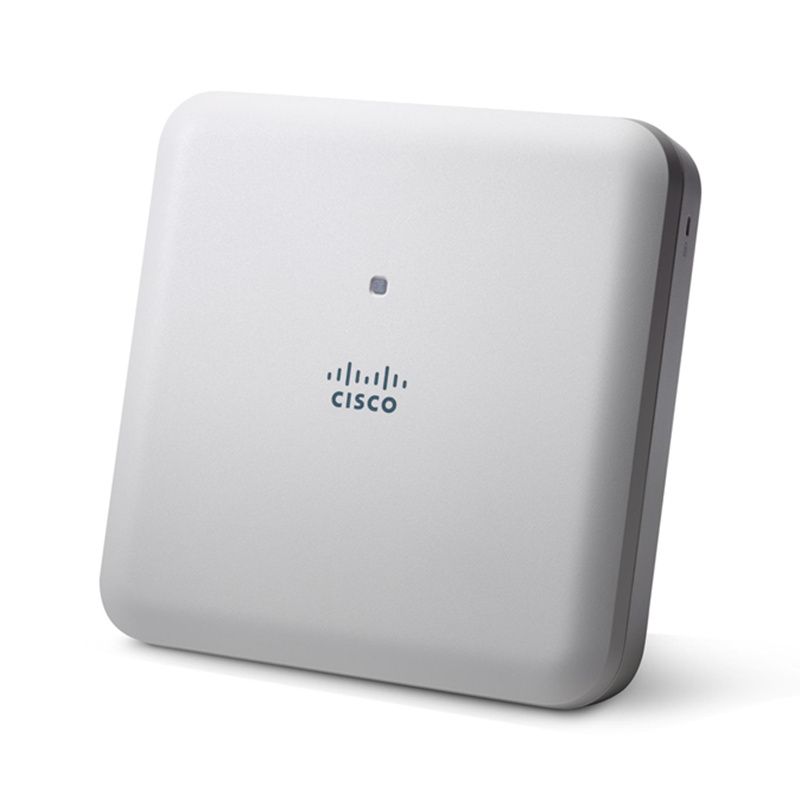

CISCO AIR-AP1832I-A-K9 Aironet 1832i Access Points

AIR-AP1832I-A-K9 is a CISCO wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: AIR-AP1832I-A-K9 Cisco Aironet 1832i 802.11 a/b/g/n/ac Access Point. Category: Cisco Aironet 1832i Access Points. Condition: New Factory Sealed.

Product Name	Cisco Aironet 1830 Series
Part Number	Cisco Aironet 1832i Access Point: Indoor environments, with internal antennas ●  AIR-AP1832I-x-K9: Dual-band, controller-based 802.11a/g/n/ac, Wave 2
Software	Cisco Unified Wireless Network Software Release with AireOS wireless controllers:
	●  8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points
Deployment modes	Centralized, standalone, sniffer,** Cisco FlexConnect®, monitor,** OfficeExtend,** mesh**
Supported wireless LAN controllers	●  Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Catalyst 9800 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, * * Cisco Catalyst 3650 and 3850 Series Switches with integrated controller **
	●  Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	●  3x3 MIMO with two spatial streams
	●  Maximal Ratio Combining (MRC)
	●  20- and 40-MHz channels
	●  PHY data rates up to 300 Mbps (40 MHz with 5 GHz)
	●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
	●  802.11 Dynamic Frequency Selection (DFS)
	●  Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 and 2 capabilities	●  3x3 MIMO with two spatial streams, single-user or multiuser MIMO
	●  MRC
	●  802.11ac beamforming (transmit beamforming)
	●  20-, 40-, and 80-MHz channels
	●  PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
	●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
	●  802.11 DFS
	●  CSD support
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 23) and 5 GHz:
	MCS index[1]			GI[2] = 800 ns					GI = 400 ns
				20-MHz rate (Mbps)					40-MHz rate (Mbps)
	0			6.5					15
	1			13					30
	2			19.5					45
	3			26					60
	4			39					90
	5			52					120
	6			58.5					135
Data rates supported	MCS index1			GI2 = 800 ns					GI = 400 ns
				20-MHz rate (Mbps)					40-MHz rate (Mbps)
	7			65					150
	8			13					30
	9			26					60
	10			39					90
	11			52					120
	12			78					180
	13			104					240
	14			117					270
	15			130					300
	802.11ac data rates (5 GHz):
	MCS index					Spatial streams			GI = 400 ns
						20-MHz rate (Mbps)		40-MHz rate (Mbps)	80-MHz rate (Mbps)
	0		1			6.5		13.5	32.5
	1		1			13		27	65
	2		1			19.5		40.5	97.5
	3		1			26		54	130
	4		1			39		81	195
	5		1			52		108	260
	6		1			58.5		121.5	292.5
	7		1			65		135	325
	8		1			78		162	390
	MCS index					Spatial streams			GI = 400 ns
						20-MHz rate (Mbps)		40-MHz rate (Mbps)	80-MHz rate (Mbps)
	9		1			–		180	433.3
	0		2			13		27	65
	1		2			26		54	130
	2		2			39		81	195
	3		2			52		108	260
	4		2			78		162	390
	5		2			104		216	520
	6		2			117		243	585
	7		2			130		270	650
	8		2			156		324	780
	9		2			–		360	866.7
Maximum number of nonoverlapping channels	A (A regulatory domain):								K (K regulatory domain):
	●  2.412 to 2.462 GHz; 11 channels								●  2.412 to 2.472 GHz; 13 channels
	●  5.180 to 5.320 GHz; 8 channels								●  5.180 to 5.320 GHz; 8 channels
	●  5.500 to 5.700 GHz; 8 channels								●  5.500 to 5.620 GHz; 7 channels
	(excludes 5.600 to 5.640 GHz)								●  5.745 to 5.805 GHz; 4 channels
	●  5.745 to 5.825 GHz; 5 channels								N (N regulatory domain):
	B (B regulatory domain):								●  2.412 to 2.462 GHz; 11 channels
	●  2.412 to 2.462 GHz; 11 channels								●  5.180 to 5.320 GHz; 8 channels
	●  5.180 to 5.320 GHz; 8 channels								●  5.745 to 5.825 GHz; 5 channels
	●  5.500 to 5.720 GHz; 12 channels								Q (Q regulatory domain):
	●  5.745 to 5.825 GHz; 5 channels								●  2.412 to 2.472 GHz; 13 channels
	C (C regulatory domain):								●  5.180 to 5.320 GHz; 8 channels
	●  2.412 to 2.472 GHz; 13 channels								●  5.500 to 5.700 GHz; 11 channels
	●  5.745 to 5.825 GHz; 5 channels								R (R regulatory domain):
	D (D regulatory domain):								●  2.412 to 2.472 GHz; 13 channels
	●  2.412 to 2.462 GHz; 11 channels								●  5.180 to 5.320 GHz; 8 channels
	●  5.180 to 5.320 GHz; 8 channels								●  5.660 to 5,805 GHz; 7 channels
	●  5.745 to 5.825 GHz; 5 channels								S (S regulatory domain):
	E (E regulatory domain):								●  2.412 to 2.472 GHz; 13 channels
	●  2.412 to 2.472 GHz; 13 channels								●  5.180 to 5.320 GHz; 8 channels
	●  5.180 to 5.320 GHz; 8 channels								●  5.500 to 5.700 GHz;, 11 channels
	●  5.500 to 5.700 GHz; 8 channels								●  5.745 to 5.825 GHz; 5 channels
	(excludes 5.600 to 5.640 GHz)								T (T regulatory domain):
	F (F regulatory domain):								●  2.412 to 2.462 GHz; 11 channels
	●  2.412 to 2.472 GHz; 13 channels								●  5.280 to 5.320 GHz; 3 channels
	●  5.250 to 5.350 GHz; 4 channels								●  5.500 to 5.700 GHz; 8 channels
	●  5.725 to 5.825 GHz; 4 channels								(excludes 5.600 to 5.640 GHz)
	H (H regulatory domain):								●  5.745 to 5.825 GHz; 5 channels
	●  2.412 to 2.472 GHz; 13 channels								Z (Z regulatory domain):
	●  5.150 to 5.350 GHz; 8 channels								●  2.412 to 2.462 GHz; 11 channels
	●  5.745 to 5.825 GHz; 5 channels								●  5.180 to 5.320 GHz; 8 channels
	I (I regulatory domain):								●  5.500 to 5.700 GHz; 8 channels
	●  2.412 to 2.472 GHz; 13 channels								(excludes 5.600 to 5.640 GHz)
	●  5.180 to 5.320 GHz; 8 channels								●  5.745 to 5.825 GHz; 5 channels
Note: Customers are responsible for verifying approval for use in their individual countries.
Maximum number of nonoverlapping channels	2.4 GHz								5 GHz
	●  802.11b/g:								●  802.11a:
	◦  20 MHz: 3								◦  20 MHz: 25
	●  802.11n:								●  802.11n:
	◦  20 MHz: 3								◦  20 MHz: 25
	◦  40 MHz: 1 (hardware capable)								◦  40 MHz: 12
									●  802.11ac:
									◦  20 MHz: 21
									◦  40 MHz: 12
									◦  80 MHz: 6
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive sensitivity	●  802.11b (CCK)				●  802.11g (non HT20)
	◦  -101 dBm @ 1 Mbps				◦  -96 dBm @ 6 Mbps
	◦  -98 dBm @ 2 Mbps				◦  -95 dBm @ 9 Mbps
	◦  -92 dBm @ 5.5 Mbps				◦  -94 dBm @ 12 Mbps
	◦  -89 dBm @ 11 Mbps				◦  -92 dBm @ 18 Mbps
					◦  -88 dBm @ 24 Mbps
					◦  -85 dBm @ 36 Mbps
					◦  -81 dBm @ 48 Mbps
					◦  -79 dBm @ 54 Mbps
	2.4 GHz								5 GHz
	●  802.11n (HT20)								●  802.11n (HT40)
	◦  -96 dBm @ MCS0								◦  -93 dBm @ MCS0
	◦  -93 dBm @ MCS1								◦  -90 dBm @ MCS1
	◦  -90 dBm @ MCS2								◦  -87 dBm @ MCS2
	◦  -87 dBm @ MCS3								◦  -84 dBm @ MCS3
	◦  -84 dBm @ MCS4								◦  -80 dBm @ MCS4
	◦  -79 dBm @ MCS5								◦  -76 dBm @ MCS5
	◦  -78 dBm @ MCS6								◦  -75 dBm @ MCS6
	◦  -76 dBm @ MCS7								◦  -73 dBm @ MCS7
	◦  -93 dBm @ MCS8								◦  -90 dBm @ MCS8
	◦  -90 dBm @ MCS9								◦  -87 dBm @ MCS9
	◦  -87 dBm @ MCS10								◦  -84 dBm @ MCS10
	◦  -84 dBm @ MCS11								◦  -81 dBm @ MCS11
	◦  -81 dBm @ MCS12								◦  -77 dBm @ MCS12
	◦  -76 dBm @ MCS13								◦  -73 dBm @ MCS13
	◦  -75 dBm @ MCS14								◦  -72 dBm @ MCS14
	◦  -73 dBm @ MCS15								◦  -70 dBm @ MCS15
	802.11ac receive sensitivity
	802.11ac (non HT80)
	●  -89 dBm @ 6 Mbps
	●  -73 dBm @ 54 Mbps
	MCS index	Spatial streams
							VHT20		VHT80
	0	1					-96 dBm		-89 dBm
	7	1					-76 dBm		-70 dBm
	8	1					-71 dBm		-66 dBm
	9	1					NA		-64 dBm
	0	2					-93 dBm		-86 dBm
	7	2					-73 dBm		-67 dBm
	8	2					-68 dBm		-63 dBm
	9	2					NA		-61 dBm
Maximum transmit power	2.4 GHz								5 GHz
	●  802.11b								●  802.11a
	◦  22 dBm, 3 antennas								◦  23 dBm, 3 antennas
	●  802.11g								●  802.11n (HT20)
	◦  22 dBm, 3 antennas								◦  23 dBm, 3 antennas
	●  802.11n (HT20)								●  802.11n (HT40)
	◦  22 dBm, 3 antennas								◦  23 dBm, 3 antennas
									●  802.11ac
									◦  non-HT80: 23 dBm, 3 antennas
									◦  VHT20 23 dBm, 3 antennas
									◦  VHT40: 23 dBm, 3 antennas
									◦  VHT80: 23 dBm, 3 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Available transmit power settings	2.4 GHz								5 GHz
	●  22 dBm								●  23 dBm
	●  19 dBm								●  20 dBm
	●  16 dBm								●  17 dBm
	●  13 dBm								●  14 dBm
	●  10 dBm								●  11 dBm
	●  7 dBm								●  8 dBm
	●  4 dBm								●  5 dBm
	●  1 dBm								●  2 dBm
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antenna	●  2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
	●  5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
Interfaces	●  1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
	●  Management console port (RJ-45)
	●  USB 2.0 (enabled via future software)
Indicators	●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions	●  Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
(W x L x H)
Weight	●  2.05 lb (930 grams)
Environmental	Cisco Aironet 1830i
	●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
	●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
	●  Operating temperature: 32° to 104°F (0° to 40°C)
	●  Operating humidity: 10% to 90% (noncondensing)
	●  Operating altitude test: 40˚C, 9843 ft.
System memory	●  1 GB DRAM
	●  256 MB flash
Input power requirements	●  AP1830: 44 to 57 VDC
	●  Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	●  15.4W
	Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.
Powering options	●  802.3af/802.3at
	●  Enhanced PoE
	●  Cisco local power supply, AIR-PWR-C=
	●  Cisco power injector, AIR-PWRINJ5= ( Note: This injector supports 802.3af only), AIR-PWRINJ6=
	Note: If 802.3af PoE is the source of power, the USB port is disabled.
Warranty	Limited lifetime hardware warranty
Compliance standards	◦  UL 60950-1
	◦  CAN/CSA-C22.2 No. 60950-1
	◦  UL 2043
	◦  IEC 60950-1
	◦  EN 60950-1
	●  Radio approvals:
	◦  FCC Part 15.247, 15.407**
	◦  RSS-210 (Canada)
	◦  EN 300.328, EN 301.893 (Europe)
	◦  ARIB-STD 66 (Japan)
	◦  ARIB-STD T71 (Japan)
	◦  EMI and susceptibility (Class B)
	◦  FCC Part 15.107 and 15.109**
	◦  ICES-003 (Canada)
	◦  VCCI (Japan)
	◦  EN 301.489-1 and -17 (Europe)
	●  IEEE standards:
	◦  IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
	◦  IEEE 802.11ac Draft 5
	●  Security:
	◦  802.11i, Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
	◦  802.1X
	◦  Advanced Encryption Standard (AES)
	●  Extensible Authentication Protocol (EAP) types:
	◦  EAP-Transport Layer Security (TLS)
	◦  EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
	◦  Protected EAP (PEAP) v0 or EAP-MSCHAPv2
	◦  EAP-Flexible Authentication via Secure Tunneling (FAST)
	◦  PEAP v1 or EAP-Generic Token Card (GTC)
	◦  EAP-Subscriber Identity Module (SIM)
	●  Multimedia:
	◦  Wi-Fi Multimedia (WMM)
	●  Other:
	◦  FCC Bulletin OET-65C
	◦  RSS-102
