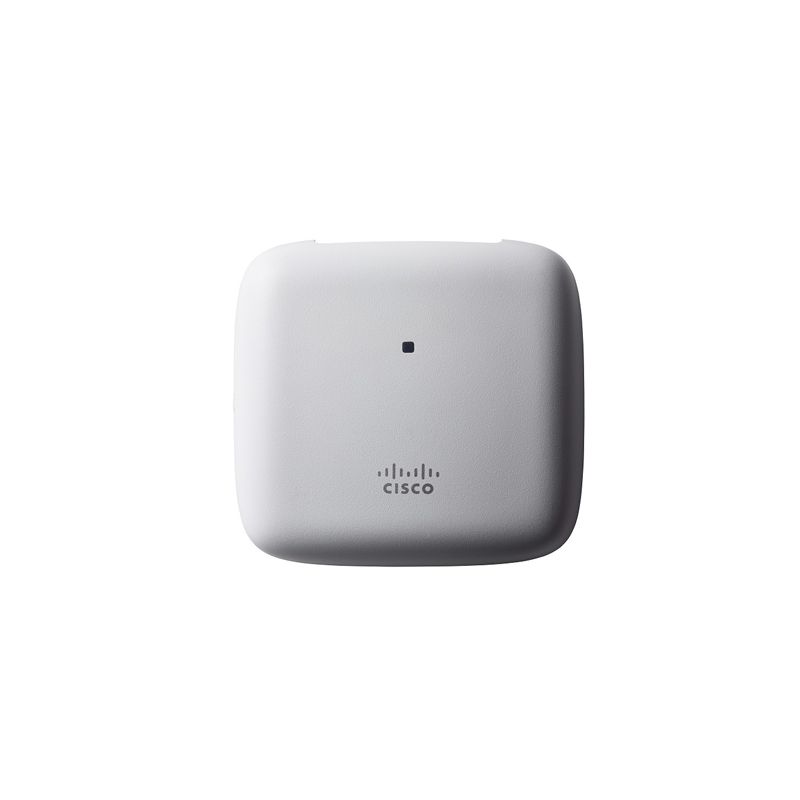

CISCO AIR-AP1815M-D-K9 Aironet 1815m Series Access Point

AIR-AP1815M-D-K9 Cisco Aironet 1815M WiFi 5 AP with Internal Antennas

Engineer Team Support

7*24h Online

763 412 7282
+86 010 69614620

AIR-AP1815M-D-K9 Buying Guide

AIR-AP1815M-D-K9 Cisco Aironet 1815M WiFi 5 AP with Internal Antennas is listed by YYST Global for buyers looking for CISCO Cisco Aironet 1815m Series Access Point. AIR-AP1815M-D-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 877.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.

Model: AIR-AP1815M-D-K9
Brand: CISCO
Category: Cisco Aironet 1815m Series Access Point
Condition: New Factory Sealed
Reference price: US$ 877.00

AIR-AP1815M-D-K9 Overview

AIR-AP1815M-D-K9 is a CISCO wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: AIR-AP1815M-D-K9 Cisco Aironet 1815M WiFi 5 AP with Internal Antennas. Category: Cisco Aironet 1815m Series Access Point. Condition: New Factory Sealed.

AIR-AP1815M-D-K9 Specification

Product Name	Cisco Aironet 1815m
Part Number	● AIR-AP1815m-x-K9: Cisco Aironet 1815m, Reg Domain x
Authentication and security	● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
	● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
	● 802.11r
	● 802.11i
Software	● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5.103/85CCO or later
	● Cisco Mobility Express
Supported WLAN controllers	● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers
	● Cisco Mobility Express
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	● 2 x 2 single-user/multiuser MIMO with two spatial streams
	● Maximal Ratio Combining (MRC)
	● 20-, 40-, and 80-MHz channels
	● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
	● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
	● 802.11 Dynamic Frequency Selection (DFS)
	● Cyclic Shift Diversity (CSD) support
Ethernet ports	● Authentication with 802.1X or MAC filtered
	● Dynamic VLAN or per port
	● Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability)	● Integrated Bluetooth 4.1 (including BLE) radio
	● Maximum transmit power: 4 dBm
	● Antenna gain: 2 dBi
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 GHz
	MCS Index1	GI2 = 800 ns				GI = 400 ns
		20-MHz Rate (Mbps)				20-MHz Rate (Mbps)
	0	6.5				7.2
	1	13				14.4
	2	19.5				21.7
	3	26				28.9
	4	39				43.3
	5	52				57.8
	6	58.5				65
	7	65				72.2
	8	13				14.4
	9	26				28.9
	10	39				43.3
	11	52				57.8
	12	78				86.7
	13	104				115.6
	14	117				130
	15	130				144.4
	802.11ac data rates on 5 GHz
	MCS Index	Spatial Streams		GI = 800 ns		GI = 400 ns
			20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)	20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)
	0	1	6.5	13.5	29.3	7.2	15	32.5
	1	1	13	27	58.5	14.4	30	65
	2	1	19.5	40.5	87.8	21.7	45	97.5
	3	1	26	54	117	28.9	60	130
	4	1	39	81	175.5	43.3	90	195
	5	1	52	108	234	57.8	120	260
	6	1	58.5	121.5	263.3	65	135	292.5
	7	1	65	135	292.5	72.2	150	325
	8	1	78	162	351	86.7	180	390
	9	1	–	180	390	–	200	433.3
	0	2	13	27	58.5	14.4	30	65
	1	2	26	54	117	28.9	60	130
	2	2	39	81	175.5	43.3	90	195
	3	2	52	108	234	57.8	120	260
	4	2	78	162	351	86.7	180	390
	5	2	104	216	468	115.6	240	520
	6	2	117	243	526.5	130	270	585
	7	2	130	270	585	144.4	300	650
	8	2	156	324	702	173.3	360	780
	9	2	–	360	780	–	400	866.7
Maximum number of non-overlapping channels	A (A regulatory domain):				K (K regulatory domain):
	● 2.412 to 2.462 GHz; 11 channels				● 2.412 to 2.472 GHz; 13 channels
	● 5.180 to 5.320 GHz; 8 channels				● 5.180 to 5.320 GHz; 8 channels
	● 5.500 to 5.700 GHz; 8 channels				● 5.500 to 5.620 GHz; 7 channels
	(excludes 5.600 to 5.640 GHz)				● 5.745 to 5.805 GHz; 4 channels
	● 5.745 to 5.825 GHz; 5 channels				N (N regulatory domain):
	B (B regulatory domain):				● 2.412 to 2.462 GHz; 11 channels
	● 2.412 to 2.462 GHz; 11 channels				● 5.180 to 5.320 GHz; 8 channels
	● 5.180 to 5.320 GHz; 8 channels				● 5.745 to 5.825 GHz; 5 channels
	● 5.500 to 5.720 GHz; 12 channels				Q (Q regulatory domain):
	● 5.745 to 5.825 GHz; 5 channels				● 2.412 to 2.472 GHz; 13 channels
	C (C regulatory domain):				● 5.180 to 5.320 GHz; 8 channels
	● 2.412 to 2.472 GHz; 13 channels				● 5.500 to 5.700 GHz; 11 channels
	● 5.745 to 5.825 GHz; 5 channels				R (R regulatory domain):
	D (D regulatory domain):				● 2.412 to 2.472 GHz; 13 channels
	● 2.412 to 2.462 GHz; 11 channels				● 5.180 to 5.320 GHz; 8 channels
	● 5.180 to 5.320 GHz; 8 channels				● 5.660 to 5.700 GHz; 3 channels
	● 5.745 to 5.825 GHz; 5 channels				● 5.745 to 5.805 GHz; 4 channels
	E (E regulatory domain):				S (S regulatory domain):
	● 2.412 to 2.472 GHz; 13 channels				● 2.412 to 2.472 GHz; 13 channels
	● 5.180 to 5.320 GHz; 8 channels				● 5.180 to 5.320 GHz; 8 channels
	● 5.500 to 5.700 GHz; 8 channels				● 5.500 to 5.700 GHz; 11 channels
	(excludes 5.600 to 5.640 GHz)				● 5.745 to 5.825 GHz; 5 channels
	F (F regulatory domain):				T (T regulatory domain):
	● 2.412 to 2.472 GHz; 13 channels				● 2.412 to 2.462 GHz; 11 channels
	● 5.250 to 5.350 GHz; 4 channels				● 5.280 to 5.320 GHz; 3 channels
	● 5.725 to 5.825 GHz; 4 channels				● 5.500 to 5.700 GHz; 8 channels
	G (G regulatory domain):				(excludes 5.600 to 5.640 GHz)
	● 2.412 to 2.472 GHz; 13 channels				● 5.745 to 5.825 GHz; 5 channels
	● 5.745 to 5.865 GHz; 7 channels				Z (Z regulatory domain):
	H (H regulatory domain):				● 2.412 to 2.462 GHz; 11 channels
	● 2.412 to 2.472 GHz; 13 channels				● 5.180 to 5.320 GHz; 8 channels
	● 5.180 to 5.320 GHz; 8 channels				● 5.500 to 5.700 GHz; 8 channels
	● 5.745 to 5.825 GHz; 5 channels				(excludes 5.600 to 5.640 GHz)
	I (I regulatory domain):				● 5.745 to 5.825 GHz; 5 channels
	● 2.412 to 2.472 GHz; 13 channels
	● 5.180 to 5.320 GHz; 8 channels
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Available transmit power settings	2.4 GHz				5 GHz
	27 dBm (500 mW)				24 dBm (250 mW)
	24 dBm (250 mW)				21 dBm (125 mW)
	21 dBm (125 mW)				18 dBm (63 mW)
	18 dBm (63 mW)				15 dBm (32 mW)
	15 dBm (32 mW)				12 dBm (16 mW)
	12 dBm (16 mW)				9 dBm (8 mW)
	9 dBm (8 mW)				6 dBm (4 mW)
	6 dBm (4 mW)				3 dBm (2 mW)
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antennas	● 2.4 GHz, gain 2 dBi
	● 5 GHz, gain 4 dBi
Interfaces	● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
	● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33mm)
Weight	● Access point without mounting bracket or any other accessories: 1.01 lb (460 grams)
Environmental	● Operating
	◦ Temperature: 32° to 104°F (0° to 40°C)
	◦ Humidity: 10% to 90% (noncondensing)
	◦ Max. altitude: 9,843 ft (3,000m) @ 40’C
	● Nonoperating (storage and transportation)
	◦ Temperature: –22° to 158°F (–30° to 70°C)
	◦ Humidity: 10% to 90% (noncondensing)
	◦ Max. altitude: 15,000 ft (4,500m) @ 25’C
System	● 1-GB DRAM
	● 256-MB flash memory
	● 710-MHz quad-core
Input power requirements	● 802.3af or 802.3at power
Powering options	● 802.3af/at Ethernet switch
	● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	● Max power draw is 13.9W with 100 meters Category 5 cable
Physical security	● Torx security screw, included with the access point
Mounting	● Included with the access point: mounting bracket AIR-AP-BRACKET-8
Accessories	● Mounting bracket: AIR-AP-BRACKET-8= (available as spare)
	● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
Compliance	● Safety:
	◦ UL 60950-1
	◦ CAN/CSA-C22.2 No. 60950-1
	◦ UL 2043
	◦ IEC 60950-1
	◦ EN 60950-1
	● Radio approvals:
	◦ FCC Part 15.247, 15.407
	◦ RSS-247 (Canada)
	◦ EN 300.328, EN 301.893 (Europe)
	◦ ARIB-STD 66 (Japan)
	◦ ARIB-STD T71 (Japan)
	◦ EMI and susceptibility (Class B)
	◦ FCC Part 15.107 and 15.109
	◦ ICES-003 (Canada)
	◦ VCCI (Japan)
	◦ EN 301.489-1 and -17 (Europe)
	◦ EN 50385
	● IEEE standards:
	◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
	◦ IEEE 802.11ac
	● Security:
	◦ 802.11i, WPA3, WPA2, WPA
	◦ 802.1X
	◦ AES
	● Extensible Authentication Protocol (EAP) types:
	◦ EAP-Transport Layer Security (TLS)
	◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
	◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2
	◦ EAP-Flexible Authentication via Secure Tunneling (FAST)
	◦ PEAP v1 or EAP-Generic Token Card (EAP-GTC)
	◦ EAP-Subscriber Identity Module (EAP-SIM)
	● Multimedia:
	◦ Wi-Fi Multimedia (WMM)
	● Other:
	◦ FCC Bulletin OET-65C
	◦ RSS-102
1 MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, modulation, coding rate, and data rate values.
2 A Guard Interval (GI) between symbols helps receivers overcome the effects of multipath delay spreads.
Table 3. RF specifications

Transmit power and receive sensitivity (1815 m)
	Spatial Streams	2.4-GHz Radio		5-GHz Radio
	Spatial Streams	Total TX Power (dBm)	RX Sensitivity (dBm)	Total TX Power (dBm)	RX Sensitivity (dBm)
802.11/11b
1 Mbps	1	27	–100	–	–
11 Mbps	1	27	–91	–	–
802.11a/g
6 Mbps	1	27	–95	24	–93
24 Mbps	1	27	–89	24	–86
54 Mbps	1	25	–79	24	–77
802.11n HT20
MSC0	1	27	–94	24	–92
MSC4	1	27	–84	24	–81
MSC7	1	25	–76	23	–74
MSC8	2	27	–93	24	–91
MSC12	2	27	–82	24	–79
MSC15	2	25	–74	23	–72
802.11n HT40
MCS0	1			24	–89
MCS4	1			24	–78
MCS7	1			23	–71
MCS8	2			24	–88
MCS12	2			24	–76
MCS15	2			23	–69
802.11ac VHT20
MCS0	1			24	–92
MCS4	1			24	–81
MCS7	1			21	–74
MCS8	1			20	–70
MCS0	2			24	–91
MCS4	2			24	–79
MCS7	2			21	–72
MCS8	2			20	–68
802.11ac VHT40
MCS0	1			24	–89
MCS4	1			24	–78
MCS7	1			21	–71
MCS8	1			20	–67
MCS9	1			20	–65
MCS0	2			24	–88
MCS4	2			24	–76
MCS7	2			21	–69
MCS8	2			20	–65
MCS9	2			20	–63
802.11ac VHT80
MCS0	1			24	–86
MCS4	1			23	–75
MCS7	1			21	–68
MCS8	1			20	–64
MCS9	1			20	–61
MCS0	2			24	–85
MCS4	2			23	–73
MCS7	2			21	–66
MCS8	2			20	–62
MCS9	2			20	–59
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

AIR-AP1815M-D-K9 Ordering Information

This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.

AIR-AP1815M-D-K9 FAQ

What is AIR-AP1815M-D-K9 used for?

AIR-AP1815M-D-K9 Cisco Aironet 1815M WiFi 5 AP with Internal Antennas is a CISCO accessory or component in the Cisco Aironet 1815m Series Access Point category. It may require a compatible main device and should not be treated as a complete standalone system.

Which products are compatible with AIR-AP1815M-D-K9?

Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.

What is included with AIR-AP1815M-D-K9?

Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.

What is the price of AIR-AP1815M-D-K9?

The current reference price for AIR-AP1815M-D-K9 is US$ 877.00. Final pricing can change based on stock, quantity, configuration and delivery destination.

Related AIR-AP1815M-D-K9

AIR-AP1815M-A-K9

AIR-AP1815M-A-K9 Cisco Aironet 1815M 802.11ac Wave 2 Access Point

AIR-AP1815M-A-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-S-K9

AIR-AP1815M-S-K9 Cisco Aironet 1815M 802.11ac Wave 1 Access Point

AIR-AP1815M-S-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-K-K9C

AIR-AP1815M-K-K9C Cisco Aironet 1815M Mobility Express Dual-radio AP

AIR-AP1815M-K-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-K-K9

AIR-AP1815M-K-K9 Cisco Aironet 1815M 802.11ac Wave 1 and Wave 2 AP

AIR-AP1815M-K-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-H-K9C

AIR-AP1815M-H-K9C Cisco Aironet 1815M Mobility Express Dual-band AP

AIR-AP1815M-H-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-H-K9

AIR-AP1815M-H-K9 Cisco Aironet 1815M Dual- band Access Point

AIR-AP1815M-H-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-E-K9

AIR-AP1815M-E-K9 Cisco Aironet 1815M 2x2:2 SS MU-MIMO Access Point

AIR-AP1815M-E-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point

AIR-AP1815M-B-K9C

AIR-AP1815M-B-K9C Cisco Aironet 1815M Mobility Express WiFi 5 AP

AIR-AP1815M-B-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815m Series Access Point
