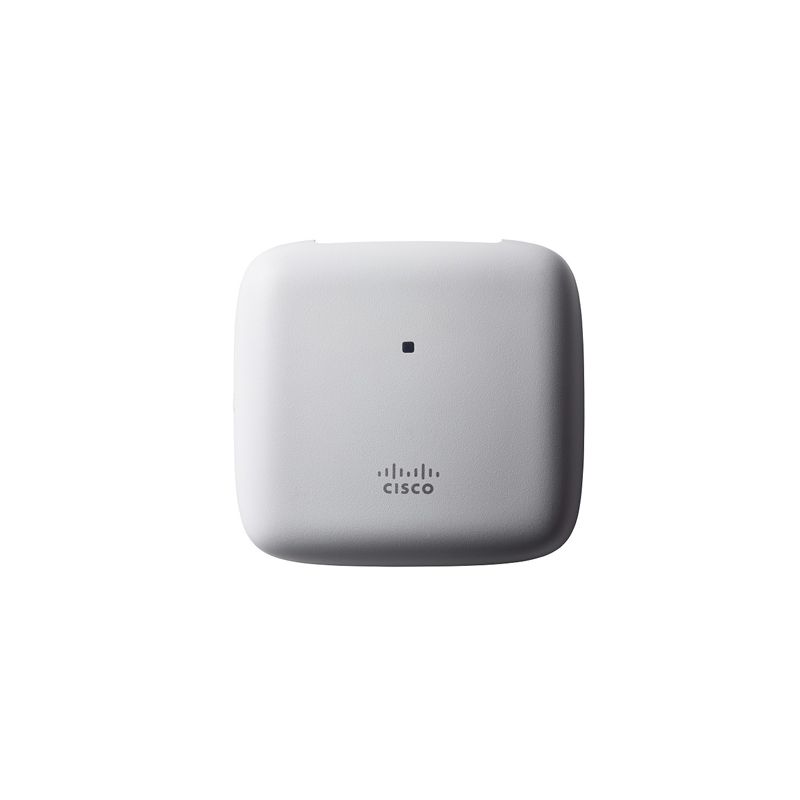

CISCO AIR-AP1815I-R-K9C Aironet 1815i Access Points

AIR-AP1815I-R-K9C Cisco 1815I 802.11ac, Wave 2 Mobility Express AP

Engineer Team Support

7*24h Online

763 412 7282
+86 010 69614620

AIR-AP1815I-R-K9C Buying Guide

AIR-AP1815I-R-K9C Cisco 1815I 802.11ac, Wave 2 Mobility Express AP is listed by YYST Global for buyers looking for CISCO Cisco Aironet 1815i Access Points. AIR-AP1815I-R-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 674.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.

Model: AIR-AP1815I-R-K9C
Brand: CISCO
Category: Cisco Aironet 1815i Access Points
Condition: New Factory Sealed
Reference price: US$ 674.00

AIR-AP1815I-R-K9C Overview

AIR-AP1815I-R-K9C is a CISCO wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: AIR-AP1815I-R-K9C Cisco 1815I 802.11ac, Wave 2 Mobility Express AP. Category: Cisco Aironet 1815i Access Points. Condition: New Factory Sealed.

AIR-AP1815I-R-K9C Specification

Datasheet series	Cisco Catalyst 9100 Access Points
Exact model	AIR-AP1815I-R-K9C
Wireless role	Enterprise indoor/outdoor access point; confirm antenna, regulatory domain and mounting requirement
Wireless generation	Enterprise wireless access point family
Power requirement	Confirm PoE standard, injector or power adapter requirement before purchase
Deployment check	Confirm controller/cloud management compatibility, country domain, mounting kit and license requirement
Procurement validation	Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase
Official datasheet	Cisco Catalyst wireless access points official product page

Product Name	Cisco Aironet 1815i
Part Number	AIR-AP1815i-x-K9C: Dual-band 802.11a/g/n/ac Wave 2 with default software Mobility Express ◦ Regulatory domains: (x = regulatory domain) ◦ For Mobility Express, part number AIR-AP1815i-x-K9C offers default software option Mobility Express
Authentication and security	● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
	● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
	● 802.11r
	● 802.11i
Software	● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.3.112.0/83MR1 or later
	● Cisco Mobility Express
Supported WLAN controllers	● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers.
	● Cisco Mobility Express
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	● 2x2 single-user/multiuser MIMO with two spatial streams
	● Maximal Ratio Combining (MRC)
	● 20-, 40- and 80-MHz channels
	● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
	● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
	● 802.11 Dynamic Frequency Selection (DFS)
	● Cyclic Shift Diversity (CSD) support
Ethernet ports	● Authentication with 802.1X or MAC filtered
	● Dynamic VLAN or per port
	● Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability)	● Integrated Bluetooth 4.1 (including BLE) radio
	● Maximum transmit power: 4 dBm
	● Antenna gain: 2 dBi
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
	802.11n data rates on 2.4 GHz:
	MCS Index1			GI2 = 800 ns		GI = 400 ns
				20-MHz Rate (Mbps)		20-MHz Rate (Mbps)
	0			6.5		7.2
	1			13		14.4
	2			19.5		21.7
	3			26		28.9
	4			39		43.3
	5			52		57.8
	6			58.5		65
	7			65		72.2
	8			13		14.4
	9			26		28.9
	10			39		43.3
	11			52		57.8
	12			78		86.7
	13			104		115.6
	14			117		130
	15			130		144.4
	802.11ac data rates on 5 GHz:
	MCS Index	Spatial Streams		GI = 800 ns		GI = 400 ns
			20-MHz	40-MHz	80-MHz	20-MHz	40-MHz	80-MHz
			Rate	Rate	Rate	Rate	Rate (Mbps)	Rate
			(Mbps)	(Mbps)	(Mbps)	(Mbps)		(Mbps)
	1		6.5	13.5	29.3	7.2	15	32.5
	1		13	27	58.5	14.4	30	65
	1		19.5	40.5	87.8	21.7	45	97.5
	1		26	54	117	28.9	60	130
	1		39	81	175.5	43.3	90	195
	1		52	108	234	57.8	120	260
	1		58.5	121.5	263.3	65	135	292.5
	1		65	135	292.5	72.2	150	325
	1		78	162	351	86.7	180	390
	1		–	180	390	–	200	433.3
	2		13	27	58.5	14.4	30	65
	2		26	54	117	28.9	60	130
	2		39	81	175.5	43.3	90	195
	2		52	108	234	57.8	120	260
	2		78	162	351	86.7	180	390
	2		104	216	468	115.6	240	520
	2		117	243	526.5	130	270	585
	2		130	270	585	144.4	300	650
	2		156	324	702	173.3	360	780
	2		–	360	780	–	400	866.7
Maximum number of non-overlapping channels	A (A regulatory domain):					K (K regulatory domain):
	● 2.412 to 2.462 GHz; 11 channels					● 2.412 to 2.472 GHz; 13 channels
	● 5.180 to 5.320 GHz; 8 channels					● 5.180 to 5.320 GHz; 8 channels
	● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)					● 5.500 to 5.620 GHz; 7 channels
	● 5.745 to 5.825 GHz; 5 channels					● 5.745 to 5.805 GHz; 4 channels
	B (B regulatory domain):					N (N regulatory domain):
	● 2.412 to 2.462 GHz; 11 channels					● 2.412 to 2.462 GHz; 11 channels
	● 5.180 to 5.320 GHz; 8 channels					● 5.180 to 5.320 GHz; 8 channels
	● 5.500 to 5.720 GHz; 12 channels					● 5.745 to 5.825 GHz; 5 channels
	● 5.745 to 5.825 GHz; 5 channels					Q (Q regulatory domain):
	C (C regulatory domain):					● 2.412 to 2.472 GHz; 13 channels
	● 2.412 to 2.472 GHz; 13 channels					● 5.180 to 5.320 GHz; 8 channels
	● 5.745 to 5.825 GHz; 5 channels					● 5.500 to 5.700 GHz; 11 channels
	D (D regulatory domain):					R (R regulatory domain):
	● 2.412 to 2.462 GHz; 11 channels					● 2.412 to 2.472 GHz; 13 channels
	● 5.180 to 5.320 GHz; 8 channels					● 5.180 to 5.320 GHz; 8 channels
	● 5.745 to 5.825 GHz; 5 channels					● 5.660 to 5.700 GHz; 3 channels
	E (E regulatory domain):					● 5.745 to 5.805 GHz; 4 channels
	● 2.412 to 2.472 GHz; 13 channels					S (S regulatory domain):
	● 5.180 to 5.320 GHz; 8 channels					● 2.412 to 2.472 GHz; 13 channels
	● 5.500 to 5.700 GHz; 8 channels					● 5.180 to 5.320 GHz; 8 channels
	(excludes 5.600 to 5.640 GHz)					● 5.500 to 5.700 GHz; 11 channels
	F (F regulatory domain):					● 5.745 to 5.825 GHz; 5 channels
	● 2.412 to 2.472 GHz; 13 channels					T (T regulatory domain):
	● 5.250 to 5.350 GHz; 4 channels					● 2.412 to 2.462 GHz; 11 channels
	● 5.725 to 5.825 GHz; 4 channels					● 5.280 to 5.320 GHz; 3 channels
	G (G regulatory domain):					● 5.500 to 5.700 GHz; 8 channels
	● 2.412 to 2.472 GHz; 13 channels					(excludes 5.600 to 5.640 GHz)
	● 5.745 to 5.865 GHz; 7 channels					● 5.745 to 5.825 GHz; 5 channels
	H (H regulatory domain):					Z (Z regulatory domain):
	● 2.412 to 2.472 GHz; 13 channels					● 2.412 to 2.462 GHz; 11 channels
	● 5.180 to 5.320 GHz; 8 channels					● 5.180 to 5.320 GHz; 8 channels
	● 5.745 to 5.825 GHz; 5 channels					● 5.500 to 5.700 GHz; 8 channels
	I (I regulatory domain):					(excludes 5.600 to 5.640 GHz)
	● 2.412 to 2.472 GHz; 13 channels					● 5.745 to 5.825 GHz; 5 channels
	● 5.180 to 5.320 GHz; 8 channels
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Available transmit power settings	2.4 GHz					5 GHz
	20 dBm (100 mW)					20 dBm (100 mW)
	17 dBm (50 mW)					17 dBm (50 mW)
	14 dBm (25 mW)					14 dBm (25 mW)
	11 dBm (12.5 mW)					11 dBm (12.5 mW)
	8 dBm (6.25 mW)					8 dBm (6.25 mW)
	5 dBm (3.13 mW)					5 dBm (3.13 mW)
	2 dBm (1.56 mW)					2 dBm (1.56 mW)
	-1 dBm (0.78 mW)					-1 dBm (0.78mW)
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antennas	● 2.4 GHz, gain 2 dBi
	● 5 GHz, gain 4 dBi
Interfaces	● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
	● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Weight	● Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental	● Operating
	◦ Temperature: 32° to 104°F (0° to 40°C)
	◦ Humidity: 10% to 90% (noncondensing)
	◦ Max. altitude: 9843 ft (3000 m) @ 40°C
	● Nonoperating (storage and transportation)
	◦ Temperature: -22° to 158°F (-30° to 70°C)
	◦ Humidity: 10% to 90% (noncondensing)
	◦ Max. altitude: 15,000 ft (4500 m) @ 25°C
System	● 1 GB DRAM
	● 256 MB flash
	● 710 MHz quad core
Input power requirements	● Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Powering options	● 802.3af/at Ethernet switch
	● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	● 8.3W (maximum, on PoE)
Physical security	● Torx security screw, included with the access point
Mounting	● Included with the access point: mounting bracket AIR-AP-BRACKET8
Accessories	● Mounting bracket: AIR-AP-BRACKET8= (available as spare)
	● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
Compliance	● Safety:
	◦ UL 60950-1
	◦ CAN/CSA-C22.2 No. 60950-1
	◦ UL 2043
	◦ IEC 60950-1
	◦ EN 60950-1
	◦ EN 60601-1-2
	● Radio approvals:
	◦ FCC Part 15.247, 15.407
	◦ RSS-247 (Canada)
	◦ EN 300.328, EN 301.893 (Europe)
	◦ ARIB-STD 66 (Japan)
	◦ ARIB-STD T71 (Japan)
	◦ EMI and susceptibility (Class B)
	◦ FCC Part 15.107 and 15.109
	◦ ICES-003 (Canada)
	◦ VCCI (Japan)
	◦ EN 301.489-1 and -17 (Europe)
	◦ EN 50385
	● IEEE standards:
	◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
	◦ IEEE 802.11ac
	● Security:
	◦ 802.11i, WPA3, WPA2, WPA
	◦ 802.1X
	◦ AES
	● Extensible Authentication Protocol (EAP) types:
	◦ EAP-Transport Layer Security (TLS)
	◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
	◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2
	◦ EAP-Flexible Authentication via Secure Tunneling (FAST)
	◦ PEAP v1 or EAP-Generic Token Card (GTC)
	◦ EAP-Subscriber Identity Module (SIM)
	● Multimedia:
	◦ Wi-Fi Multimedia (WMM)
	● Other:
	◦ FCC Bulletin OET-65C
	◦ RSS-102
1 MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.
2 A Guard Interval (GI) between symbols helps receivers overcome the effects of multipath delay spreads.

Transmit power and receive sensitivity (1815i)
			2.4-GHz Radio	5-GHz Radio
	Spatial Streams	Total TX Power (dBm)	RX Sensitivity (dBm)	Total TX Power (dBm)	RX Sensitivity (dBm)
802.11/11b
1 Mbps	1	17	-98	NA	NA
11 Mbps	1	17	-89	NA	NA
802.11a/g
6 Mbps	1	20	-94	17	-94
24 Mbps	1	20	-87	20	-87
54 Mbps	1	20	-78	18	-78
802.11n HT20
MSC0	1	20	-93	20	-93
MSC4	1	20	-83	18	-82
MSC7	1	20	-75	16	-75
MSC8	2	20	-90	20	-90
MSC12	2	20	-80	18	-79
MSC15	2	20	-72	16	-72
802.11n HT40
MSC0	1			20	-90
MSC4	1			18	-79
MSC7	1			16	-72
MSC8	2			20	-87
MSC12	2			18	-76
MSC15	2			16	-69
802.11ac VHT20
MSC0	1			20	-93
MSC4	1			18	-82
MSC7	1			16	-75
MSC8	1			15	-71
MSC0	2			20	-90
MSC4	2			18	-79
MSC7	2			16	-72
MSC8	2			15	-68
802.11ac VHT40
MSC0	1			20	-90
MSC4	1			18	-79
MSC7	1			16	-72
MSC8	1			15	-68
MSC9	1			15	-66
MSC0	2			20	-87
MSC4	2			18	-76
MSC7	2			16	-69
MSC8	2			15	-65
MSC9	2			15	-63
802.11ac VHT80
MSC0	1			20	-87
MSC4	1			18	-77
MSC7	1			16	-69
MSC8	1			15	-65
MSC9	1			15	-63
MSC0	2			20	-84
MSC4	2			18	-74
MSC7	2			16	-66
MSC8	2			15	-62
MSC9	2			15	-60
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

AIR-AP1815I-R-K9C Warranty

	Low Price Guarantee Customers can get high quality products at wholesale prices		Quality Assurance All products sold are original genuine goods, new packaging unopened
	Free CCIE Expert Technical Support We provide our customers with free CCIE technical support via phone, intelligent AI and email		Commodity Refund Guarantee For equipment purchased from us, please contact our customer service team for return and replacement services
	Diversified and Flexible Transportation Services Cargo carriers include FedEx, DHL, UPS, Aramex, TNT, EMS		Standard Policy 1 Year

AIR-AP1815I-R-K9C FAQ

What is AIR-AP1815I-R-K9C?

AIR-AP1815I-R-K9C Cisco 1815I 802.11ac, Wave 2 Mobility Express AP is a CISCO Cisco Aironet 1815i Access Points product supplied by YYST Global for enterprise IT procurement and infrastructure projects.

What is the datasheet series of AIR-AP1815I-R-K9C?

The listed datasheet series for AIR-AP1815I-R-K9C is Cisco Catalyst 9100 Access Points. Confirm the exact SKU and hardware revision against the project requirement before ordering.

What is the exact model of AIR-AP1815I-R-K9C?

The listed exact model for AIR-AP1815I-R-K9C is AIR-AP1815I-R-K9C. Confirm the exact SKU and hardware revision against the project requirement before ordering.

Is AIR-AP1815I-R-K9C available from YYST Global?

YYST Global can help check availability, lead time and configuration for AIR-AP1815I-R-K9C. Contact the sales team before ordering to confirm current stock.

What is the price of AIR-AP1815I-R-K9C?

The current reference price for AIR-AP1815I-R-K9C is US$ 674.00. Final pricing can change based on stock, quantity, configuration and delivery destination.

Related AIR-AP1815I-R-K9C

AIR-AP1815T-H-K9

AIR-AP1815T-H-K9 Cisco Aironet 1815T Dual-radio OfficeExtend AP

AIR-AP1815T-H-K9 Cisco Cisco Aironet 1815i Access Points supplied by YYST Global. Contact us to confirm stock, lead time, warranty, condition and global shipping options.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-I-K9

AIR-AP1815I-I-K9 Cisco Aironet 1815I 802.11ac Bluetooth 4.1 AP

AIR-AP1815I-I-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-A-K9C

AIR-AP1815I-A-K9C Cisco Aironet 1815I WiFi 5 AP with Mobility Express

AIR-AP1815I-A-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-A-K9

AIR-AP1815I-A-K9 Cisco Aironet 1815I 802.11ac Wave 2 Access Point

AIR-AP1815I-A-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-N-K9

AIR-AP1815I-N-K9 Cisco Aironet 1815I WiFi 5 Wave 2 Access Point

AIR-AP1815I-N-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-I-K9C

AIR-AP1815I-I-K9C Cisco Aironet 1815I 802.11ac Wave 2 Access Point

AIR-AP1815I-I-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-B-K9

AIR-AP1815I-B-K9 Cisco Aironet 1815I 2x2:2 MU-MIMO WiFi 5 AP

AIR-AP1815I-B-K9 CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points

AIR-AP1815I-Z-K9C

AIR-AP1815I-Z-K9C Cisco 1815I SS MU-MIMO AP with Mobility Express

AIR-AP1815I-Z-K9C CISCO wireless networking hardware for campus WLAN projects. Contact YYST Global for stock, lead time and quote support.

CISCO Cisco Aironet 1815i Access Points
