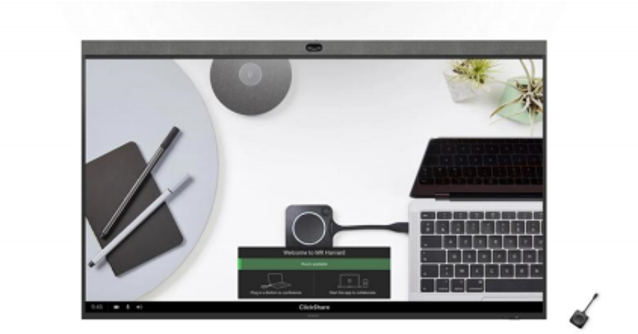

Barco ClickShare X-Display Plus 86” Wireless
- 763 412 7282
- +86 010 69614620
ClickShare X-Display Plus 86” Buying Guide
ClickShare X-Display Plus 86”Wireless Integrated Solution for Meetings is listed by YYST Global for buyers looking for Barco Barco Wireless. ClickShare X-Display Plus 86” Barco wireless networking hardware. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 5,500.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: ClickShare X-Display Plus 86”
- Brand: Barco
- Category: Barco Wireless
- Condition: New Factory Sealed
- Reference price: US$ 5,500.00
ClickShare X-Display Plus 86” Overview
ClickShare X-Display Plus 86” is a Barco wireless networking hardware listed by YYST Global for campus WLAN expansion, controller replacement, access point rollout and wireless refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: ClickShare X-Display Plus 86”Wireless Integrated Solution for Meetings. Category: Barco Wireless. Condition: New Factory Sealed.
ClickShare X-Display Plus 86” Specification
| Datasheet series | Barco ClickShare Collaboration Systems |
| Exact model | CLICKSHAREX-DISPLAYPLUS86” |
| Product role | Wireless presentation or conferencing collaboration system; confirm room type, button/app support and display connectivity |
| Deployment check | Confirm firmware, conferencing peripheral compatibility, network/security settings and regional power accessories |
| Procurement check | Confirm exact bundle, buttons, accessories, condition, warranty and lead time |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Barco ClickShare official product page |
| Product specifications CLICKSHARE X-DISPLAY PLUS 86” | |||||
| Display | |||||
| Size | 86-inch | ||||
| Type | LCD | ||||
| Resolution | 4K UHD (3840*2160) | ||||
| Contrast ratio | 1200Ⅱ1 | ||||
| Brightness | 400 cd/m2 ⅡtypicalⅡ | ||||
| Color gamut | 94% P3ⅡtypicalⅡ | ||||
| Color accuracy | ⅡE | ||||
| Backlight type | D-LED | ||||
| Panel | • Anti-glare • Anti-ambient light interference, Clearer display |
||||
| Refresh Rate | 60Hz | ||||
| Camera | |||||
| Pixels | 50 MP | ||||
| Sensor source | SONY | ||||
| Resolution | 4K, 1080p, 720p at 30fps | ||||
| FOV | 99° | ||||
| Pixel size | 1.0 um | ||||
| ZOOM | 5x digital zoom | ||||
| WDR | Yes | ||||
| Distortion correction | Yes | ||||
| Lens cap | Manual slide cover | ||||
| AI function | |||||
| Group Framing | Yes | ||||
| Composition mode | YesⅡup to 8 peopleⅡ | ||||
| Speaker framing | Yes | ||||
| Intelligent tracking | YesⅡSpeaker framing with panoramic viewⅡ | ||||
| AI soundscreen | YesⅡ30º/60º/90º/180º -4 level availableⅡ | ||||
| Speaker AI adaptive | Yes ⅡAccording to the different acoustic
environment of the meeting space, the sound effect of the Speaker is automatically adjusted to fit the current meeting spaceⅡ |
||||
| Microphone | |||||
| Quantity | 16 beamforming MEMS microphones | ||||
| Hardware accelerated audio processing | Yes | ||||
| Pickup distance | up to 12 meters | ||||
| Sound pickup angle | 180° | ||||
| Echo cancellation | Yes | ||||
| Noise suppression | YesⅡMore than 300 types of noise can be suppressedⅡ | ||||
| Automatic gain control | Yes | ||||
| Dereverberation | Yes | ||||
| Speaker | |||||
| Channel | 2.1 Channel stereo | ||||
| Quantity | 5 Speaker units (separate bass speakers) | ||||
| Frequency Domain | 60 Hz to 20KHz | ||||
| Output Power | 2x15W+20W | ||||
| Position | Top | ||||
| General specifications | |||||
| Dimensions (W*D*H) | 1932*82.5*1175mm | ||||
| Weight | 62.3 kgⅡgross weightⅡ 47 kgⅡnet weightⅡ | ||||
| Expansion capability | |||||
| Support extend Microphone (Cascade mode) | YesⅡup to 4 ClickShare Wireless SpeakerphoneⅡ | ||||
| Third-party USB peripherals | Yes | ||||
| OPS | CX-MⅡincludedⅡ | ||||
| Connections | |||||
| HDMI IN | 2ⅡHDMI 2.0Ⅱ | ||||
| HDMI OUT | 1Ⅱ1080p / 2160pⅡ | ||||
| USB-C (front) | 1ⅡfrontⅡ | ||||
| USB-C (board) | 1ⅡboardⅡ | ||||
| USB-B (2.0) | 1 | ||||
| USB-A (3.0) | 2 | ||||
| USB-A (2.0) | 1Ⅱonly for X-Display upgradingⅡ | ||||
| RJ45 (MIC IN) | 1Ⅱconnect to ClickShare Wireless SpeakerphoneⅡ | ||||
| Audio Out | 1ⅡSPDIFⅡ | ||||
| RS232 | 1ⅡDB9, 1Ⅱ | ||||
| RJ45 (1Gbps) 2ⅡEthernetⅡ | |||||
| Accessories | |||||
| Cable | Power cord x 1 | ||||
| Remote control | 1 | ||||
| Wall-mounted bracket | Yes | ||||
| Floor stand | Optional | ||||
| Storage Box | Yes | ||||
| Type-C Cable | Yes | ||||
| Power | |||||
| Power Supply | AC100 to 240V, 50/60Hz | ||||
| Power Cord | China, length 3Meters | ||||
| Max Operating Power Consumption | < 320W | ||||
| Max Standby Power Consumption | < 0.5W | ||||
| Environment | |||||
| Operation Temperature | 0°C~40°C | ||||
| Operation Humidity | 10% ~ 90% RH | ||||
| Storage Humidity | 10% ~ 90% RH | ||||
| Storage Temperature | -20°C~60°C | ||||
| Altitude | Ⅱ 5000metres | ||||
| Compliance | |||||
| EMC/Saftey | CCC/CE | ||||
| Energy | China Energy LabelⅡⅡ2Ⅱ | ||||
| RoHS | China RoHS | ||||
| CX-M Specifications | |||||
| Video Outputs | 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b(OPS 80pins connector) or USB-C DisplayPort 1.2 | ||||
| Audio output | USB | ||||
| USB | 1 X USB-C | ||||
| ClickShare Buttons | 1 | ||||
| ClickShare App | Desktop & Mobile | ||||
| Native protocols | Airplay, Google Cast, Miracast | ||||
| Maximum sources simultaneously on screen | 2 | ||||
| Noise Level | Max. 25dBA @ 0-30°C Max. 30dBA @ 30-50°C |
||||
| Authentication protocol | WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode |
||||
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 | ||||
| Reach | Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit | ||||
| Frequency band | 2.4 GHZ and 5 GHz | ||||
| Connections | 1x Ethernet LAN 1Gbit 1x USB-C 3.0 (front)br> 1x OPS-80 pin |
||||
| Temperature range | Operating: 0°C to +40°C (+32°F to
+104°F) Max: 40°C (104°F) at 5000m Storage: -20°C to +60°C (-4°F to +140°F) |
||||
| Humidity | Storage: 0 to 90% relative humidity,
non-condensing Operation: 0 to 85% relative humidity, non-condensing |
||||
| Anti-theft system | NA | ||||
| Certifications | SRRC/CE | ||||
| Touch screen support & Interactivity | Yes | ||||
| Local view | Yes | ||||
| Wireless conferencing | via App or Button | ||||
| Network connection | LAN & WiFi | ||||
| Management and reporting | Yes | ||||
| Warranty | 1 year standard. 5 years coverage upon registering via SmartCare | ||||
| Dimensions (H×W×D) | 202mm x 119mm x 30mm | ||||
| Power consumptions | Operational: 5-10W, 16W Max | ||||
| Power Supply | 18V DC from OPS display | ||||
| Weight | 698g | ||||
ClickShare X-Display Plus 86” Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
ClickShare X-Display Plus 86” FAQ
What is ClickShare X-Display Plus 86”?
ClickShare X-Display Plus 86”Wireless Integrated Solution for Meetings is a Barco Barco Wireless product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of ClickShare X-Display Plus 86”?
The listed datasheet series for ClickShare X-Display Plus 86” is Barco ClickShare Collaboration Systems. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of ClickShare X-Display Plus 86”?
The listed exact model for ClickShare X-Display Plus 86” is CLICKSHAREX-DISPLAYPLUS86”. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is ClickShare X-Display Plus 86” available from YYST Global?
YYST Global can help check availability, lead time and configuration for ClickShare X-Display Plus 86”. Contact the sales team before ordering to confirm current stock.
What is the price of ClickShare X-Display Plus 86”?
The current reference price for ClickShare X-Display Plus 86” is US$ 5,500.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
