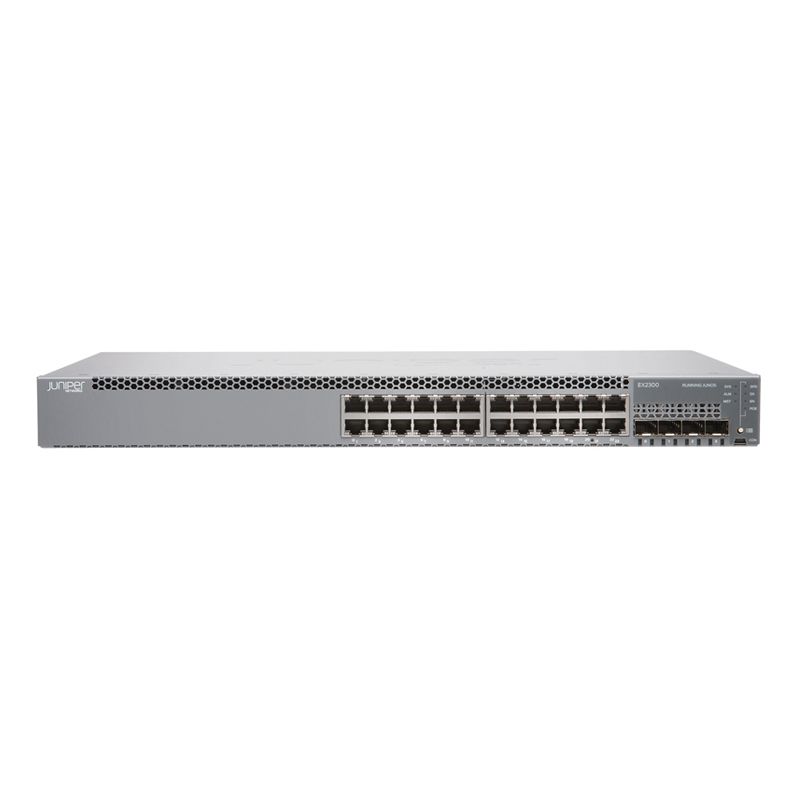

JUNIPER EX2300-24P-TAA EX2300 Series Ethernet Switches

EX2300-24P-TAA is a JUNIPER enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: EX2300-24P-TAA Juniper EX2300 Ethernet Switch. Category: Juniper EX2300 Series Ethernet Switches. Condition: New Factory Sealed.

Max. System Power Consumption (Input Power without PoE)	80 W AC
Total PoE Power Budget	370 W
Width	17.4 in (44.19 cm) for desktop installations
	17.5 in (44.6 cm) with rack-mount brackets
Height	1.75 in (4.45 cm) for 1U installations
Depth	12.2 in (30.98 cm)
Backplane	80 Gbps Virtual Chassis interconnect to link up to four switches as a single logical device (EX2300-24/48T/P and EX2300-24/48 MP models)
System Weight	9.89 lb (4.49 kg)
Environmental Ranges	• Operating temperature: 32° to 113° F (0° to 45° C) • Storage temperature: -40° to 158° F (-40° to 70° C) • Operating altitude: up to 13,000 ft (3962 m) at 40°C )according to GR-63 • Non-operating altitude: up to 15,000 ft (4572 m) • Relative humidity operating: 10% to 85% (noncondensing) • Relative humidity non-operating: 0% to 95% (noncondensing)
Cooling	Airflow: 23 cfm
DRAM	2 GB (EX2300-24/48T/P)
Flash	2 GB (EX2300 non-multigigabit models)
CPU	1.25GHz ARM CPU
GbE Port Density per System	28 (24 host ports + four-port SFP/SFP+ uplinks)
Supported Optics	• 10/100/1000BASE-T connector type RJ-45 • GbE SFP optic/connector type: RJ-45, or LC SFP fiber supporting 1000BASE-T SFP, SX (multimode), LX (singlemode),or LH (single-mode)
Physical Layer	• Physical port redundancy: Redundant trunk group (RTG) • Cable diagnostics for detecting cable breaks and shorts • Auto MDI/MDIX (medium-dependent interface/medium dependent interface crossover) support • Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports • Digital optical monitoring for optical ports
Packet-Switching Capacities (Maximum with 64-Byte Packets）	64 Gbps (unidirectional)/128 Gbps (bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)	95 Mpps (wire speed)
Acoustic Noise in DB	40.6
Warranty	Enhanced limited lifetime switch hardware warranty
Telco	CLEI code
Environmental	Reduction of Hazardous Substances (ROHS) 6
Telecom Quality Management	TL9000
Electromagnetic Compatibility Certifications	• FCC 47CFR Part 15 Class A • EN 55022 Class A • ICES-003 Class A • VCCI Class A • AS/NZS CISPR 22 Class A • CISPR 22 Class A • EN 55024 • EN 300386 • CE
