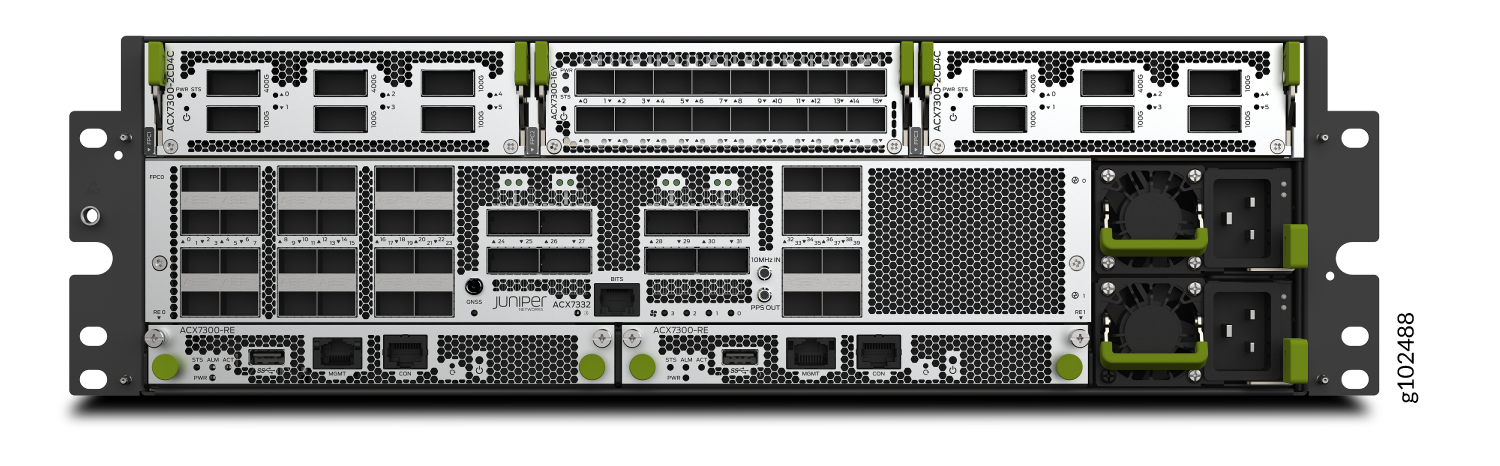

JUNIPER ACX7332-BASE ACX7300 CLOUD METRO ROUTERS

ACX7332-BASE is a JUNIPER enterprise router listed by YYST Global for WAN edge routing, branch connectivity, spare replacement and enterprise routing upgrades. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

Product name: ACX7332-BASE Juniper ACX7332 Base Bundle Chassis 4 Fans 2 AC/DC PSU. Category: JUNIPER ACX7300 CLOUD METRO ROUTERS. Condition: New Factory Sealed.

Product Model	ACX7332-BASE
Bundle Inclusion	1× ACX7332 Chassis 4× Fan Trays 2× AC/DC Power Supply
ASIC Throughput	2.4 Tbps
Routing Engine	Optional RE Redundancy CPU: 4Core RAM: 64 GB DDR4 (2x 32GB SODIMM) Mass Storage: 100GB SATA/NVMe SSDTPM2.0
Redundancy	Optional Control Plane (RE) Fan Power Supply (AC or DC)
Chassis Type	Fixed plus Modular (3x I/O Bays)
Dimensions (W x H x D)	17.4 x 5.25 x 11.42 in 44.20 x 13.33 x 29.00 cm
Weight	35.6 lb/16.1 kg (DC) 36 lb/16.3 kg (AC)
Power (DC)	40 VDC through 72 VDC
Power (AC)	180 VAC to 264 VAC
Typical Power Draw	465 W (1x RE) 520 W (2x RE)
Maximum Power Draw	495 W (1x RE) 551 W (2x RE)
Operating Temperature	Operating (0°C to 55°C)
Cooling	E-Temp (0°C to 55°C at 6000 ft) 8-Fans (4x Fan Trays-FRU), N+1
Operating Humidity	5% through 90% noncondensing
Interfaces supported	1/10/25/100/200/400GbE (fixed and modular capability combined)
Interfaces (fixed)	32x 1-25GbE, SFP/SFP+/SFP28 (MACsec) 8x 100GbE, QSFP28
Interfaces (modular)	3x I/O Bays–2x 800GbE (10-400GbE ports) and 1x 400GbE (1-100GbE ports) support the following modules (MACsec support on all ports): — 16x SFP56 FPC (16x 1/10/25/50GbE) — 2x QSFP56/2xQSFP28-DD & 4x QSFP28 (2x 400GbE/2x200GbE and 4x 100GbE)
Timing	SynchE, PTP, and Class C 1PPS and 10 MHz, BITS Integrated GNSS
Safety approvals	CAN/CSA-C22.2 No. 60950-1 Information Technology Equipment–Safety UL 60950-1 (2nd Edition) Information Technology Equipment-Safety EN 60950-1:2006/A2:2013 Information Technology Equipment-Safety IEC 60950-1:2005/A2:2013 Information Technology Equipment-Safety (All country deviations): CB Scheme CAN/CSA-C22.2 No. 62368-1-14 Information Technology Equipment-Safety UL 62368-1 Information Technology Equipment- Safety EN 62368-1: 2014 Information Technology Equipment- Safety IEC 62368-1: 2014 2nd Edition Information Technology Equipment-Safety EN 60825-1 Safety of Laser Products-Part 1: Equipment classification and requirements
Electromagnetic Capability (EMC)	CAN/CSA-C22.2 No. 60950-1 Information Technology Equipment–Safety EN 300 386 V1.6.1 Class A Telecom Network Equipment-EMC requirements EN 300 386 V2.1.1 Class A Telecom Network Equipment-EMC requirements FCC 47 CFR Part 15 Class A USA Radiated and Conducted Emissions EN 55032 Class A European Radiated and Conducted Emissions AS/NZS CISPR 32 Class A Australia/New Zealand Radiated and Conducted Emissions ICES-003 Class A Canada Radiated and Conducted Emissions VCCI-CISPR 32 Class A Japanese Radiated and Conducted Emissions BSMI CNS 13438 and NCC C6357 Taiwan Radiated and Conducted Emissions (at 10 meter) KN32 Korea Radiated and Conducted Emission (at 10 meter) TEC/EMI/TEL-001/FEB-09 TEC-SD-DD-EMC-221-05-OCT-16
Network Equipment Building System (NEBS)	SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-CORE: NEBS, Physical Protection GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment Data Center DC 3160
Immunity	EN 300 386 V1.6.1 Class A Telecom Network Equipment-Immunity requirements EN 300 386 V2.1.1 Class A Telecom Network Equipment-Immunity requirements EN 55024 (CISPR 24)IEC/EN 61000-4-X (-2, -3, -4, -5, -6, -11) KN35 Korea Immunity KN61000-4-X (-2, -3, -4, -5, -6, -11)Korea Immunity TEC/EMI/TEL-001/FEB-09 India Immunity TEC-SD-DD-EMC-221-05-OCT-16 IG Surge EN 55035 (CISPR 35:2016) Electromagnetic compatibility of multimedia equipment
