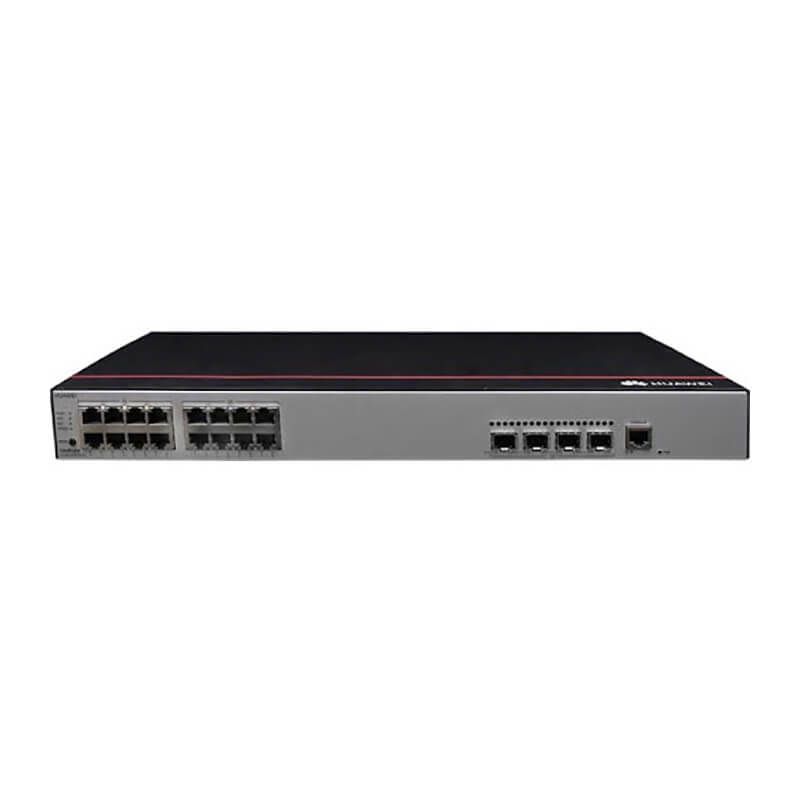

HUAWEI S2730S-S16FP4S-A S2700 Series Switches

S2730S-S16FP4S-A Specification

Item

Specification

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U]

1 U

Typical power consumption [W]

35.6 W

Typical heat dissipation [BTU/hour]

121.47 BTU/hour

Maximum power consumption [W]

• Not providing the PoE function: 53.2 W
• 100% PoE loads: 433.2 W (PoE: 380 W)

Maximum heat dissipation [BTU/hour]

• Not providing the PoE function: 181.52
• 100% PoE loads: 1478.12

MTBF [year]

58.68 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

50 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

38.2 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

2

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

• AC input: 100 V AC to 240 V AC, 50/60 Hz
• High-Voltage DC input: 240 V DC

Input voltage range [V]

• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-Voltage DC input: 190 V DC to 290 V DC

Maximum input current [A]

6 A

Memory

512 MB

Flash memory

512 MB

Console port

RJ45

Eth Management port

Not supported

USB

Not supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Supported
