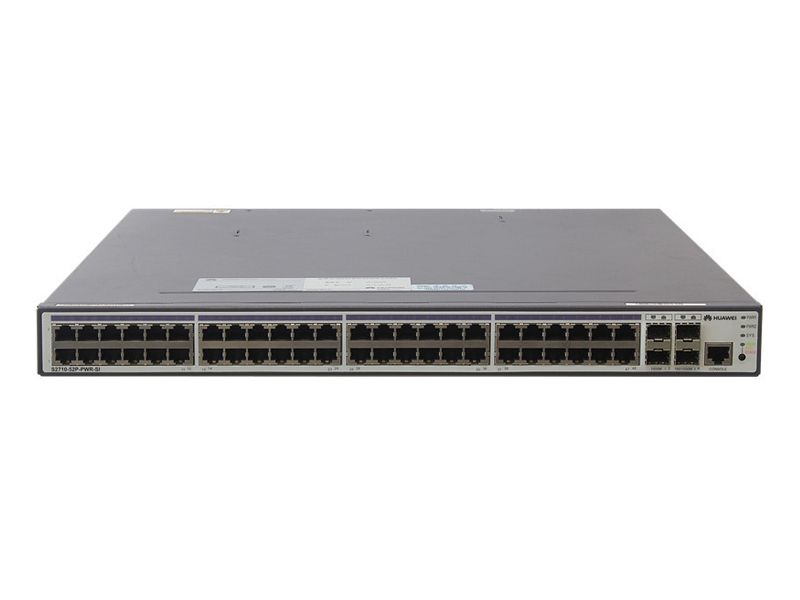

HUAWEI S2710-52P-PWR-SI S2700 Series Switches

S2710-52P-PWR-SI Specification

Downlink ports

48 × 10/100Base-TX Ethernet PoE ports

Uplink ports

4 × Gigabit SFP

MAC address

8K MAC address entries

Manual deletion of dynamic MAC address entries

Aging time of MAC address configurable

Blackhole MAC address entries

VLAN feature

4K VLANs, complying with IEEE 802.1Q

Port-based VLAN assignment

N/A

QoS

Outbound-Port-based rate limiting and flow-based rate limiting

4 or 8 queues of different priorities on each port

Mapping between 802.1p priorities and queues

SP, WRR, and SP+WRR algorithms

N/A

IPv6 feature

IPv6 protocol
Static IPv6 routes

Multicast

IGMP v1/v2/v3 snooping
Port-based rate limiting for multicast packets

Reliability

STP (IEEE
802.1d), RSTP (IEEE
802.1w), MSTP (IEEE
802.1s)

Traffic sampling

N/A

Security & access features

Storm suppression , IP Source Guard

Multiple authentication methods including AAA, RADIUS, and TACACS+;
Port isolation;
Suppression of multicast, broadcast, and unknown unicast packets;
CPU defense;
DHCP snooping

Surge protection

Surge protection capability of service ports: 6 kV (The surge protection capability of service ports on PoE switches is 1 kV.)

Management

Stack
Auto-Config
CLI-based configuration
Remote configuration using Telnet
SNMP V1/V2/V3
Remote network monitoring
SSHv2
Web-based device management

Operating environment

Long-term operating temperature: –5°C to + 50°C
Relative humidity: 10% to 90% (non-condensing)

Power

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage: 90 to 264 V AC, 50/60 Hz

Dimensions (W x D x H)

442 × 220 × 43.6 mm

Weight

S2710-52P-SI<3 kg
