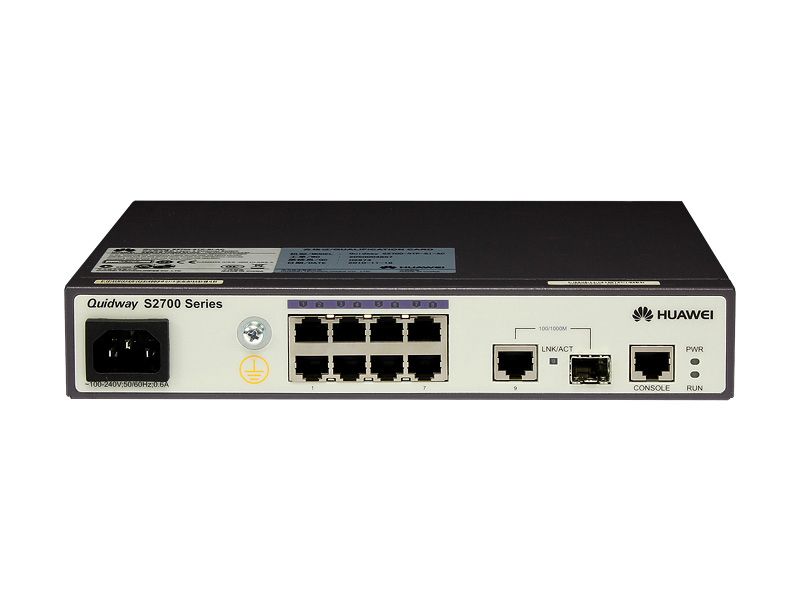

HUAWEI S2700-9TP-EI-AC S2700 Series Switches

Port

Eight 10/100Base-TX ports and one gigabit(GE) combo port

Forwarding performance

2.68   Mpps

MAC address table

8 K MAC address entries
Manual creation and deletion of MAC address entries
Aging time of MAC address entries
Disabling MAC address learning on an interface or aggregation group
Limit on the number of MAC addresses learned on an interface
Blackhole MAC address entries

VLAN features

4 K VLANs, complying with IEEE 802.1Q
Port-based VLAN assignment

QoS

Port-based rate limiting and flow-based rate limiting
Four or eight queues of different priorities on each port
Mapping between 802.1p priorities and queues
SP, WRR, and SP+WRR algorithms

IPv6 features

IPv6 host
Static IPv6 routes

Multicast

IGMP v1/v2/v3 snooping
Multicast load balancing among member ports of a trunk
Port-based rate limiting and traf?c statistics for multicast packets

Port mirroring

1:1 and N:1 port mirroring

Security

Port isolation
Suppression of multicast, broadcast, and unknown unicast packets
CPU defense

Surge protection

6KV surge protection capability on service ports

Device management

Auto-Con?g
CLI-based con?guration
Remote con?guration using Telnet
SNMP V1/V2/V3
RMON
HGMP v2
SSHv2
Web-based device management
GVRP

Operating environment

Operating temperature: 0°C–50°C (long term); -5°C–55°C (short term)
Relative humidity: 10%–90% (non-condensing)

Power supply

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz

Dimensions: width x depth x height

250 mm x 180 mm x 43.6 mm

Weight

1.4kg

Power consumption

< 12.8 W
