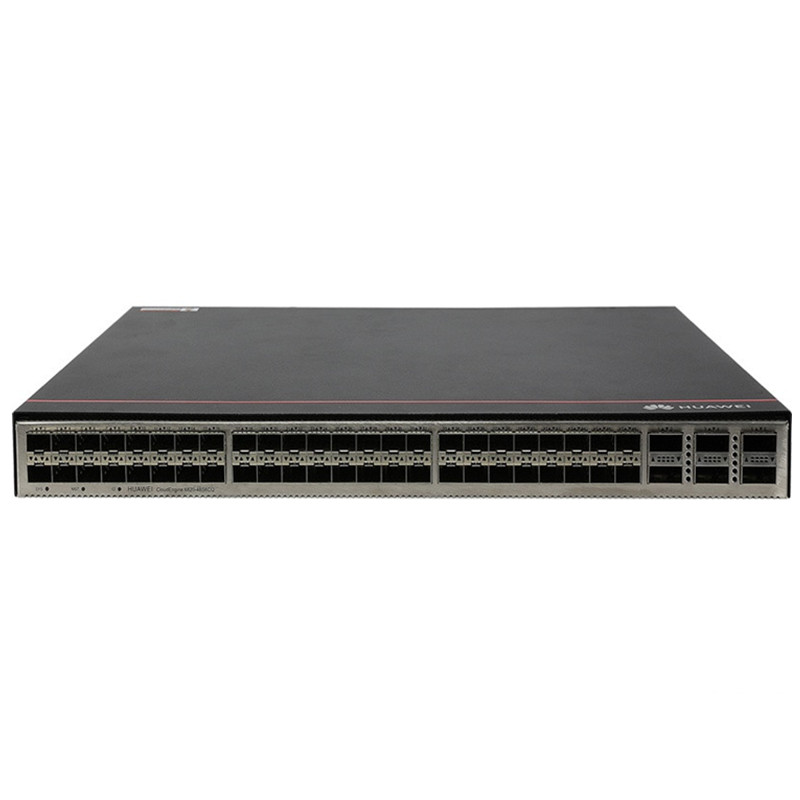

HUAWEI CE6885-48YS8CQ CE6800 Series Switches
- 763 412 7282
- +86 010 69614620
CE6885-48YS8CQ Buying Guide
CE6885-48YS8CQ - Huawei CloudEngine 6885 Data Center Switch is listed by YYST Global for buyers looking for HUAWEI Huawei CE6800 Series Switches. CE6885-48YS8CQ HUAWEI enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 435.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: CE6885-48YS8CQ
- Brand: HUAWEI
- Category: Huawei CE6800 Series Switches
- Condition: New Factory Sealed
- Reference price: US$ 435.00
CE6885-48YS8CQ Overview
CE6885-48YS8CQ is a HUAWEI enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: CE6885-48YS8CQ - Huawei CloudEngine 6885 Data Center Switch. Category: Huawei CE6800 Series Switches. Condition: New Factory Sealed.
CE6885-48YS8CQ Specification
| Dimensions with packaging (H x W x D) [mm (in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.) |
| Weight without packaging [kg (lb)] | 6.36 kg (14.02 lb), excluding optical modules, power modules, and fan modules |
| Weight without packaging (full configuration) [kg (lb)] | 8.55 kg (18.85 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 10.63 kg (23.43 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 12.82 kg (28.26 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC pluggable,DC pluggable,HVDC pluggable |
| Console port | RJ45 |
| Downlink Service interface | 48 x 25GE SFP28/48 x 50GE SFP56 |
| Uplink Service interface | 8 x 100GE QSFP28/8 x 200GE QSFP56 |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 48 x 25GE + 8 x 100GE: 147 W (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 166 W (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | 48 x 25GE + 8 x 100GE: 502 BTU/hr (100% traffic load, copper cables on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) 566 BTU/hr (100% traffic load, short-distance optical modules on 24 x 25GE + 4 x 100GE ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 136 W |
| Static heat dissipation [BTU/hour] | 464 BTU/hour |
| Maximum power consumption [W] | 48 x 25G + 8 x 100G: 200 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 326 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] | 48 x 25GE + 8 x 100GE: 682 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1112 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | - 600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC - 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC - 400 W DC power module: –48 V DC to –60 V DC; +48 V DC |
| Input voltage range [V] | - 600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC - 1200 W DC power module: –38.4 V DC to –72 V DC; +40 V DC to +57 V DC - 400 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC |
| Maximum input current [A] | - 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) - 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) - 400 W DC power module: 12 A (–48 V DC to –60 V DC); 12 A (+48 V DC) |
| Rated output power [W] | - 600 W AC&240 V DC power module: 600 W - 1200 W DC power module: 1200 W - 400 W DC power module: 400 W |
| Certification | - Compliance with safety standards - Compliance with EMC standards - Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Redundant fans | The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.999994851 |
| MTBF [year] | 44.34 years |
| MTTR [hour] | 2 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: Average: 52.8 dB(A); max: 58.7 dB(A) Back-to-front airflow: Average: 51.3 dB(A); max: 59.0 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: Average: 69.5 dB(A); max: 76.0 dB(A) Back-to-front airflow: Average: 70.2 dB(A); max: 75.6 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| RTU License Supported | Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s. |
| Exact product model | CE6885-48YS8CQ |
| Product family | Huawei CloudEngine data center switch |
| Official Huawei documentation | Huawei Enterprise Support results for CE6885-48YS8CQ |
| Specification validation | Match the exact order code, suffix, region, power option, software version and required licenses against Huawei documentation before purchase. |
CE6885-48YS8CQ Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
CE6885-48YS8CQ FAQ
What is CE6885-48YS8CQ?
CE6885-48YS8CQ - Huawei CloudEngine 6885 Data Center Switch is a HUAWEI Huawei CE6800 Series Switches product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the dimensions with packaging (h x w x d) [mm (in.)] of CE6885-48YS8CQ?
The listed dimensions with packaging (h x w x d) [mm (in.)] for CE6885-48YS8CQ is 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.). Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the weight without packaging [kg (lb)] of CE6885-48YS8CQ?
The listed weight without packaging [kg (lb)] for CE6885-48YS8CQ is 6.36 kg (14.02 lb), excluding optical modules, power modules, and fan modules. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is CE6885-48YS8CQ available from YYST Global?
YYST Global can help check availability, lead time and configuration for CE6885-48YS8CQ. Contact the sales team before ordering to confirm current stock.
What is the price of CE6885-48YS8CQ?
The current reference price for CE6885-48YS8CQ is US$ 435.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
