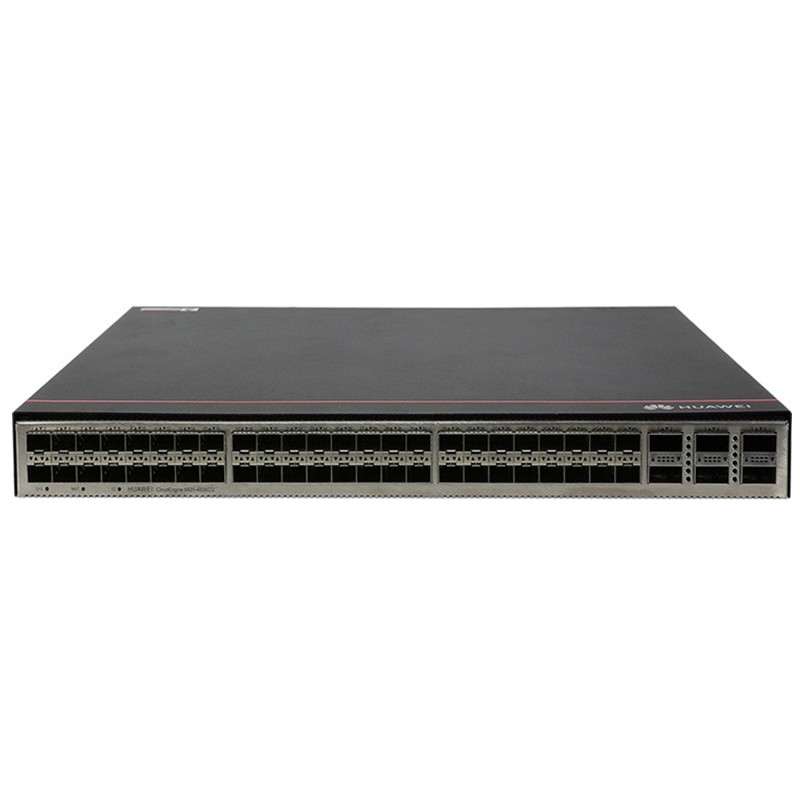

HUAWEI CE5855SL-48T4XS CE5800 Series Switches
- 763 412 7282
- +86 010 69614620
CE5855SL-48T4XS Buying Guide
Huawei CE5855SL-48T4XS Switch is listed by YYST Global for buyers looking for HUAWEI Huawei CE5800 Series Switches. CE5855SL-48T4XS HUAWEI enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 521.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: CE5855SL-48T4XS
- Brand: HUAWEI
- Category: Huawei CE5800 Series Switches
- Condition: New Factory Sealed
- Reference price: US$ 521.00
CE5855SL-48T4XS Overview
CE5855SL-48T4XS is a HUAWEI enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: Huawei CE5855SL-48T4XS Switch. Category: Huawei CE5800 Series Switches. Condition: New Factory Sealed.
CE5855SL-48T4XS Specification
Technical Specifications
Table 4-13 Technical specifications of the CE5855SL-48T4XS
| Item | Specification |
|---|---|
| Dimensions with packaging (H x W x D) [mm (in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Weight without packaging [kg (lb)] | 2.74 kg (6.04 lb) |
| Weight without packaging (full configuration) [kg (lb)] | 2.74 kg (6.04 lb) |
| Weight with packaging [kg (lb)] | 3.62 kg (7.98 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 3.62 kg (7.98 lb) |
| Chassis height [U] | 1 U |
| Installation Type | Rack, workbench, and wall-mounted |
| CPU | 1.1 GHz, 2 cores |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| NAND Flash | 1 GB |
| USB | Supported |
| Power supply mode |
|
| Console port | RJ45 |
| Downlink Service interface | 48*10/100/1000BASE-T |
| Uplink Service interface | 4*10G SFP |
| Service port supporting the stack function | 2 x 12G stacking |
| RTC | Not supported |
| Typical power consumption [W] | 41 W |
| Typical heat dissipation [BTU/hour] | 140 BTU/hour |
| Static power consumption [W] | 20 W |
| Static heat dissipation [BTU/hour] | 68 BTU/hour |
| Maximum power consumption [W] | 49 W |
| Maximum heat dissipation [BTU/hour] | 168 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | Not supported |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.6 A |
| Certification | EMC certification Safety certification Manufacturing certification |
| Power supply surge protection [kV] | ±6 kV in differential mode and ±6 kV in common mode |
| Types of fans | Built-in |
| Number of fans | 1 |
| Heat dissipation mode | Air cooling, intelligent speed adjustment |
| Airflow direction | Air intake from left, air exhaustion from right |
| Availability | >0.99999 |
| MTBF [year] | 40.01 years |
| MTTR [hour] | 2 hour |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Average: 34.6 dB(A); max: 37.6 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | 47 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| Exact product model | CE5855SL-48T4XS |
| Product family | Huawei CloudEngine data center switch |
| Official Huawei documentation | Huawei Enterprise Support results for CE5855SL-48T4XS |
| Specification validation | Match the exact order code, suffix, region, power option, software version and required licenses against Huawei documentation before purchase. |
CE5855SL-48T4XS Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
CE5855SL-48T4XS FAQ
What is CE5855SL-48T4XS?
Huawei CE5855SL-48T4XS Switch is a HUAWEI Huawei CE5800 Series Switches product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the item of CE5855SL-48T4XS?
The listed item for CE5855SL-48T4XS is Specification. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the dimensions with packaging (h x w x d) [mm (in.)] of CE5855SL-48T4XS?
The listed dimensions with packaging (h x w x d) [mm (in.)] for CE5855SL-48T4XS is 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.). Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is CE5855SL-48T4XS available from YYST Global?
YYST Global can help check availability, lead time and configuration for CE5855SL-48T4XS. Contact the sales team before ordering to confirm current stock.
What is the price of CE5855SL-48T4XS?
The current reference price for CE5855SL-48T4XS is US$ 521.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
