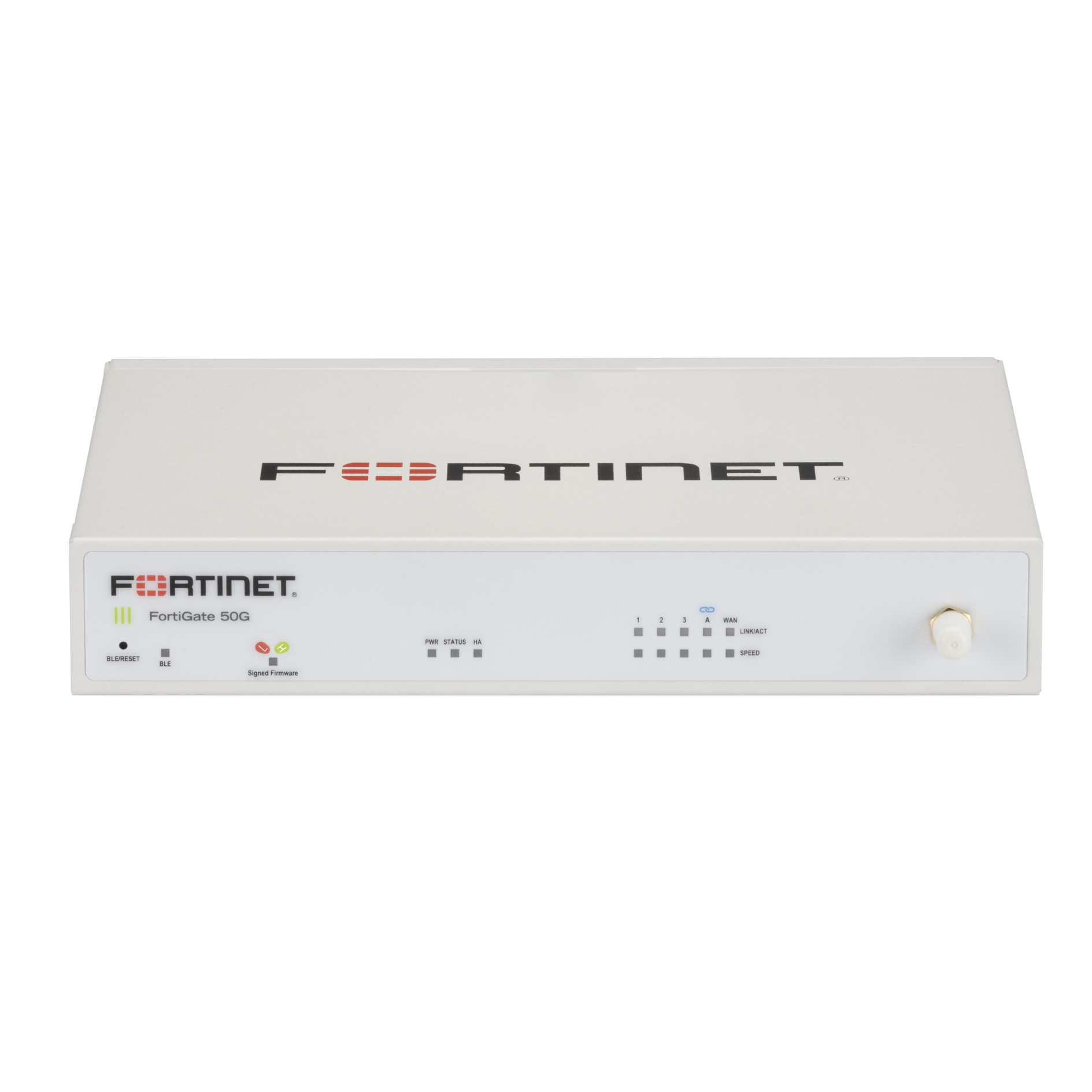

FORTINET FG-50G-5G FortiGate/FortiWiFi 50G Series
- 763 412 7282
- +86 010 69614620
FG-50G-5G Buying Guide
FG-50G-5G FortiGate 50G with Embedded 5G Module and WWAN Antenna Ports is listed by YYST Global for buyers looking for FORTINET FortiGate/FortiWiFi 50G Series. FG-50G-5G FORTINET security firewall appliance for security refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 39,870.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: FG-50G-5G
- Brand: FORTINET
- Category: FortiGate/FortiWiFi 50G Series
- Condition: New Factory Sealed
- Reference price: US$ 39,870.00
FG-50G-5G Overview
FG-50G-5G is a FORTINET security firewall appliance listed by YYST Global for perimeter security refreshes, HA replacement, branch protection and security appliance sourcing. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FG-50G-5G FortiGate 50G with Embedded 5G Module and WWAN Antenna Ports. Category: FortiGate/FortiWiFi 50G Series. Condition: New Factory Sealed.
FG-50G-5G Specification
| Hardware Accelerated GE WAN Ports | 1 |
| Hardware Accelerated GE RJ45 Ports | 3 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Port | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Signed Firmware Hardware Switch | Yes |
| Antenna Ports (SMA) | 5 |
| SIM Slots (Nano SIM) | 2 |
| Maximum Tx Power | 23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41) |
| Regions | All Regions |
| Modem Model | Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Passive) |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands) |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| UMTS/HSPA+ | B1, B2, B4, B5, B6, B8, B19 |
| WCDMA | B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only) |
| Carrier Certifications | PTCRB: Yes ATT: Yes T-Mobile: Target Q2 26 Verizon: Target Q2 26 Public Safety Network: Yes (FirstNet Capable) |
| Diversity | Yes |
| MIMO | Yes |
| GNSS Bias | Yes |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Threat Protection Throughput | 1.1 Gbps |
| Firewall Throughput (1518/512/64 byte UDP packets) | 5 / 5 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.42 μs |
| Firewall Throughput (Packets Per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 720 000 |
| New Sessions/Second (TCP) | 85 000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74 000 |
| Application Control Throughput (HTTP 64K) | 2.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
| Virtual Domains (Default/Maximum) | 5/5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total/Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions (Height x Width x Length, inches) | 1.6 x 8.5 x 6.3 |
| Dimensions (Height x Width x Length, mm) | 40.5 x 216 x 160 |
| Weight | 2.2 lbs (1.0 kg) |
| Form Factor | Desktop |
| Power Rating | 12VDC, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current | 100V/0.4A, 240V/0.2A |
| Power Consumption (Average/Maximum) | 8.3 W / 8.9 W |
| Heat Dissipation | 30.35 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non‑condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ISED, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
FG-50G-5G Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
FG-50G-5G FAQ
What is FG-50G-5G used for?
FG-50G-5G FortiGate 50G with Embedded 5G Module and WWAN Antenna Ports is a FORTINET accessory or component in the FortiGate/FortiWiFi 50G Series category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with FG-50G-5G?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with FG-50G-5G?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of FG-50G-5G?
The current reference price for FG-50G-5G is US$ 39,870.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
