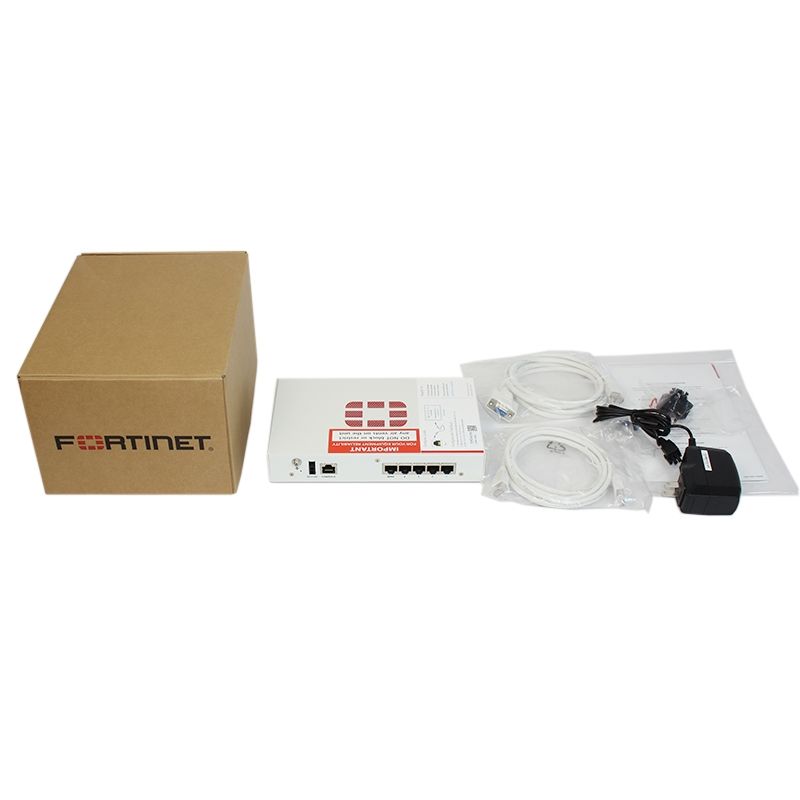

FORTINET FG-30E FortiGate/FortiWiFi 30E Series
- 763 412 7282
- +86 010 69614620
FG-30E Buying Guide
FG-30E FortiGate 30E 5xGE RJ45 Ports SD-WAN UTM Firewall is listed by YYST Global for buyers looking for FORTINET FortiGate/FortiWiFi 30E Series. FG-30E FORTINET security firewall appliance for security refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 430.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: FG-30E
- Brand: FORTINET
- Category: FortiGate/FortiWiFi 30E Series
- Condition: New Factory Sealed
- Reference price: US$ 430.00
FG-30E Overview
FG-30E is a FORTINET security firewall appliance listed by YYST Global for perimeter security refreshes, HA replacement, branch protection and security appliance sourcing. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: FG-30E FortiGate 30E 5xGE RJ45 Ports SD-WAN UTM Firewall. Category: FortiGate/FortiWiFi 30E Series. Condition: New Factory Sealed.
FG-30E Specification
| Datasheet series | Fortinet FortiGate 30E Series |
| Exact model | FG-30E |
| Security appliance type | FortiGate next-generation firewall appliance |
| Sizing check | Validate firewall, IPS, NGFW, threat protection and VPN throughput against the official datasheet before order |
| Interface check | Confirm RJ45/SFP/SFP+ port count, bypass port requirement and WAN redundancy before purchase |
| Subscription check | Confirm FortiGuard, support term, firmware requirement and HA pair compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Fortinet FortiGate official hardware documentation |
| GE RJ45 WAN Interfaces | 1 port |
| GE RJ45 Switch Interfaces | 4 ports |
| USB Port | 1 port |
| Console (RJ45) Port | 1 port |
| Wireless Interface | - |
| IPS Throughput | 300 Mbps |
| NGFW Throughput | 200 Mbps |
| Threat Protection Throughput | 150 Mbps |
| Firewall Throughput (1518 / 512 / 64 byte UDP) | 950 Mbps |
| Firewall Latency (64 byte UDP packets) | 130 μs |
| Firewall Throughput (Packets Per Second) | 180 Kpps |
| Concurrent Sessions (TCP) | 900,000 |
| New Sessions/Second (TCP) | 15,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 75 Mbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 35 Mbps |
| Concurrent SSL-VPN Users (Tunnel Mode, Max Recommended) | 100 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 125 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 120 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 45,000 |
| Application Control Throughput (HTTP 64K) | 400 Mbps |
| CAPWAP Throughput (HTTP 64K) | 850 Mbps |
| Virtual Domains (Default / Maximum) | 5 / 5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 2 / 2 |
| Maximum Number of FortiTokens | 500 |
| Maximum Registered FortiClient | 200 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Height x Width x Length (inches) | 1.61 x 8.27 x 5.24 |
| Height x Width x Length (mm) | 41 x 210 x 133 |
| Weight | 1.982 lbs (0.899 kg) |
| Form Factor | Desktop, Fanless |
| Power Requirement | 100–240V AC, 50–60 Hz, External 12 VDC adapter |
| Maximum Current | 100 V / 0.6 A, 240 V / 0.4 A |
| Power Consumption (Average / Maximum) | 13 / 15 W |
| Heat Dissipation | 52 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 0 dBA (Fanless Design) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Regulatory Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
FG-30E Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
FG-30E FAQ
What is FG-30E?
FG-30E FortiGate 30E 5xGE RJ45 Ports SD-WAN UTM Firewall is a FORTINET FortiGate/FortiWiFi 30E Series product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of FG-30E?
The listed datasheet series for FG-30E is Fortinet FortiGate 30E Series. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of FG-30E?
The listed exact model for FG-30E is FG-30E. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is FG-30E available from YYST Global?
YYST Global can help check availability, lead time and configuration for FG-30E. Contact the sales team before ordering to confirm current stock.
What is the price of FG-30E?
The current reference price for FG-30E is US$ 430.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
