DELL N1524 PowerSwitch N1500 Series
- 763 412 7282
- +86 010 69614620
N1524 Buying Guide
N1524 Dell N1500 Series 24x 1GbE RJ-45 4x 10GbE SFP+ Ports Switches is listed by YYST Global for buyers looking for DELL Dell PowerSwitch N1500 Series. N1524 DELL enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 1,332.00. Contact our sales team to validate compatibility, scope, fulfillment and lead time before ordering.
- Model: N1524
- Brand: DELL
- Category: Dell PowerSwitch N1500 Series
- Condition: New Factory Sealed
- Reference price: US$ 1,332.00
N1524 Overview
N1524 is a DELL enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: N1524 Dell N1500 Series 24x 1GbE RJ-45 4x 10GbE SFP+ Ports Switches. Category: Dell PowerSwitch N1500 Series. Condition: New Factory Sealed.
N1524 Specification
| Ports | 24x RJ45 10/100/1000Mb auto-sensing ports, 4x SFP+ ports |
| PoE Support | None |
| Integrated PSU | 1 integrated 40W PSU |
| Switch Fabric Capacity | 128Gbps (full duplex) |
| Forwarding Rate | 128Mpps |
| Dimensions | 1.7 in x 17.3 in x 10.1 in (43.2 × 440 × 257 mm) |
| Weight | 6.6 lbs / 3.0 kg |
| Max Power Consumption | 30.2W |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | –40° to 149°F (–40° to 65°C) |
| Operating Humidity | 95% |
| Storage Humidity | 85% |
| Power Cords | C13 to NEMA 5-15 3M; C13 to C14 2M |
| Optional Power Supply | RPS720 external power supply (720W) |
| Supported Optics | 1000BASE-T/SX/LX/ZX SFP; 10GbE SR/LR/ER SFP+ |
| Supported Cables | SFP+ to SFP+ 10GbE copper twinax direct |
| Stacking | Up to 4 units; 40Gbps full-duplex stack |
| Non-stop Forwarding | Supported in stack |
| Fast Failover | Supported in stack |
| Energy Efficient Ethernet | Supported |
| USB Auto-Configuration | Supported |
| Management | CLI, Web GUI, SNMP, Telnet, SSH |
| VLAN Support | 802.1Q, GVRP, Private VLAN, Voice VLAN |
| Spanning Tree | STP, RSTP, MSTP, RSTP-PV |
| Link Aggregation | 64 LAG groups, 8 ports per LAG |
| Port Mirroring | Local & RSPAN |
| Storm Control | Broadcast, multicast, unicast |
| Security | 802.1X, RADIUS, TACACS+, ACLs |
| Layer 3 Lite | Static routing, RIP, IPv4 / IPv6 |
| Jumbo Frames | Up to 9216 bytes |
| LLDP / LLDP-MED | Supported |
| Fan | Redundant variable speed fans |
| Rack Mount | 1U rack-mount kit included |
| Warranty | Lifetime limited warranty |
N1524 Ordering Information
This listing is an accessory or component and may not include the main device. Confirm the supported platform, connector or form factor, included quantity, hardware revision and required mounting or installation parts before ordering.
N1524 FAQ
What is N1524 used for?
N1524 Dell N1500 Series 24x 1GbE RJ-45 4x 10GbE SFP+ Ports Switches is a DELL accessory or component in the Dell PowerSwitch N1500 Series category. It may require a compatible main device and should not be treated as a complete standalone system.
Which products are compatible with N1524?
Compatibility depends on the exact parent platform, chassis or device revision. Provide the installed model and required quantity so YYST Global can check fit before ordering.
What is included with N1524?
Confirm whether the quotation includes only the named component or also includes cables, brackets, optics, licenses or installation hardware. Package contents vary by part number and condition.
What is the price of N1524?
The current reference price for N1524 is US$ 1,332.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
Related products
Related N1524

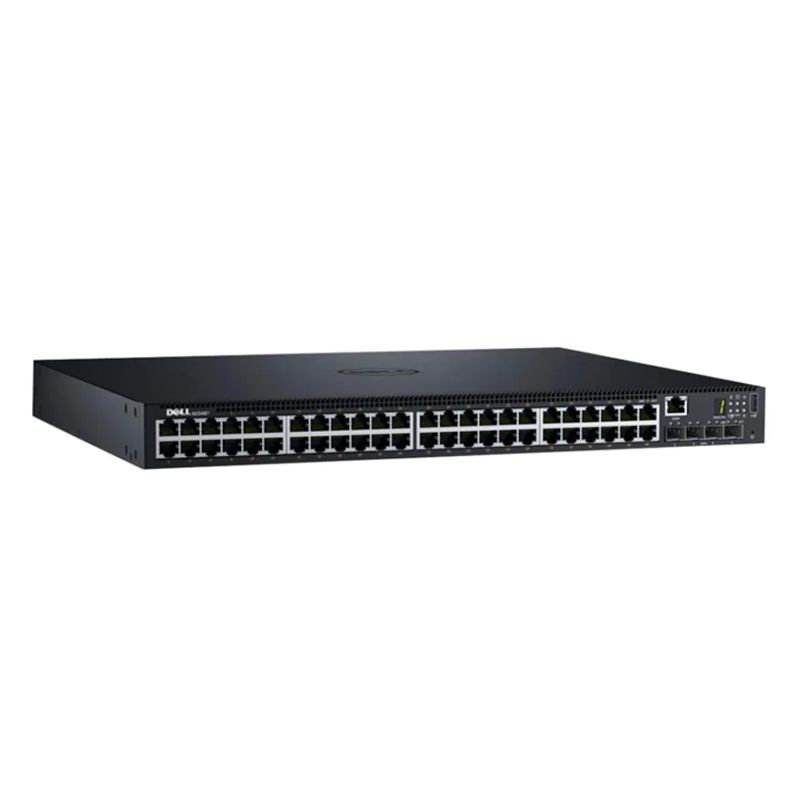

N1548P Dell N1500 Series48x1G PoE+/4x10G SFP+ Ports 600W PSU Switches
N1548P DELL enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support.

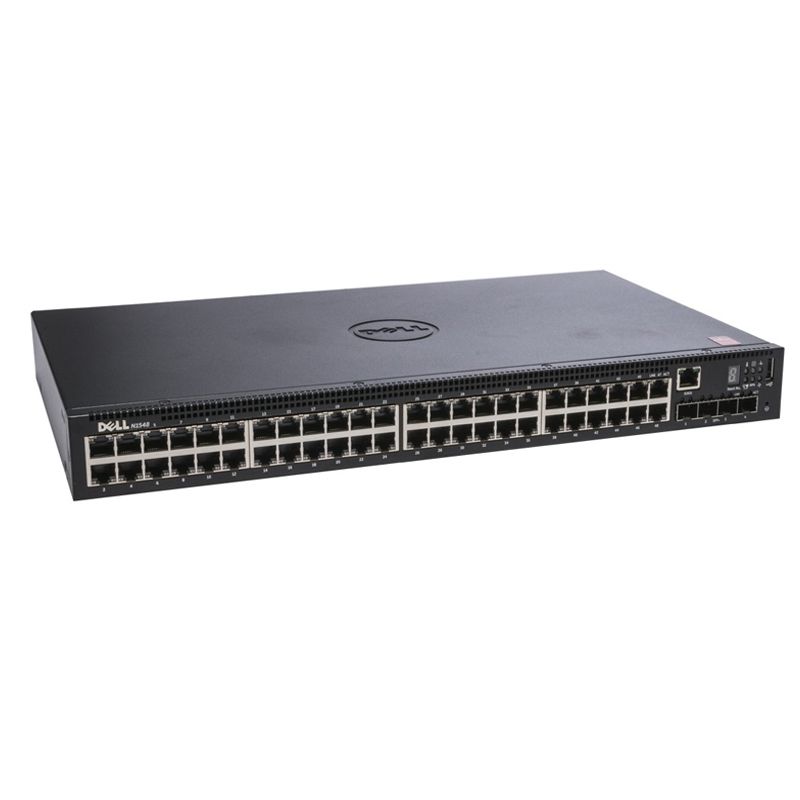

N1548 Dell N1500 Series 48×1GbE RJ45 4×10GbE SFP+ 100W PSU Switches
N1548 DELL enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support.

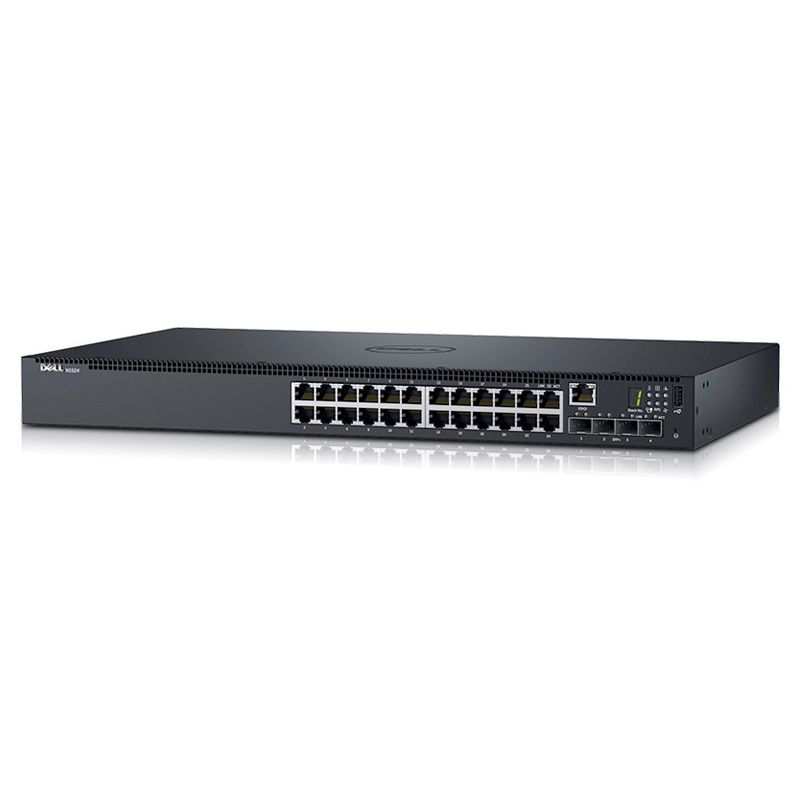

N1524P Dell N1500 Series 24×PoE+ 1GbE RJ45, 4×10GbE SFP+ Switches
