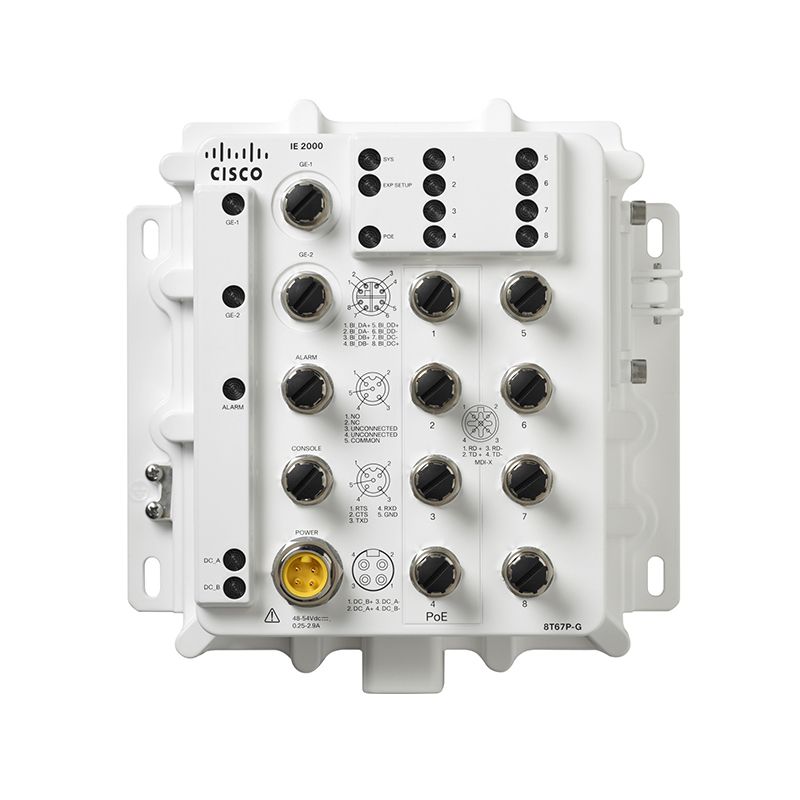

CISCO IE-2000-8T67P-G-E Industrial Ethernet 2000 Series Switches

IE-2000-8T67P-G-E Specification

Total Ports

10

100 MB D-code

8

GE X-code ports

2

Manufacturing license

LAN Base

IEEE1588

Yes

NAT

Yes

PoE (+)

Yes

Dimensions (H x W x D)

9.5” x 9.32” x 3.9” (241.7 x 236.7 x 99 mm)

Weight

7.19 lbs. (3.26 kg)

Hardware

●  256MB DRAM with ECC memory

●  IEEE 1588v2 FPGA

●  64MB on-board flash memory

●  1GB removable SD flash memory card (optional)

Alarm

●  Alarm-one alarm output relay using an M12 A Coded 5 Pin connector (Max. rated: 24VDC @ 1A/48VDC @ 0.5A)

Input voltage supported

● with PoE: 44-57VDC, with PoE+ 50-57VDC

●  PWR-IE160W-67-DC=: 18-60VDC, 12A

Power rating

●  0.12KVA

Power consumption

●  73-84W

Connectors and cabling

Data cable

●  Copper 100 Base-T M12 D coded 4-pole (pin) cable connector

●  Copper GE M12 X coded-8-pole (pin)-cable connector

Alarm cable

●  M12 A-Coded 5-Pin Cable

Console cable

●  M12 A Coded 5-Pin connector

Power supply cables

●  Power cable for power source, Mini-Change A-Size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable.

●  Power cable to IE2000 IP67 switch: Mini-Change A-size double-Ended Cordset, 4 poles male to female. 16 AWG, TPE cable.

●  Power cable for AC-DC power source, Mini-change A-size single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG PVC cable.

●  Power cord from power source to power supply: 2 hole female power cord to open for input DC connector.

Operating temperature

●  -40°C to +75°C

●   -40°C to +70°C (vented enclosure operating)

●   -40°C to +60°C (sealed enclosure operating)

●   -34°C to +75°C (200 LFM or more fan- or blower-equipped enclosure operating)

●   -40°C to +85°C (type tested to +85°C for 16 hours)

●   Altitude: Up to 13,800 feet (4570 meters)

Storage Temperature

●  -40°C to +85°C

●  IEC 60068-2-14

●  Altitude: Up to 13,800 feet or 4,200 meters

MTBF

●  Mean time between failures: 374,052 hours (42.7 years)
