C1-N9K-C9364C Buying Guide

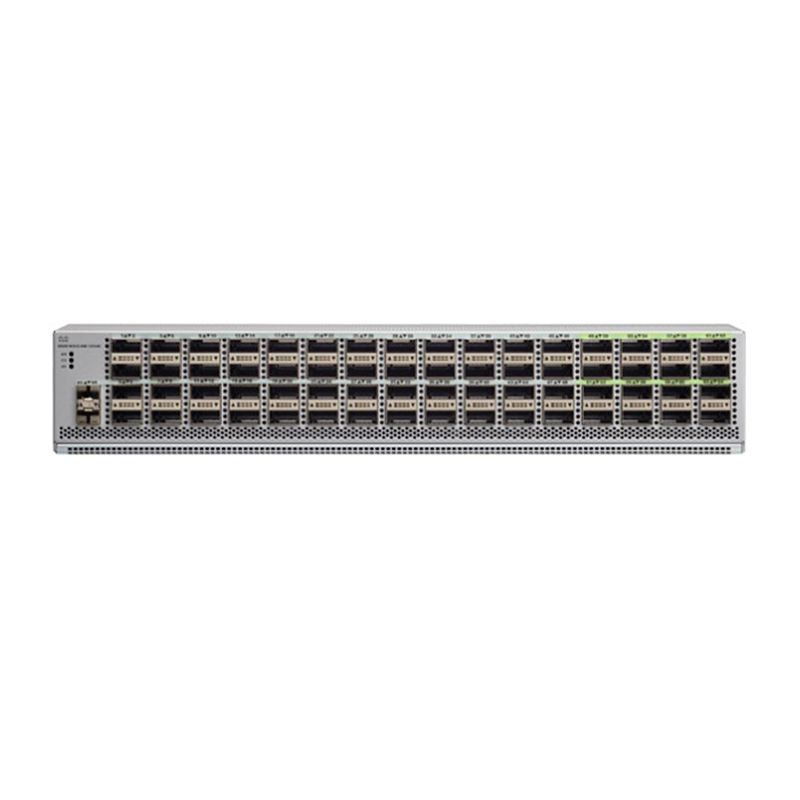

C1-N9K-C9364C - Cisco ONE Nexus 9300 ACI & NX-OS Spine, 64p 40/100G is listed by YYST Global for buyers looking for CISCO Cisco Nexus 9000 Series Switches. C1-N9K-C9364C CISCO enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 8,000.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: C1-N9K-C9364C
- Brand: CISCO
- Category: Cisco Nexus 9000 Series Switches
- Condition: New Factory Sealed
- Reference price: US$ 8,000.00
C1-N9K-C9364C Overview
C1-N9K-C9364C is a CISCO enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: C1-N9K-C9364C - Cisco ONE Nexus 9300 ACI & NX-OS Spine, 64p 40/100G. Category: Cisco Nexus 9000 Series Switches. Condition: New Factory Sealed.
C1-N9K-C9364C Specification
| Datasheet series | Cisco Nexus 9000 Series Switches |
| Exact model | C1-N9K-C9364C |
| Product role | Data center switch; confirm port speed, airflow, power supply, optics and NX-OS/ACI mode |
| Primary validation | downlink/uplink speed, optics and breakout support |
| Procurement check | airflow direction, power supply and NX-OS/ACI compatibility |
| Procurement validation | Confirm exact part number, condition, licenses, accessories, power/airflow option, warranty, stock and lead time before purchase |
| Official datasheet | Cisco Nexus 9000 Series official product page |
| Physical |
- 64-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports - Buffer: 40MB - System memory: 32GB - SSD: 128GB - USB: 1 port - RS-232 serial console ports: 1 - Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) - Broadwell-DE CPU: 4 cores |
| Power and cooling |
- Power: 1200W AC, 930W DC or 1200W HVAC/HVDC - Input voltage: 100 to 240V * AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V. - Hot-swappable, dual fan trays with redundant fans - Frequency: 50 to 60 Hz (AC) - Efficiency: 90% or greater (20 to 100% load) - Port-side intake or port-side exhaust options - Typical power: 429W (AC) - Maximum power: 1245W (AC) |
| Environmental |
- Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) - Weight: 36.9 lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans - Operating temperature: 32 to 104°F (0 to 40°C) - Nonoperating (storage) temperature: –40 to 158°F - Humidity: 5 to 85% (noncondensing) - Altitude: 0 to 13,123 ft (0 to 4000m) - RoHS compliance: Yes |
| Acoustics |
- Fan speed at 40%: 76.7 dBA - Fan speed at 70%: 88.7 dBA - Fan speed at 100%: 97.4 dBA |
| MTBF | - 257,860 hours |
| Performance and Scalability | |
| Maximum number of IPv4 Longest Prefix Match (LPM) routes |
- Default: 7000 - LPM heavy : 262,000 |
| Maximum number of IPv4 host entries |
- Default: 96,000 - LPM heavy : 262,000 |
| Maximum number of MAC address entries | 92,000 |
| Number of multicast routes |
- Default: 8000 - LPM heavy: 32,768 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | 8000 |
| Number of Access Control List (ACL) entries |
- Per slice of the forwarding engine: - 4000 ingress - 2000 egress - Maximum: 16,000 ingress - 8000 egress - Shipping: 14,328 ingress - 7160 egress |
| Maximum number of VLANs | 3967 |
| Maximum number of Virtual Routing and Forwarding (VRF) instances | 1000 |
| Maximum number of links in a port channel | 32 |
| Maximum number of Equal-Cost Multipath (ECMP) paths | 64 |
| Maximum number of ECMP groups | 1024 |
| Maximum number of port channels | 64 |
| Number of active SPAN sessions | 4 |
| Maximum number of Rapid Per-VLAN Spanning Tree (RPVST) instances | 3967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Maximum number of VTEPs | 256 |
| Maximum number of static Network Address Translation (NAT) entries | 1023 |
| Maximum number of dynamic NAT entries | 1023 |
| Maximum number of static twice NAT entries | 768 |
| Maximum number of dynamic twice NAT entries | 1023 |
| Number of Queues | 8 |
| Regulatory Standards Compliance | |
| Safety |
- UL 60950-1 Second Edition - CAN/CSA-C22.2 No. 60950-1 Second Edition - EN 60950-1 Second Edition - IEC 60950-1 Second Edition - AS/NZS 60950-1 - GB4943 |
| EMC: Emissions |
- 47CFR Part 15 (CFR 47) Class A - AS/NZS CISPR22 Class A - CISPR22 Class A - EN55022 Class A - ICES003 Class A - VCCI Class A - EN61000-3-2 - EN61000-3-3 - KN22 Class A - CNS13438 Class A |
| EMC: Immunity |
- EN55024 - CISPR24 - EN300386 - KN 61000-4 series |
| RoHS | - The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors |
C1-N9K-C9364C Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | Free CCIE Expert Technical Support |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
C1-N9K-C9364C FAQ
What is C1-N9K-C9364C?
C1-N9K-C9364C - Cisco ONE Nexus 9300 ACI & NX-OS Spine, 64p 40/100G is a CISCO Cisco Nexus 9000 Series Switches product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
What is the datasheet series of C1-N9K-C9364C?
The listed datasheet series for C1-N9K-C9364C is Cisco Nexus 9000 Series Switches. Confirm the exact SKU and hardware revision against the project requirement before ordering.
What is the exact model of C1-N9K-C9364C?
The listed exact model for C1-N9K-C9364C is C1-N9K-C9364C. Confirm the exact SKU and hardware revision against the project requirement before ordering.
Is C1-N9K-C9364C available from YYST Global?
YYST Global can help check availability, lead time and configuration for C1-N9K-C9364C. Contact the sales team before ordering to confirm current stock.
What is the price of C1-N9K-C9364C?
The current reference price for C1-N9K-C9364C is US$ 8,000.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
