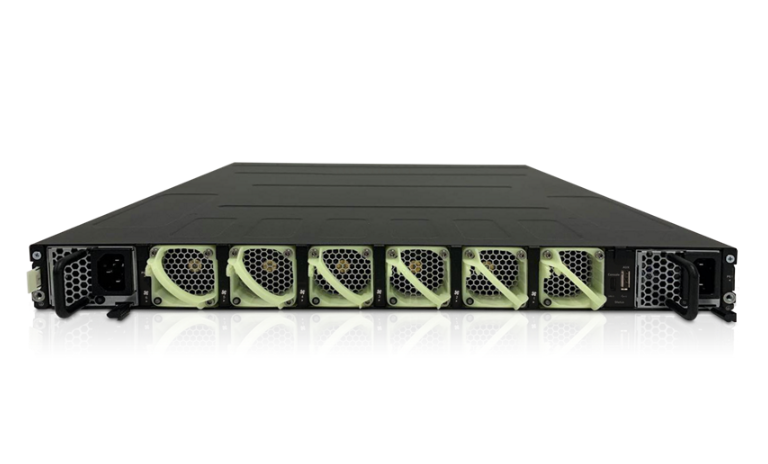

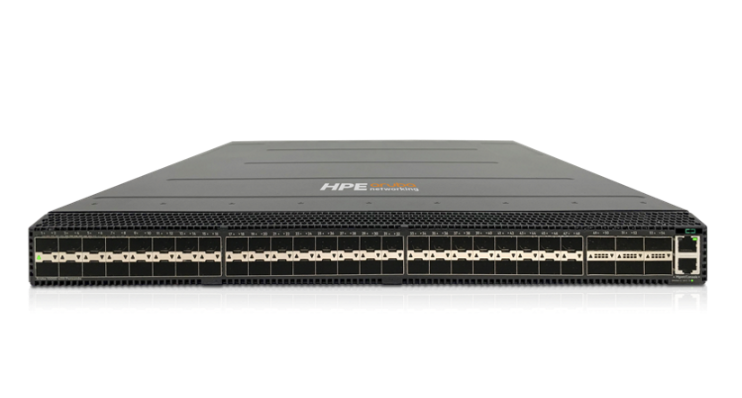

ARUBA R8P13A Switches

Product Number

R8P13A

Differentiator

Bundle includes:

48 x 25Gb ports (SFP/+/28), 6 x 100Gb ports (QSFP+/28) 6x R8R53A Front-to-Back fan

2x R8R51A Front-to-Back 800W 100-240VAC power supply 1U - Height

Ports

CX 10000 - 48 SFP28; 6 QSFP28

CX 10040 - 32x100 GbE QSFP, 6x400 GbE QSFP-DD, 2x10 GbE SFP+.

Memory and processor

CX 10000 - CPU: 2.9 GHz, 32 GB 92x16 GB) SODIMM, 64 GB SSD, 32 MB SPI Flash (BIOS), 64 MB SPI Flash (SVOS); Packet Buffer - 32 MB; DPU: 2 x Pensando Elba 3   GHz

CX 10040 - AMD V3C48 as main system CPU, resides on Ryder; 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM

Packet Buffer - 82 MB; DPU: 4 x Pensando Elba

Latency

<1 µs (without redirect) <5 µs (with redirect)

Throughput

CX 10000 provides 3.2 Tbps for bidirectional switching and 2000 Mpps for forwarding

CX 10040 provides 8 Tbps for bidirectional switching

Switching capacity

CX 10000 - 3.2 Tbps full-duplex

CX 10040 - 8 Tbps full-duplex

Routing capabilities

Static (IPv4/IPv6): RIPv2

RIPng

OSPF

OSPFv3 BGP-4

MP-BGP with IPv6

PBR

ECMP GRE

Stacking capabilities

Yes

Management features

CLI

REST API SNMP

Fabric Composer Multi-Edit

RJ-45 console Port

USB micro console port

RJ-45 out-of-band management port

Power supply name

CX 10000 - 2x R8R51A (Front-to-Back) or 2x R8R52A (Back-to-Front)

CX 10040 - 2x S4R52A (Front-to-Back) or 2x S4R53A (Back-to-Front)

Input voltage

100-240 VAC

Power consumption

CX10000-753W(maximum),550W(typical),400W(idle)

CX10040-1700W(maximum),1200W         (typical)

Notes:

Maximum measurement is collected under 100%line rate network traffic running, with allports populated with SFP and QSFP modules.

Typical measurement is collected under 50%line rate network traffic running,with all ports populated with SFP and QSFP modules.

Idle measurement is collected with no network traffic or modules.

Heat dissipation

1,876  BTU/hr
