ARUBA JL817A Switches

JL817A is a ARUBA enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.

YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.

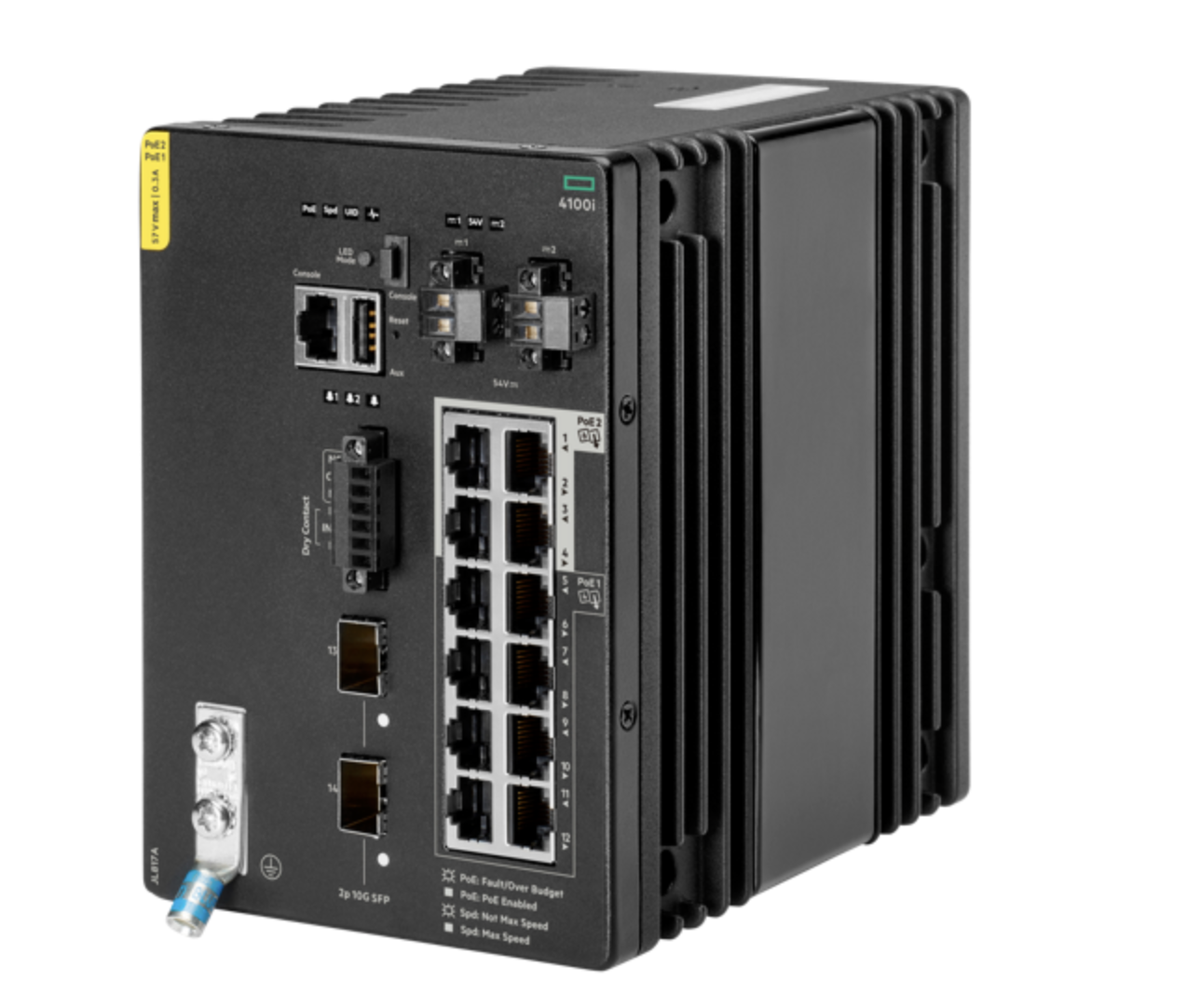

Product name: JL817A-HPE Aruba 4100i Switch-12p 1GbE 8p Class4 PoE 4p Class6 PoE. Category: Aruba Switches. Condition: New Factory Sealed.

Differentiator 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
2x 1/10G SFP ports
2x DC power socket

Power consumption With JL819A PSU:
Idle: 22W
100% Traffic Rate: 26W
100% Traffic Rate (w/ heater): 55W

With JL820A PSU:
Idle: 24W
100% Traffic Rate: 28W
100% Traffic Rate (w/ heater): 57W

With JL821A PSU:
Idle: 22W
100% Traffic Rate: 27W
100% Traffic Rate (w/ heater): 56W

Note: Heater will only turn on at extreme low temperature condition.

Heat dissipation With JL819A PSU:
89 BTU/hr at 230V - Room temperature (25°C)

With JL820A PSU:
95 BTU/hr at 230V - Room temperature (25°C)

With JL821A PSU:
94 BTU/hr at 48V - Room temperature (25°C)

Input voltage AC voltage: 100V-240V (JL819A and JL820A)
DC voltage: 12V-48V nominal, UL Certified to: 11V-55V (JL821A)

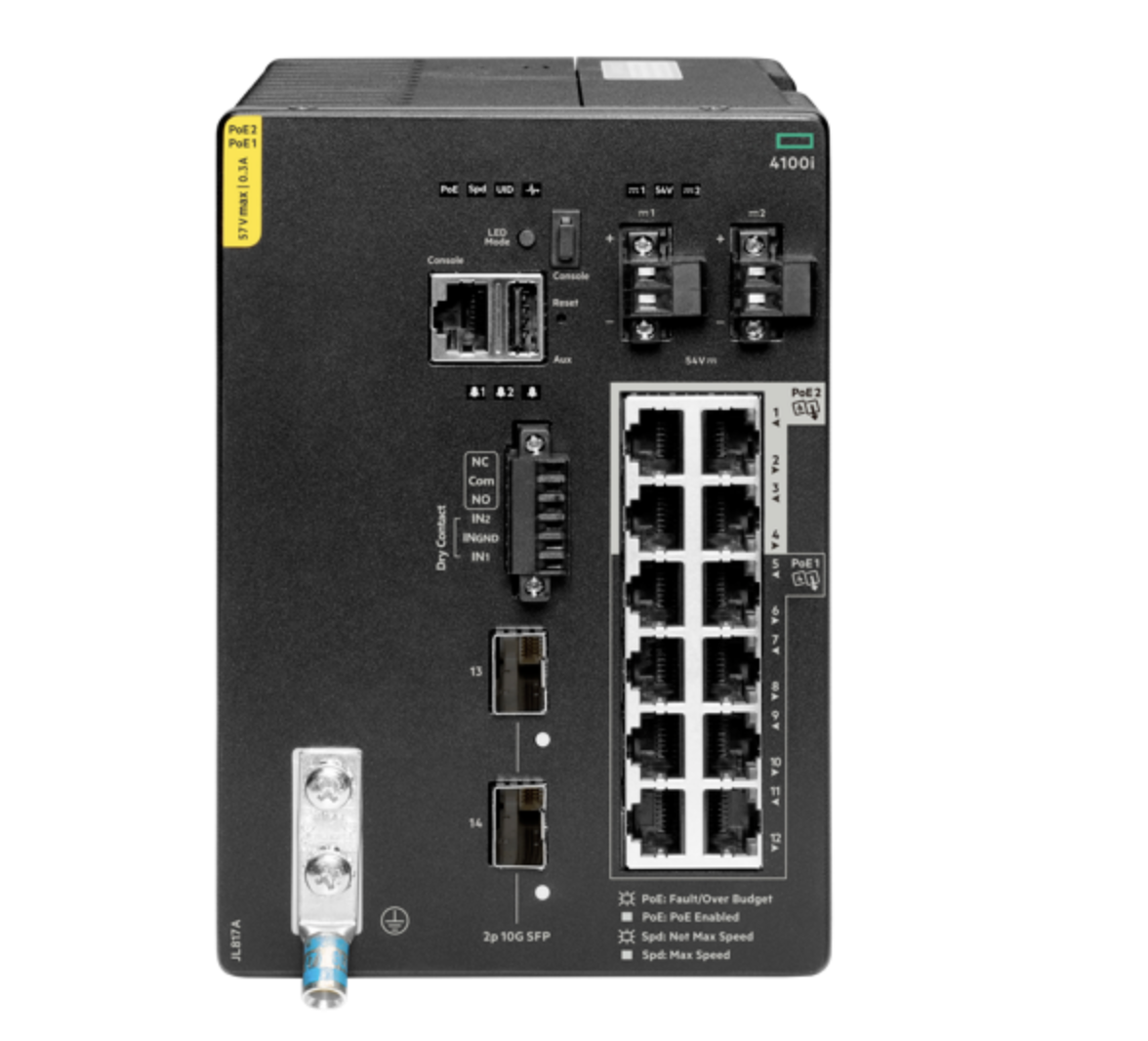

Ports 4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
2x 1G/10G SFP ports

1x USB-C Console Port
1x RJ45 Console
1x USB Type A Host port
1x Alarm socket

Latency1 Gbps: 2.390 μSec , 10 Gbps: 2.038 μSec

Average Latency (LIFO-64-bytes packets)

Routing/switching capacity Switching: up to 64 Gbps
Routing throughput: up to 46 Mpps

64 byte frames

Stacking capabilities No stacking capability

Memory and processor 4 GB DDR3
32 GB eMMC

Dual Core ARM Cortex A9 @ 1016 Mhz

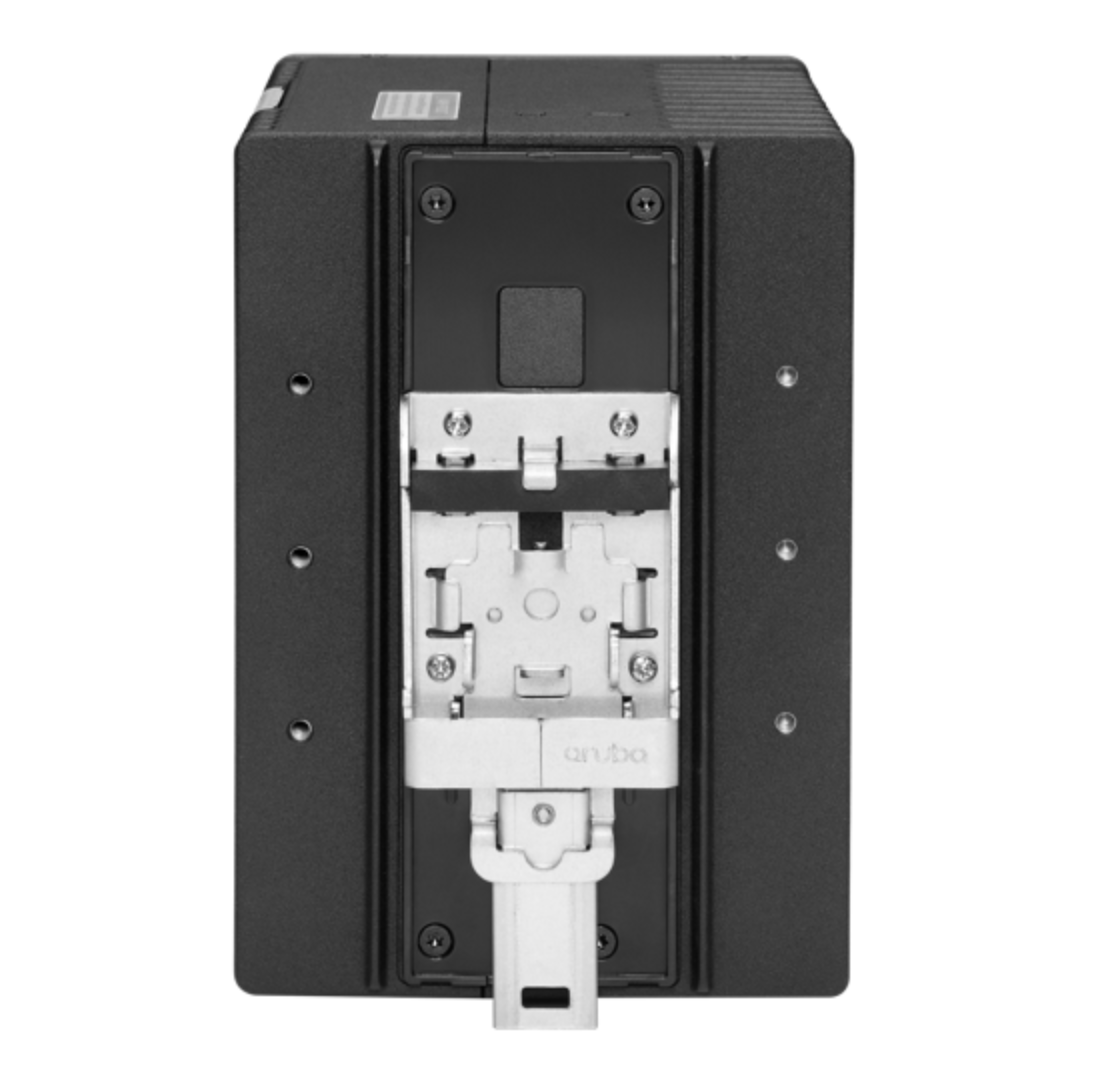

Power supply name Field replaceable Industrial DIN Rail Power Supplies Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non-sharing See external PSU specification table for available PoE power

PoE capability Refer to Installation and Getting Started Guide for the PoE budget setup.

Operating temperature -40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)

Management features Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
