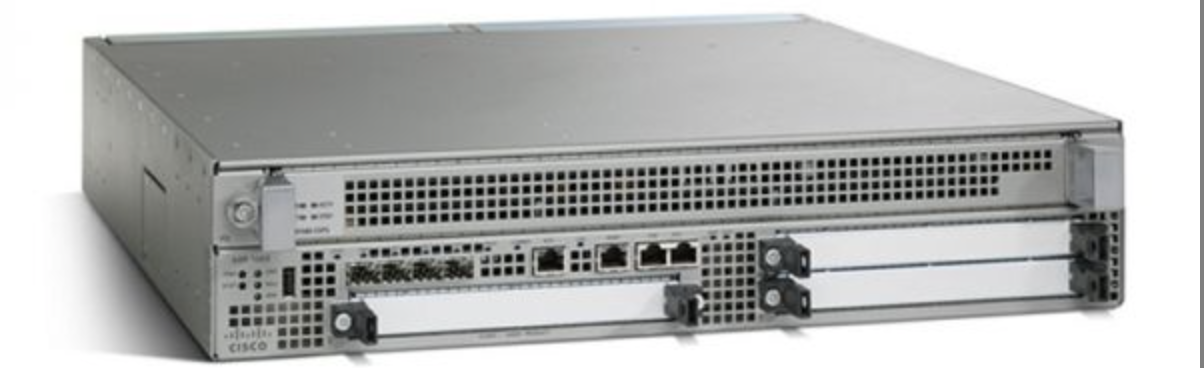

Cisco ASR 1000 Router ASR1002-10G-SHA/K9

Cisco ASR 1000 Router ASR1002-10G-SHA/K9

Engineer Team Support

7*24h Online

763 412 7282
+86 010 82830816

Email Quote

ASR1002-10G-SHA/K9 Overview

Cisco ASR 1002-10G-SHA/K9

Cisco ASR 1000 Series Aggregation Service Router

Model

Cisco ASR
1001-X

Cisco ASR
1002-X

Cisco ASR
1001-HX

Cisco ASR
1002-HX

Cisco ASR
1004

Cisco ASR
1006

Cisco ASR
1006-X

Cisco ASR
1009-X

Cisco ASR
1013

Default
memory

8-GB DRAM
shared
across route
processor,
ESP, and SIP

4-GB DRAM
shared across
route
processor,
ESP, and SIP

8-GB DRAM
shared across
route
processor,
ESP, and MIP

16-GB DRAM
shared across
route
processor,
ESP, and MIP

4-GB DRAM
RP1

8-GB DRAM
RP2

8-GB DRAM
RP2

8-GB DRAM
RP3

Number of
SIPs or
Ethernet line
cards
supported

Integrated in
chassis

Shared port
adapters

1 single-
height SPA
slot

3 SPA slots

N/A

8 SPA slots

12 SPA slots

8 SPA slots

12 SPA slots

24 SPA slots

Ethernet port
adapters

N/A

1 EPA slot

N/A

4 EPA slots

6 EPA slots

12 EPA slots

Cisco ASR
1000 Series
ESP

Integrated in
chassis

1 ESP slot

2 ESP slots

Route
processor

Integrated in
the chassis:
Cisco ASR
1001-X
Series Route
Processor
with Quad
Core
Processor

Integrated in
the chassis:
Cisco ASR
1002-X
Series Route
Processor
with Quad
Core
Processor

Integrated in
the chassis:
Cisco ASR
1001-HX
Series Route
Processor

Integrated in
the chassis:
Cisco ASR
1002-HX
Series Route
Processor

1 route-
processor
slot

2 route-
processor
slots

Redundancy

Software: Yes

Software:
Yes

Hardware:
Yes

Hardware: Yes

Hardware:
Yes

Built-in
Gigabit
Ethernet
ports

Yes: 6 Gigabit
Ethernet
Small Form-
Factor
Pluggable
(SFP) ports

Yes: 6 Gigabit
Ethernet SFP
ports

Yes: 8 Gigabit
Ethernet SFP
ports, plus
optional 4
configurable
1GE/10GE
ports

Yes: 8 Gigabit
Ethernet SFP
ports

Built-in 10
Gigabit
Ethernet port

Yes: Two 10
Gigabit
Ethernet
Small Form-
Factor Plus
Pluggable
(SFP+) ports

Note: Built-in
10-GB ports
cannot be
reduced to 1-
GB speed.

Yes, Four 10
Gigabit
Ethernet
Small Form-
Factor Plus
Pluggable
(SFP+) ports,
plus optional
4
configurable
1GE/10GE
ports

Yes: Eight 10
Gigabit
Ethernet
Small Form-
Factor Plus
Pluggable
(SFP+) ports

Note: Built-in
10-GB ports
cannot be
reduced to 1-
GB speed.

Network
interface
module

Yes

Cisco ASR
1000 Series

Cisco ASR 1001-X

Cisco
ASR
1002-X

Cisco ASR 1001-
HX

Cisco ASR 1002-
HX

Cisco ASR
1004

Cisco ASR 1006

Cisco ASR
1006-X

Cisco ASR
1009-X

Cisco ASR
1013

ESP
bandwidth

2.5 to 20 Gbps

5 to 36
Gbps

60 Gbps

100 Gbps

10 to 40 Gbps

10 to 100 Gbps

40 to 200 Gbps

40 to 200
Gbps

40 to 200 Gbps

Rack-
mounting

Yes: 19-inch

Yes: 19-
inch

Yes: 19-inch

Wall-
mounting

External USB
flash memory

1-GB USB flash-
memory support

1-GB USB
flash-
memory
support

1-GB USB flash-
memory support

1-GB USB
flash-memory
support

1-GB USB flash-
memory support

     1-GB USB
     flash-memory
     support

1-GB USB
flash-memory
support

Power input

Worldwide ranging
AC input range (85
to 264 VAC)

Worldwide ranging
DC

(-40 to -72V; 48V
nominal)

Same as
for Cisco
ASR 1002

Worldwide
ranging AC input
range (85 to 264
VAC)

Worldwide
ranging DC (-40
to -72; -48V
nominal)

Worldwide ranging
AC input range (85
to 264 VAC)

Worldwide ranging
DC

(-40 to -72; -48V
nominal)

Same as for
Cisco ASR
1002

Same as for
Cisco ASR 1002

Worldwide
ranging AC input
range (85 to 264
VAC)

Worldwide
ranging DC

(-40 to -72; -
48V nominal)

     Worldwide
     ranging AC
     input range
     (85 to 264
     VAC)

     Worldwide
     ranging DC

     (-40 to -72; -
     48V nominal)

Worldwide
ranging AC (180
to 264V; 240V;
60 or 50 Hz
nominal)

Worldwide
ranging DC

(-40.5 to -72; -
48V nominal)

Power
consumption

   ● Maximum
       (DC): 242W
   ● Maximum
       (AC): 250W
   ● Maximum
       (out): 250W

● Maxim
um
(DC):
590W
● Maxim
um
(AC):
560W
● Maxim
um
(out):
470W

   ● Maximum
       (DC): 360W
   ● Maximum
       (AC): 360W
   ● Maximum
       (out): 360W

   ● Maximum (DC):
       500W
   ● Maximum (AC):
       500W
   ● Maximum (out):
       500W

    ● Maximum
        (DC):
        1020W
    ● Maximum
        (AC):
        960W
    ● Maximum
        (out):
        765W

     ● Maximum
         (DC): 1700W
     ● Maximum
         (AC): 1600W
     ● Maximum
         (out):
         1275W
● Or
     ● Maximum
         (DC): 2100W
     ● Maximum
         (AC-high
         line): 2000W
     ● Maximum
         (out):
         1695W

    ● Maximum
       (DC): 4600W
    ● Maximum
       (AC): 4500W
    ● Maximum
       (out):
       4030W

       ● Maximum
           (DC):
           5200W
       ● Maximum
           (AC):
           5100W
       ● Maximum
           (out):
           4575W

    ● Maximum
       (DC):
       4200W
    ● Maximum
       (AC-high
       line):
       4000W
    ● Maximum
       (out):
       3390W

Airflow

Front-to-back

Front-to-
back

Front-to-back

ASR1002-10G-SHA/K9 Specification

Manufacturer

Cisco Systems, Inc

ASR1002-10G-SHA/K9 Specification

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	Cisco ASR 1002-10G-SHA/K9
Product Type	Aggregation Service Router
Form Factor	Desktop - modular - 3U
Connectivity Technology	Wired
System Bandwidth	10G
Router Processor	Quad-core 2.13Ghz processor
Build-in Gigabit Ethernet port	4 * SFP ports
Redundancy	Software (license included)
Cisco ASR 1000 Series ESP	1 ESP slot
SIP and Ethernet line card	Integrated ASR 1000-SIP10, not upgradable
Embedded hardware-based encryption	Up to 4-Gbps crypto support throughput
Rack-mounting	19-inch
DRAM Memory	4GB-shared across RP and SIP
Flash Memory	8 GB
Shared port adapters	3 SPA slots
External USB flash memory	1-GB USB flash-memory support
Cisco QuantumFlow Processor-based platform	Enables advanced services to operate at high speeds without the need for additional hardware or blades.
Hardware acceleration	Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.
Control and forwarding-plane separation	Ability to scale control plane and data plane independent of each other.
expansion Card	● 1-port OC48/STM16 POS/RPR Shared Port Adapters ● 2-port OC12/STM4 POS Shared Port Adapters ● 4-port OC-12/STM-4 POS Shared Port Adapters ● 8-port OC12/STM4 POS Shared Port Adapters ● 8-port OC-3/STM-1 POS Shared Port Adapters ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port OC192/STM64 POS/RPR XFP Optics ● SPA-2XOC12-POS with a license to use 1 port ● SPA-4XOC3-POS-V2 with a license to use 2 ports ● 1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA ● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter ● Synchronous Ethernet SPA ● 1 port OC12 STM Shared Port Adapter ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2 ● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● Cisco 10-Port Gigabit Ethernet Shared Port Adapter ● 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA	● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 2-port OC48/STM16 POS/RPR Shared Port Adapters ● 1 port OC-3c/STM-1 ATM Shared Port Adapter ● 3 port OC-3c/STM-1 ATM Shared Port Adapter ● 4-port OC-3/STM-1 POS Shared Port Adapters ● Digital Signal Processor SPA ● 1-port Channelized OC12 to DS0 SPA ● Cisco 8-Port Gigabit Ethernet Shared Port Adapter ● Cisco 4 port serial SPA ● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter ● Cisco 2-Port Gigabit Ethernet Shared Port Adapter ● 4-port OC48/STM16 POS/RPR Shared Port Adapters ● Cisco 1-Port 10GE LAN-PHY Shared Port Adapter ● Cisco 5-Port Gigabit Ethernet Shared Port Adapter ● Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter ● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA
Embedded Services Processor	● Cisco ASR1000 Embedded Services Processor, 10G ● ASR1K Embedded Services Processor,5Gbps,ASR1002 only ● Cisco ASR1K Embedded Services Processor,10G,Non Crypto
1GB USB Flash Token	MEMUSB-1024FT
Router Processor Memory	● M-ASR1K-1001-4GB ● M-ASR1K-1001-8GB ● M-ASR1K-1001-16GB
Feature License	● Unified Border Element - Enterprise Edition 100 Sessions ● Unified Border Element Ent, 100 Sessions, Redundancy ● Unified Border Element Ent, 500 Sessions, Redundancy ● Unified Border Element Ent, 1000 Sessions, Redundancy ● Unified Border Element - Enterprise Edition 4000 Sessions ● Unified Border Element Ent, 4000 Sessions, Redundancy ● Unified Border Element - Enterprise Edition 16000 Sessions ● Unified Border Element Ent, 16000 Sessions, Redundancy ● CGN RTU Feature License for up to 2M Sessions on ASR1000	● Flex. Pack Insp. Right-To-Use Feat Lic,ASR1000 Series ● Broadband Right-To-Use Feature Lic for ASR1000 Series ● DBE Base Right-To-Use Lic for Release 2.3.x and prior ● Firewall Right-To-Use Feature Lic for ASR1000 Series ● GTP add-on to Firewall RTU Feature Licence for ASR1000 ● Firewall/NAT Stateful Inter-Chassis Redundancy License ● NAT64 RTU Feature License for up to 2M Sessions on ASR1000 ● ASR1000 Lawful Intercept RTU ● Broadband Right-To-Use Feature Lic for ASR1000 Series ●DBE Base Right-To-Use Lic for Release 2.3.x and prior ● App Visibility and Control
License Include	● SASR1R1-AESK9-313S ● FLASR1-IPSEC-RTU ● FLASR1-IOSRED-RTU	● FLASR1-FPI-RTU ● FLASR1-FW-RTU
IOS XE Operating System	Cisco IOS XE Software Release 2.1

Manufacturer Part Number

Cisco ASR 1002-10G-SHA/K9

Product Type

Aggregation Service Router

Form Factor

Desktop - modular - 3U

Connectivity Technology

Wired

System Bandwidth

10G

Router Processor

Quad-core 2.13Ghz processor

Build-in Gigabit Ethernet port

4 * SFP ports

Redundancy

Software (license included)

Cisco ASR 1000 Series ESP

1 ESP slot

SIP and Ethernet line card

Integrated ASR 1000-SIP10, not upgradable

Embedded hardware-based encryption

Up to 4-Gbps crypto support throughput

Rack-mounting

19-inch

DRAM Memory

4GB-shared across RP and SIP

Flash Memory

8 GB

Shared port adapters

3 SPA slots

External USB flash memory

1-GB USB flash-memory support

Cisco QuantumFlow Processor-based platform

Enables advanced services to operate at high speeds without the need for additional hardware or blades.

Hardware acceleration

Features like QoS, crypto, and access control lists (ACLs) are processed in hardware.

Control and forwarding-plane separation

Ability to scale control plane and data plane independent of each other.

expansion Card

● 1-port OC48/STM16 POS/RPR Shared Port Adapters
● 2-port OC12/STM4 POS Shared Port Adapters
● 4-port OC-12/STM-4 POS Shared Port Adapters
● 8-port OC12/STM4 POS Shared Port Adapters
● 8-port OC-3/STM-1 POS Shared Port Adapters
● 8-port Channelized T1/E1 to DS0 Shared Port Adapter
● 1-port OC192/STM64 POS/RPR XFP Optics
● SPA-2XOC12-POS with a license to use 1 port
● SPA-4XOC3-POS-V2 with a license to use 2 ports
● 1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA
● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter
● Synchronous Ethernet SPA
● 1 port OC12 STM Shared Port Adapter
● 8-port Channelized T1/E1 to DS0 Shared Port Adapter
● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2
● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2
● Cisco 10-Port Gigabit Ethernet Shared Port Adapter
● 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA

● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2
● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2
● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2
● 2-port OC48/STM16 POS/RPR Shared Port Adapters
● 1 port OC-3c/STM-1 ATM Shared Port Adapter
● 3 port OC-3c/STM-1 ATM Shared Port Adapter
● 4-port OC-3/STM-1 POS Shared Port Adapters
● Digital Signal Processor SPA
● 1-port Channelized OC12 to DS0 SPA
● Cisco 8-Port Gigabit Ethernet Shared Port Adapter
● Cisco 4 port serial SPA
● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
● Cisco 2-Port Gigabit Ethernet Shared Port Adapter
● 4-port OC48/STM16 POS/RPR Shared Port Adapters
● Cisco 1-Port 10GE LAN-PHY Shared Port Adapter
● Cisco 5-Port Gigabit Ethernet Shared Port Adapter
● Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter
● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA

Embedded Services Processor

● Cisco ASR1000 Embedded Services Processor, 10G
● ASR1K Embedded Services Processor,5Gbps,ASR1002 only
● Cisco ASR1K Embedded Services Processor,10G,Non Crypto

1GB USB Flash Token

MEMUSB-1024FT

Router Processor Memory

● M-ASR1K-1001-4GB
● M-ASR1K-1001-8GB
● M-ASR1K-1001-16GB

Feature License

● Unified Border Element - Enterprise Edition 100 Sessions
● Unified Border Element Ent, 100 Sessions, Redundancy
● Unified Border Element Ent, 500 Sessions, Redundancy
● Unified Border Element Ent, 1000 Sessions, Redundancy
● Unified Border Element - Enterprise Edition 4000 Sessions
● Unified Border Element Ent, 4000 Sessions, Redundancy
● Unified Border Element - Enterprise Edition 16000 Sessions
● Unified Border Element Ent, 16000 Sessions, Redundancy
● CGN RTU Feature License for up to 2M Sessions on ASR1000

● Flex. Pack Insp. Right-To-Use Feat Lic,ASR1000 Series
● Broadband Right-To-Use Feature Lic for ASR1000 Series
● DBE Base Right-To-Use Lic for Release 2.3.x and prior
● Firewall Right-To-Use Feature Lic for ASR1000 Series
● GTP add-on to Firewall RTU Feature Licence for ASR1000
● Firewall/NAT Stateful Inter-Chassis Redundancy License
● NAT64 RTU Feature License for up to 2M Sessions on ASR1000
● ASR1000 Lawful Intercept RTU
● Broadband Right-To-Use Feature Lic for ASR1000 Series
●DBE Base Right-To-Use Lic for Release 2.3.x and prior
● App Visibility and Control

License Include

● SASR1R1-AESK9-313S
● FLASR1-IPSEC-RTU
● FLASR1-IOSRED-RTU

● FLASR1-FPI-RTU
● FLASR1-FW-RTU

IOS XE Operating System

Cisco IOS XE Software Release 2.1

ASR1002-10G-SHA/K9 Warranty

	Low Price Guarantee Customers can get high quality products at wholesale prices		Quality Assurance All products sold are original genuine goods, new packaging unopened
	Free CCIE Expert Technical Support We provide our customers with free CCIE technical support via phone, intelligent AI and email		Commodity Refund Guarantee For equipment purchased from us, please contact our customer service team for return and replacement services
	Diversified and Flexible Transportation Services Cargo carriers include Fedex, DHL, UPS, Aramex, TNT, EMS		Standard Policy 1 Year
