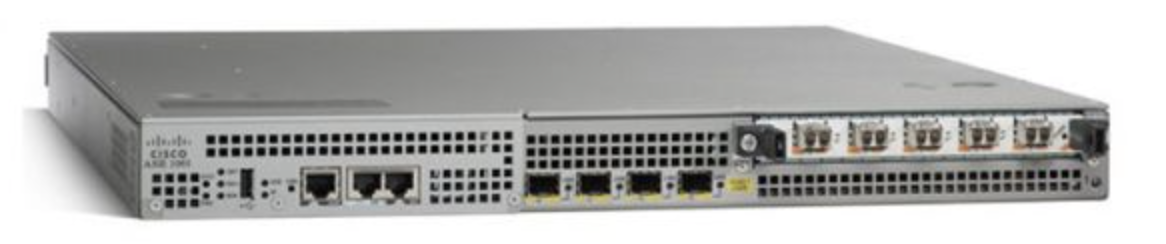

Cisco ASR 1000 Router ASR1001-5G-SECK9
ASR1001-5G-SECK9Price:US $7,750.00
Cisco ASR 1000 Router ASR1001-5G-SECK9
ASR1001-5G-SECK9 Overview
ASR1001-5G-SECK9 Overview
Cisco ASR 1000 Router ASR1001-5G-SECK9 ASR1001 VPN+FW Bundle,5G Base System, AESK9,License
| Model | Cisco ASR 1001-X | Cisco ASR 1002-X | Cisco ASR 1001-HX | Cisco ASR 1002-HX | Cisco ASR 1004 | Cisco ASR 1006 | Cisco ASR 1006-X | Cisco ASR 1009-X | Cisco ASR 1013 |
||||||
Default memory | 8-GB DRAM shared across route processor, ESP, and SIP | 4-GB DRAM shared across route processor, ESP, and SIP | 8-GB DRAM shared across route processor, ESP, and MIP | 16-GB DRAM shared across route processor, ESP, and MIP | 4-GB DRAM RP1 8-GB DRAM RP2 | 4-GB DRAM RP1 8-GB DRAM RP2 | 8-GB DRAM RP2 8-GB DRAM RP3 | 8-GB DRAM RP2 8-GB DRAM RP3 | 8-GB DRAM RP2 8-GB DRAM RP3 |
||||||
Number of SIPs or Ethernet line cards supported | Integrated in chassis | Integrated in chassis | Integrated in chassis | Integrated in chassis | 2 | 3 | 2 | 3 | 6 |
||||||
Shared port adapters | 1 single- height SPA slot | 3 SPA slots | N/A | N/A | 8 SPA slots | 12 SPA slots | 8 SPA slots | 12 SPA slots | 24 SPA slots |
||||||
| Ethernet port adapters | N/A | N/A | N/A | 1 EPA slot | N/A | N/A | 4 EPA slots | 6 EPA slots | 12 EPA slots | ||||||
Cisco ASR 1000 Series ESP | Integrated in chassis | Integrated in chassis | Integrated in chassis | Integrated in chassis | 1 ESP slot | 2 ESP slots | 2 ESP slots | 2 ESP slots | 2 ESP slots |
||||||
Route processor | Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor | Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor | Integrated in the chassis: Cisco ASR 1001-HX Series Route Processor | Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor | 1 route- processor slot | 2 route- processor slots | 2 route- processor slots | 2 route- processor slots | 2 route- processor slots |
||||||
| Redundancy | Software: Yes | Software: Yes | Software: Yes | Software: Yes | Software: Yes | Hardware: Yes | Hardware: Yes | Hardware: Yes | Hardware: Yes |
||||||
Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet Small Form- Factor Pluggable (SFP) ports | Yes: 6 Gigabit Ethernet SFP ports | Yes: 8 Gigabit Ethernet SFP ports, plus optional 4 configurable 1GE/10GE ports | Yes: 8 Gigabit Ethernet SFP ports | 0 | 0 | 0 | 0 | 0 |
||||||
Built-in 10 Gigabit Ethernet port | Yes: Two 10 Gigabit Ethernet Small Form- Factor Plus Pluggable (SFP+) ports Note: Built-in 10-GB ports cannot be reduced to 1- GB speed. | No | Yes, Four 10 Gigabit Ethernet Small Form- Factor Plus Pluggable (SFP+) ports, plus optional 4 configurable 1GE/10GE ports | Yes: Eight 10 Gigabit Ethernet Small Form- Factor Plus Pluggable (SFP+) ports Note: Built-in 10-GB ports cannot be reduced to 1- GB speed. | No | No | No | No | No |
||||||
Network interface module | Yes | No | No | Yes | No | No | No | No | No |
||||||
| Cisco ASR 1000 Series | Cisco ASR 1001-X | Cisco ASR 1002-X | Cisco ASR 1001- HX | Cisco ASR 1002- HX | Cisco ASR 1004 | Cisco ASR 1006 | Cisco ASR 1006-X | Cisco ASR 1009-X | Cisco ASR 1013 |
||||||
| ESP bandwidth | 2.5 to 20 Gbps | 5 to 36 Gbps | 60 Gbps | 100 Gbps | 10 to 40 Gbps | 10 to 100 Gbps | 40 to 200 Gbps | 40 to 200 Gbps | 40 to 200 Gbps | ||||||
| Rack- mounting | Yes: 19-inch | Yes: 19- inch | Yes: 19-inch | Yes: 19-inch | Yes: 19-inch | Yes: 19-inch | Yes: 19-inch | Yes: 19-inch | Yes: 19-inch | ||||||
| Wall- mounting | No | No | No | No | No | No | No | No | No | ||||||
External USB flash memory | 1-GB USB flash- memory support | 1-GB USB flash- memory support | 1-GB USB flash- memory support | 1-GB USB flash- memory support | 1-GB USB flash-memory support | 1-GB USB flash- memory support | 1-GB USB flash- memory support | 1-GB USB flash-memory support | 1-GB USB flash-memory support |
||||||
Power input | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72V; 48V nominal) | Same as for Cisco ASR 1002 | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal) | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal) | Same as for Cisco ASR 1002 | Same as for Cisco ASR 1002 | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; - 48V nominal) | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; - 48V nominal) | Worldwide ranging AC (180 to 264V; 240V; 60 or 50 Hz nominal) Worldwide ranging DC (-40.5 to -72; - 48V nominal) |
||||||
Power consumption | ● Maximum (DC): 242W ● Maximum (AC): 250W ● Maximum (out): 250W | ● Maxim um (DC): 590W ● Maxim um (AC): 560W ● Maxim um (out): 470W | ● Maximum (DC): 360W ● Maximum (AC): 360W ● Maximum (out): 360W | ● Maximum (DC): 500W ● Maximum (AC): 500W ● Maximum (out): 500W | ● Maximum (DC): 1020W ● Maximum (AC): 960W ● Maximum (out): 765W | ● Maximum (DC): 1700W ● Maximum (AC): 1600W ● Maximum (out): 1275W ● Or ● Maximum (DC): 2100W ● Maximum (AC-high line): 2000W ● Maximum (out): 1695W | ● Maximum (DC): 4600W ● Maximum (AC): 4500W ● Maximum (out): 4030W | ● Maximum (DC): 5200W ● Maximum (AC): 5100W ● Maximum (out): 4575W | ● Maximum (DC): 4200W ● Maximum (AC-high line): 4000W ● Maximum (out): 3390W |
||||||
| Airflow | Front-to-back | Front-to- back | Front-to-back | Front-to-back | Front-to-back | Front-to-back | Front-to-back | Front-to-back | Front-to-back | ||||||
| Operating temperature (nominal) | 32 to 104°F (0 to 40°C) | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X |
||||||
| Operating temperature (short-term) | 32 to 122°F (0 to 50°C) | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X |
||||||
Operating humidity (nominal) (relative humidity) | 10 to 85% | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X |
||||||
Operating humidity (short-term) | 5 to 90% | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1002 |
||||||
Storage temperature | -40 to 150°F (-40 to 70°C) | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X |
||||||
| Storage humidity (relative humidity) | 5 to 95% | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X |
||||||
Operating altitude | -500 to 10,000 feet (- 152 to 3048 meters) | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X | Same as for Cisco ASR 1001-X |
||||||
Network Equipment Building Standards (NEBS) | GR- 1089 and GR- 63 | GR- 1089 and GR- 63 | GR- 1089 and GR- 63 | GR- 1089 and GR- 63 | GR- 1089 and GR-63 | GR- 1089 and GR-63 | GR- 1089 and GR-63 | GR- 1089 and GR-63 | GR- 1089 and GR-63 |
||||||
Safety Standard | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1- 03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1- 03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 | UL60950- 1 CSA C22.2 No. 60950- 1-03 EN 60950- 1 IEC 60950- 1 AS/NZS 60950.1 |
||||||
ASR1001-5G-SECK9 Specification
ASR1001-5G-SECK9 Specification
| Manufacturer | Cisco Systems, Inc | |
| Manufacturer Part Number | Cisco ASR 1001 | |
| Product Type | Aggregation Service Router | |
| Form Factor | Desktop - modular - 3U | |
| Connectivity Technology | Wired | |
| System Bandwidth | 5G | |
| Router Processor | Dual-core 2.2Ghz processor | |
| Build-in Gigabit Ethernet port | 4 * SFP ports | |
| Redundancy | Software | |
| SIP and Ethernet line card | Integrated in chassis; not upgradable | |
| Embedded hardware-based encryption | up to 1.8-Gbps crypto support throughput | |
| Rack-mounting | 19-inch | |
| DRAM Memory | 4GB | |
| Flash Memory | 8 GB | |
| Shared port adapters | 1 SPA slot | |
| External USB flash memory | 1-GB USB flash-memory support | |
| Scalable Capacity and Throughput | ||
| Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. | |
| Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. | |
| Control and forwarding-plane separation | Ability to scale control plane and data plane independent of each other. | |
| expansion Card | ● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter ● Digital Signal Processor SPA ● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA ● SPA-2XOC12-POS with a license to use 1 port ● SPA-4XOC3-POS-V2 with a license to use 2 ports ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2 ● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● Cisco 4 port serial SPA ● Cisco 5-Port Gigabit Ethernet Shared Port Adapter ● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter ● Cisco 8-Port Gigabit Ethernet Shared Port Adapter ● 8-port OC12/STM4 POS Shared Port Adapters | ● 4-port OC-3/STM-1 POS Shared Port Adapters ● Cisco 1-Port 10GE LAN-PHY Shared Port Adapter ● 1 port OC12 STM Shared Port Adapter ● 1 port OC-3c/STM-1 ATM Shared Port Adapter ● 1-port OC48/STM16 POS/RPR Shared Port Adapters ● Cisco 2-Port Gigabit Ethernet Shared Port Adapter ● 2-port OC12/STM4 POS Shared Port Adapters ● 2-port OC48/STM16 POS/RPR Shared Port Adapters ● 3 port OC-3c/STM-1 ATM Shared Port Adapter ● Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter ● 4-port OC-12/STM-4 POS Shared Port Adapters ● 4-port OC48/STM16 POS/RPR Shared Port Adapters ●8-port OC-3/STM-1 POS Shared Port Adapters ● 1-port OC192/STM64 POS/RPR XFP Optics |
| 1GB USB Flash Token | MEMUSB-1024FT | |
| Router Processor Memory | ● M-ASR1K-1001-4GB ● M-ASR1K-1001-8GB ● M-ASR1K-1001-16GB | |
| Feature License | ● Unified Border Element - Enterprise Edition 100 Sessions ● Unified Border Element Ent, 100 Sessions, Redundancy ● Unified Border Element Ent, 4000 Sessions, Redundancy ● Unified Border Element - Enterprise Edition 4000 Sessions ● Appl. Visibility and Control License for ASR1000 Series ● Broadband RTU and 500 Sessions License for ASR1000 Series ● Flex. Pack. Insp License for ASR1000 Series | ● CGN RTU Feature License for up to 2M Sessions on ASR1000 ● GTP add-on to Firewall RTU Feature Licence for ASR1000 ● Firewall/NAT Stateful Inter-Chassis Redundancy License ● SW Redundancy License for ASR1000 Series ● Lawful Intercept License for ASR1000 Series ● FW License for ASR1000 Series |
| License Include | ● SASR1001UK9-313S ● FLS-ASR1001-5G | ● FLASR1-IPSEC ● FLSASR1-FW |
| Managed Services Software | ● Cisco ASR1001 IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL MS ● Cisco ASR1001 IOS XE - UNIVERSAL MS ● Cisco ASR1001 IOS XE - ENCRYPTION UNIVERSAL MS | |
| System Software license | ● IP base license ● Advanced Enterprise service license ● IP services license | |
| IOS XE Operating System | Cisco IOS XE Software Release 3.2.0S | |
