CE6800

CE6857

CE6857-48S6CQ-EI

CE6857EI

V200R005C10 to V200R019C10

NOTE:

This model is not supported in V200R005C20.

Physical specifications

• Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
• Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 7.6 Kg (16.76 lb)

Environment parameters

Temperature

• Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)

  NOTE:

  When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

• Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)

• Back-to-front airflow: < 53 dBA
• Front-to-back airflow: < 52 dBA

Power specifications

Power source type

AC

AC power input

• Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
• Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input

• Rated voltage range: -48 V DC to -60 V DC
• Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current

• 350 W DC power (PDC350S12 series): 11 A (-48 V DC to -60 V DC)

• 600 W AC power (PAC600S12 series): 9 A (100 V AC to 240 V AC)

Chassis power consumption

Maximum power consumption

287 W

Typical power consumption

152 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules)

195 W (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)

Chassis heat dissipation

Maximum heat dissipation

979 BTU/Hr

Typical heat dissipation

519 BTU/Hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules)

665 BTU/Hr (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)

Surge protection

Power module:

• AC: 6 kV in common mode and 6 kV in differential mode
• DC: 4 kV in common mode and 2 kV in differential mode

Heat dissipation

Heat dissipation mode

Air cooling

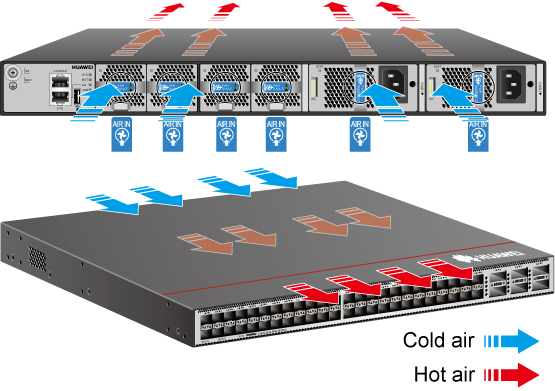

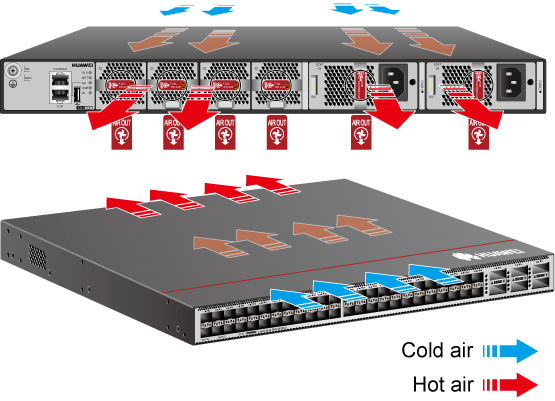

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability

Power module backup

1+1 backup

Fan module backup

The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

45.3 years

Mean time to repair (MTTR)

1.68 hours

Availability

0.99999576002

Technical specifications

Processor

1.4 GHz, four-core

DRAM Memory

4 GB

NOR Flash

64 MB

NAND Flash

2 GB

Stack

Service port supporting the stack function

10GE optical ports, 40GE optical ports, and 100GE optical ports

Certification

• Safety standards compliance
• EMC standards compliance
• Environmental standards compliance
