CE5855-48T4XS Overview
CE5855-48T4XS is one of the Huawei CloudEngine 5800 Series Switch, which delivers high gigabit access, enabling enterprises and carriers to build cloud-oriented data center networks. Featuring 40 GE uplink ports and flexible airflow capabilities, the switches are capable of forming a 9-member stack system and are well-suited for either the aggregation or the access layer. Coupled with CloudEngine 16800 or 12800 series switches, CloudEngine 5800 enables enterprises to build networks that are scalable, simplified, open — and secure.

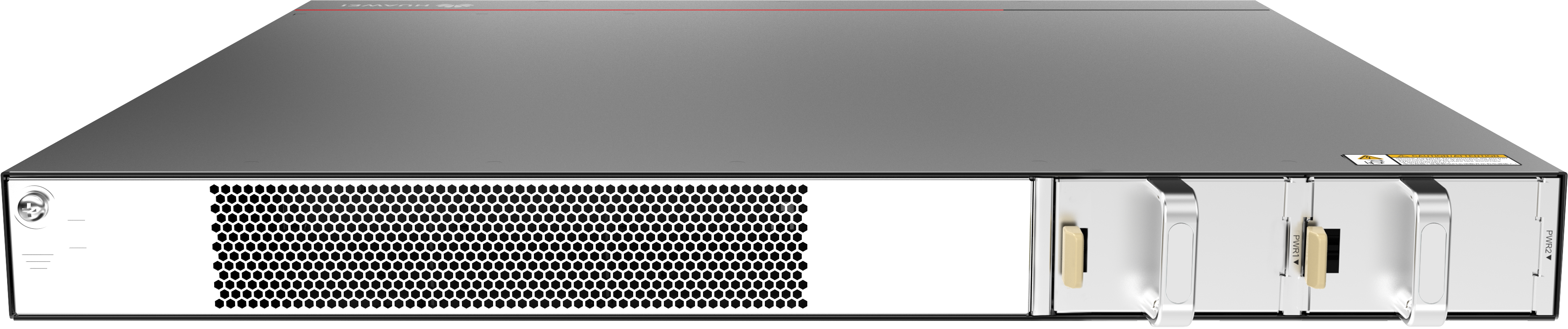

CE5855-48T4XS
CE5855-48T4XS Key Features：
48*GE RJ45, 4*10GE SFP, 2*AC Power Modules, Built-in Fans, Port-side Intake
CE5855-48T4XS Specification
| Other part numbers | 98012270 (CE5855-48T4XS switch (48*GE RJ45, 4*10GE SFP, Built-in Fans, Port-side Intake, Without Power Modules)) |
| 98012402 (CE5855-48T4XS switch Bundle B0(including two CE5855-48T4XS switch (48*GE RJ45, 4*10GE SFP, 2*AC Power Modules, Built-in Fans, Port-side Intake))) | |
| Installation Type | Rack and workbench |
| Depth [mm] | 420.0 mm |
| Chassis height [U] | 1 |
| Wide [mm] | 442.0 mm |
| Height [mm] | 43.6 mm |
| Weight with packaging [kg(lb)] | 7.74 kg (17.06 lb) |
| Weight without packaging [kg(lb)] | 4.61 kg (10.16 lb) |
| Maximum power consumption [W] | - 65 W (with two 180 W AC power modules) |
| - 93 W (with two 1200 W DC power modules) | |
| Typical power consumption [W] | 39 W |
| Static power consumption [W] | 25 W |
| Heat dissipation mode | Air cooling, intelligent speed adjustment |
| Maximum heat dissipation [BTU/hour] | - 220 BTU/hour (with two 180 W AC power modules) |
| - 318 BTU/hour (with two 1200 W DC power modules) | |
| Typical heat dissipation [BTU/hour] | 133 BTU/hour |
| Static heat dissipation [BTU/hour] | 87 BTU/hour |
| Power supply mode | AC pluggable,DC pluggable,HVDC pluggable |
| Rated input voltage [V] | - AC input: 100 V AC to 240 V AC; 50/60 Hz |
| - High-voltage DC input: 240 V DC | |
| - DC input: –48 V DC to –60 V DC | |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz |
| - High-voltage DC input: 190 V DC to 290 V DC | |
| - DC input: –38.4 V DC to –72 V DC | |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | DRAM: 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| NAND Flash | 1 GB |
| USB | Supported |
| Console port | RJ45 |
| Downlink Service interface | 48*10/100/1000BASE-T |
| Uplink Service interface | 4*10G SFP |
| Service port supporting the stack function | 2 x 12G stacking |
| RTC | Not supported |
| Switching capacity [bps,bit/s] | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Redundant power supply | 1+1 |
| Power modules without fans and power modules with fans cannot be installed in the same chassis. | |
| Number of power modules | 2 |
| Power supply surge protection | - Configured with AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| - Configured with DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Types of fans | Built-in |
| Number of fans | 2 |
| Airflow direction | Air intake from left, front, and right and air exhaust from rear |
| Storage temperature [°C(°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
| MTBF [year] | 124.62 years |
| MTTR [hour] | 2 hours |
| Noise at high temperature (40°C, sound pressure) | 46.6 db(A) |
| Noise at normal temperature (27°C, sound pressure) | Average: 29.9 dB(A); max: 32.9 dB(A) |
| Availability | >0.99999 |
