FPM-7620F Overview
The FortiGate 7000F Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. This approach weaves security deep into their datacenter and across their hybrid IT environment, protecting any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 7000F Series delivers coordinated, automated, end-to-end threat protection across all use cases. The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 7000F automatically controls, verifies, and facilitates user access to applications, delivering consistent convergence with a seamless user experience across your distributed network.
The industry’s first integrated zero-trust network access (ZTNA) enforcement within an NGFW solution, the FortiGate 7000F automatically controls, verifies, and facilitates user access to applications, reducing lateral threats by providing access only to validated users for seamless user experience.

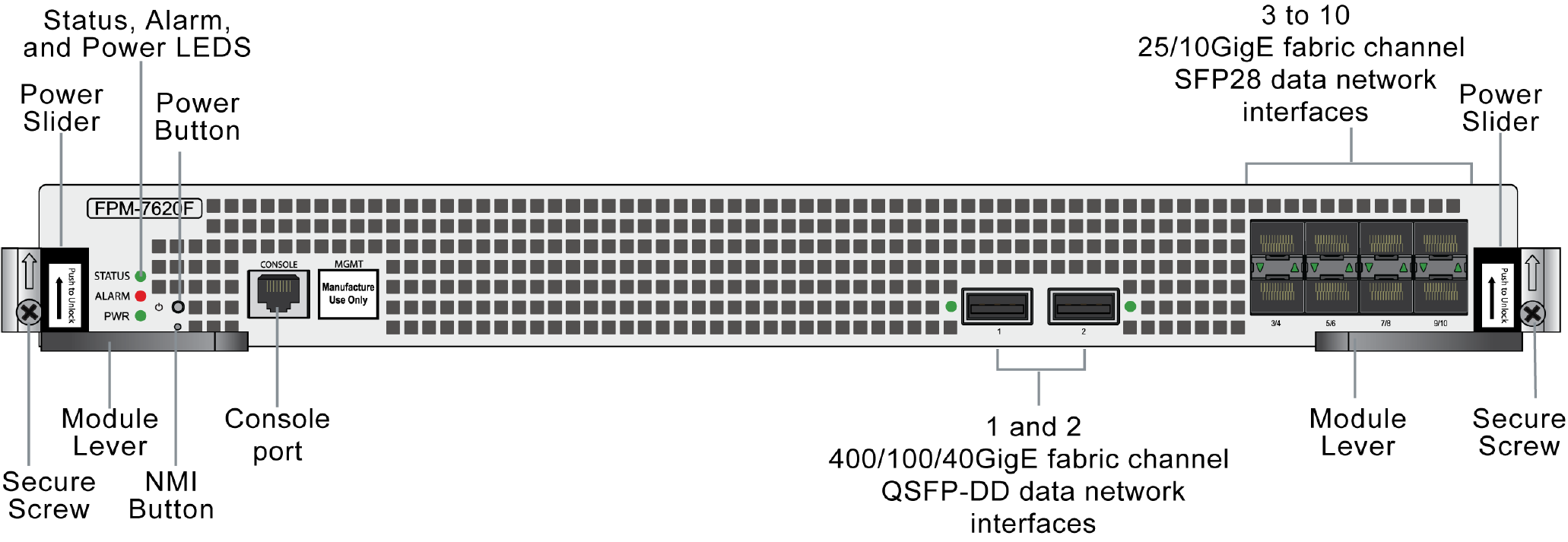

FPM-7620F Module/FPM-7620F: Hot swappable processing module for 7xxxF series - FortiASIC NP7 and CP9 hardware accelerated. 2x QSFP28 and 8x SFP28 ports.
FPM-7620F Specification
| Hardware Accelerated 400 GE QSFP-DD / 100 GE QSFP28 / 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots | 8 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | N.A. |
| Signed Firmware Hardware Switch | N.A. |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP packets) | 396 / 395 / 263 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP packets) | 396 / 395 / 263 Gbps |
| Firewall Latency (64 byte, UDP) | 7.50 μs |
| Firewall Throughput (Packet per Second) | 39 286 Mpps |
| Concurrent Sessions (TCP) | 100 Million |
| New Sessions/Sec (TCP) | 900K |
| Firewall Policies (system wide) | 200 000 |
| IPsec VPN Throughput (512 byte) | 63 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 4000 |
| Client-to-Gateway IPsec VPN Tunnels | 26 000 |
| SSL-VPN Throughput | 13.7 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30 000 |
| IPS Throughput (Enterprise Mix) | 67.5 Gbps |
| SSL Inspection Throughput | 54 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 48 000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 10 Million |
| Application Control Throughput (HTTP 64K) | 150 Gbps |
| NGFW Throughput | 55 Gbps |
| Threat Protection Throughput | 52 Gbps |
| CAPWAP Throughput | N.A. |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiTokens | 2000 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | N.A. |
| High Availability Configurations | Active-Passive, Active-Active |
| Height x Width x Length (inches) | 1.69 × 17.11 × 18.56 |
| Height x Width x Length (mm) | 43 × 435 × 471 |
| Weight | 16.19 lb. (7.35 kg) |
| Power Consumption (Average / Maximum) | 675 W / 716 W |
| Current (Maximum) | 60A |
| Heat Dissipation (Average) | 2442 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -13°F to 158°F (-25°C to 70°C) |
| Humidity | 5% to 90% non-condensing |
| Certifications | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Special Remarks | NP7 + CP9 ASIC processing blade; fabric ports for chassis interconnection, no local onboard storage |
