ClickShare C-10 Interactive wireless presentation for meeting space
ClickShare C-10ClickShare C-10 Interactive wireless presentation for meeting space
ClickShare C-10 Overview
ClickShare C-10 brings interactive wireless presentation to any meeting space. Content sharing is simple, with just one click on the ClickShare Button (Windows or Mac) or the ClickShare App (laptop, mobile or tablet). Start presenting within seconds: no cables, no software to download, no training needed.
ClickShare C-10 Specification
 Productspecifications
CLICKSHARE C-10 |
|||||
| General specifications | |||||
| Operating system | Windows 10 and higher macOS 11 (BigSur)
and higher Android v9 and higher (ClickShare App)* iOS 12 and higher (ClickShare App)* |
||||
| System requirements | For a smooth experience with Microsoft
Teams or Zoom Minimum: Intel i3 dual-core processor or AMD Ryzen 7 / 8GB RAM / OS: Windows 10 latest build or Mac OS Mojave latest build Recommended: Intel i5 4-core processor or AMD Ryzen 9 / 8GB RAM / OS: Windows 11 latest build or Mac OS latest build |
||||
| Video outputs | 4K UHD (3840*2160) @ 30Hz. HDMI™ 1.4b or USB-C DisplayPort 1.2 (only Gen2) | ||||
| Audio output | HDMI | ||||
| USB | 1 X USB-A, 1 X USB-C | ||||

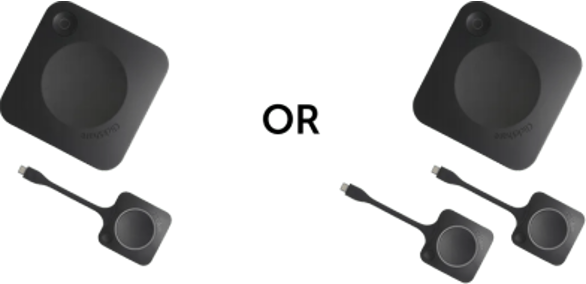

| ClickShare Buttons | 1 or 2 | ||||
| ClickShare App | Desktop & Mobile | ||||
| Native protocols | Airplay, Google Cast, Miracast* | ||||
| Maximum sources simultaneously on screen | 2 | ||||
| Noise Level | Max. 25dBA @ 0-30°C Max. 30dBA @ 30-40°C |
||||
| Authentication protocol | WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode |
||||
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 | ||||
| Reach | Adjustable with signal strength
modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base
Unit Frequency band 2.4 GHZ and 5 GHz |
||||
| Frequency band | 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries) | ||||
| Connections | 1x Ethernet LAN 1Gbit 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) -only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front) |
||||
| Temperature range | Operating: 0°C to +40°C (+32°F to
+104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F) |
||||
| Humidity | Storage: 0 to 90% relative humidity,
non-condensing Operation: 0 to 85% relative humidity, non-condensing |
||||
| Anti-theft system | Kensington lock | ||||
| Certifications | FCC/CE | ||||
| Touch screen support & Interactivity | Yes | ||||
| Room Dock (peripheral support) | No | ||||
| Local view | Yes | ||||
| Network connection | LAN & WiFi | ||||
| Management and reporting | Yes | ||||
| Warranty | 1 year standard. 5 years coverage upon registering via SmartCare | ||||
| * | * depends on configuration, available in future firmware updates | ||||
| ClickShare Base Unit dimensions | |||||
| Dimensions (HxWxD) | 34 mm x 135 mm x 135 mm | ||||
| Power consumption | Operational: 5-10W, 24W Max | ||||
| Power supply | Operational: 5-10W, 24W Max | ||||
| Weight | 900 gr | ||||
