Barco ClickShare X-Display 65
ClickShare X-Display 65Barco ClickShare X-Display 65
ClickShare X-Display 65 Overview

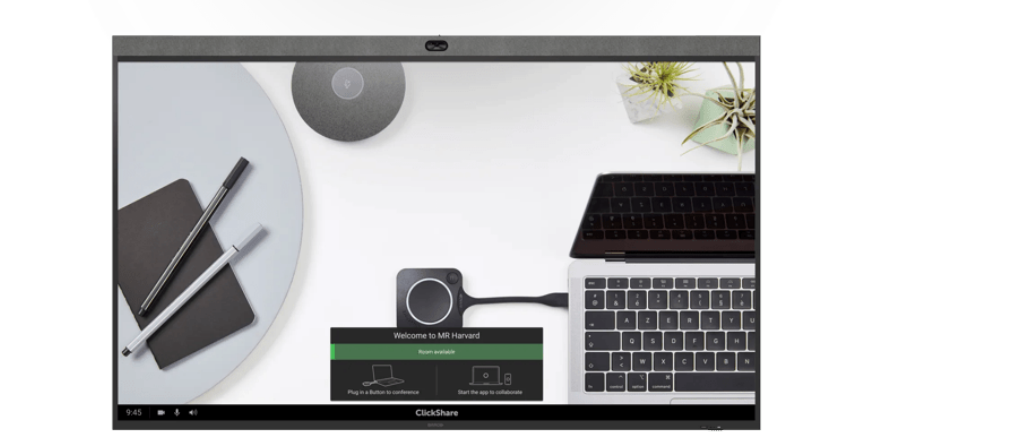

Barco ClickShare X-Display 65” ClickShare X-Display, designed around your laptop (BYOM), integrates advanced audio, video, and display capabilities to deliver a seamless hybrid meeting
| ● 16 Microphone array with a 12-meters range for precise audio capture ● AI-driven noise reduction, AI sound masking, and echo cancellation ● High-quality, immersive stereo sound ● 4K 50-megapixel ultra- clear camera ● 400nits high-brightness anti-glare display for clear visibility ● Expandable with a variety of third-party peripherals |
ClickShare X-Display is a cutting-edge solution that integrates audio, video, display, and collaboration features, designed to elevate hybrid working environments. Featuring a 16 Microphone array and a 4K 50-megapixel high-definition camera, it guarantees a superior audio-visual experience. Fully compatible with major cloud platforms and devices, it ensures a seamless, efficient, and stable meeting experience with minimal setup required. |
|||||
ClickShare X-Display 65 Specification
| Productspecifications CLICKSHARE X-DISPLAY 65” | ||||||
| Display | ||||||
| Size | 65-inch | |||||
| Type | LCD | |||||
| Resolution | 4K UHD (3840*2160) | |||||
| Contrast ratio | 4000Ⅱ1 | |||||
| Brightness | 400 cd/m2 ⅡtypicalⅡ | |||||
| Color gamut | 94% P3ⅡtypicalⅡ | |||||
| Color accuracy | ⅡE | |||||
| Backlight type | D-LED | |||||
| Panel | • Anti-glare • Anti-ambient light interference, Clearer display |
|||||
| Refresh Rate | 60Hz | |||||
| Camera | ||||||
| Pixels | 50 MP | |||||
| Sensor source | SONY | |||||
| Resolution | 4K, 1080p, 720p at 30fps | |||||
| FOV | 99° | |||||
| Pixel size | 1.0 um | |||||
| ZOOM | 5x digital zoom | |||||
| WDR | Yes | |||||
| Distortion correction | Yes | |||||
| Lens cap | Manual slide cover | |||||
| AI function | ||||||
| Group Framing | Yes | |||||
| Composition mode | YesⅡup to 8 peopleⅡ | |||||
| Speaker framing | Yes | |||||
| Intelligent tracking | YesⅡSpeaker framing with panoramic viewⅡ | |||||
| AI soundscreen | YesⅡ30º/60º/90º/180º -4 level availableⅡ | |||||
| Speaker AI adaptive | Yes ⅡAccording to the different acoustic environment of the meeting space, the sound effect of the Speaker is automatically adjusted to fit the current meeting spaceⅡ |
|||||
| Microphone | ||||||
| Quantity | 16 beamforming MEMS microphones | |||||
| Hardware accelerated audio processing | Yes | |||||
| Pickup distance | up to 12 meters | |||||
| Sound pickup angle | 180° | |||||
| Echo cancellation | Yes | |||||
| Noise suppression | YesⅡMore than 300 types of noise can be suppressedⅡ | |||||
| Automatic gain control | Yes | |||||
| Dereverberation | Yes | |||||
| Speaker | ||||||
| Channel | 2.1 Channel stereo | |||||
| Quantity | 5 Speaker units (separate bass speakers) | |||||
| Frequency Domain | 60 Hz to 20KHz | |||||
| Output Power | 2x15W+20W | |||||
| Position | Top | |||||
| General specifications | ||||||
| Dimensions (W*D*H) | 1465.1*77.7*912mm | |||||
| Weight | 35.185 kgⅡgross weightⅡ 30.19 kgⅡnet weightⅡ | |||||
| Expansion capability | ||||||
| Support extend Microphone (Cascade mode) | YesⅡup to 4 ClickShare Wireless SpeakerphoneⅡ | |||||
| Third-party USB peripherals | Yes | |||||
| OPS | CX-MⅡoptionalⅡ | |||||
| Connections | ||||||
| HDMI IN | 2ⅡHDMI 2.0Ⅱ | |||||
| HDMI OUT | 1Ⅱ1080p / 2160pⅡ | |||||
| USB-C (front) | 1ⅡfrontⅡ | |||||
| USB-C (board) | 1ⅡboardⅡ | |||||
| USB-B (2.0) | 1 | |||||
| USB-A (3.0) | 2 | |||||
| USB-A (2.0) | 1Ⅱonly for X-Display upgradingⅡ | |||||
| RJ45 (MIC IN) | 1Ⅱconnect to ClickShare Wireless SpeakerphoneⅡ | |||||
| Audio Out | 1ⅡSPDIFⅡ | |||||
| RS232 | 1ⅡDB9, 1Ⅱ | |||||
| RJ45 (1Gbps) | 2ⅡEthernetⅡ | |||||
| Accessories | ||||||
| Cable | Power cord x 1 | |||||
| Remote control | 1 | |||||
| Wall-mounted bracket | Yes | |||||
| Floor stand | Optional | |||||
| Storage Box | Yes | |||||
| Type-C Cable | Yes | |||||
| Power | ||||||
| Power Supply | AC100 to 240V, 50/60Hz | |||||
| Power Cord | China, length 3Meters | |||||
| Max Operating Power Consumption | < 180W | |||||
| Max Standby Power Consumption | < 0.5W | |||||
| Environment | ||||||
| Operation Temperature | 0°C~40°C | |||||
| Operation Humidity | 10% ~ 90% RH | |||||
| Storage Humidity | 10% ~ 90% RH | |||||
| Storage Temperature | -20°C~60°C | |||||
| Altitude | Ⅱ 5000metres | |||||
| Compliance | ||||||
| EMC/Saftey | CCC/CE | |||||
| Energy | China Energy LabelⅡⅡ2Ⅱ | |||||
| RoHS | China RoHS | |||||
