Barco ClickShare CX-30 Seamless wireless conferencing
CX-30Barco ClickShare CX-30 Seamless wireless conferencing
CX-30 Overview

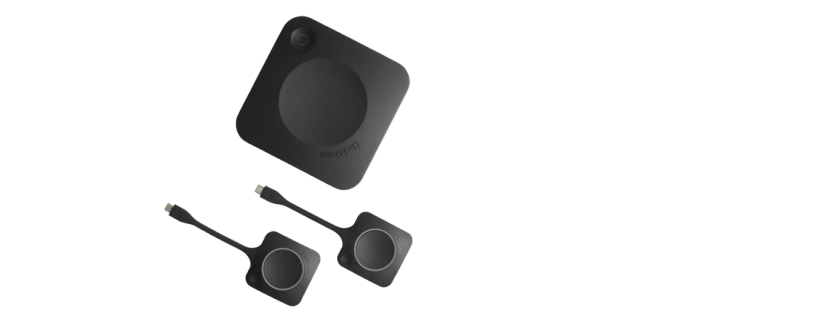

Barco ClickShare CX-30 Seamless wireless conferencing for small to medium-sized meeting and conference rooms
| ● Interactive features: touchback, annotation and blackboarding |
ClickShare CX-30 enables wireless conferencing in medium-sized meeting spaces. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays. |
|||
| ● Increased collaboration with 2 sources on screen ● Run video meetings from your laptop with Button or App ● 100% secure, encrypted and cloud-managed |
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests. |
|||
CX-30 Specification
| General specifications | |||||
| Operating system | Windows 10 and higher macOS 11 (BigSur) and higher Android v11 and higher (ClickShare App) iOS 14 and higher (ClickShare App) |
||||
| System requirements | For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor or AMD Ryzen 7 / 8GB RAM / OS: Windows 10 latest build or Mac OS Mojave latest build Recommended: Intel i5 4-core processor or AMD Ryzen 9 / 8GB RAM / OS: Windows 11 latest build or Mac OS latest build |
||||
| Video outputs | 4K UHD (3840*2160) @ 30Hz. HDMI™ 1.4b or USB-C DisplayPort 1.2 (only Gen2) | ||||
| Audio output | USB, HDMI | ||||
| USB | 1 X USB-A, 1 X USB-C | ||||
| ClickShare Buttons | 2 | ||||
| ClickShare App | Desktop & Mobile | ||||
| Native protocols | Airplay, Google Cast, Miracast | ||||
| Maximum sources simultaneously on screen | 2 | ||||
| Noise Level | Max. 25dBA @ 0-30°C Max. 30dBA @ 30-40°C |
||||
| Authentication protocol | WPA2-PSK in stand alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode |
||||
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 | ||||
| Reach | Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZ and 5 GHz (DFS) |
||||
| Frequency band | 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries) | ||||
| Connections | 1x Ethernet LAN 1Gbit 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) -only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front) |
||||
| Temperature range | Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F) |
||||
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
||||
| Anti-theft system | Kensington lock | ||||
| Certifications | FCC/CE | ||||
| Touch screen support & Interactivity | Yes | ||||
| Wireless conferencing | via App or Button | ||||
| Local view | Yes | ||||
| Network connection | LAN & WiFi | ||||
| Management and reporting | Yes | ||||
| Warranty | 1 year standard. 5 years coverage upon registering via SmartCare | ||||
| ClickShare Base Unit dimensions | |||||
| Dimensions (HxWxD) | 34 mm x 135 mm x 135 mm | ||||
| Power consumption | Operational: 5-10W, 24W Max | ||||
| Power supply | Standard 110/220 V AC plug or USB-C (only Gen2) | ||||
| Weight | 900 gr | ||||
