CLICKSHARE CSE-800 SET Wireless presentation and collaboration system
CSE-800CLICKSHARE CSE-800 SET Wireless presentation and collaboration system
CSE-800 Overview

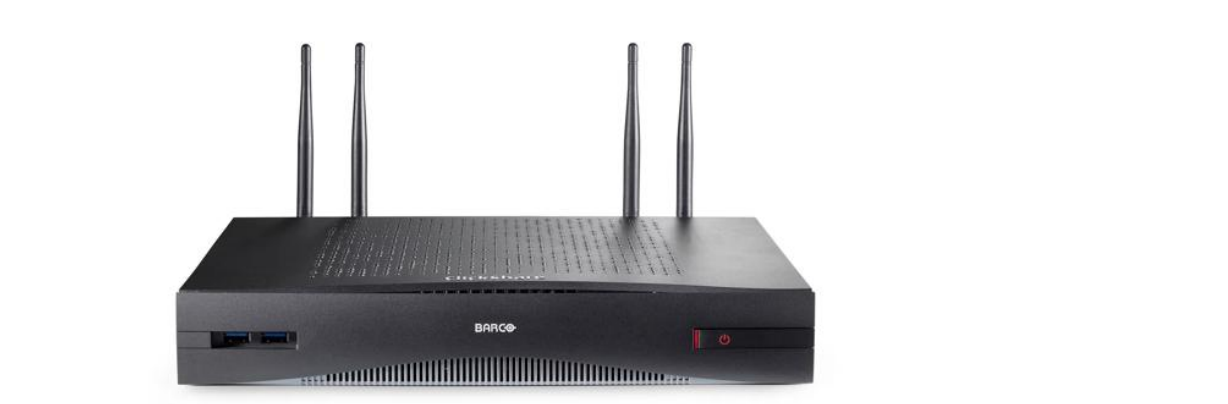

Barco ClickShare CSE-800 Wireless presentation and collaboration system for boardrooms and conference rooms
The CSE-800 was designed to bring the ClickShare experience to boardrooms, high-end meeting rooms, and conference rooms. Introducing a number of unique features, including simultaneous
sharing of up to 8 people, automatic & manual moderation, and blackboarding & annotation, the CSE-800 is the most powerful system in the ClickShare family today. The CSE-800 was designed for
enterprise rollouts and offers enhanced security features, a wider range of connectivity options – including AirPlay and Google Cast support for non-HDCP content – and central management. Users
simply plug a USB-powered device – the ClickShare Button – into their PC or Mac and click the Button to get the content from their laptop on the large meeting room screen. With the ClickShare Apps,
users can also share content from their laptops, mobile phones or tablets. Make sure to have the latest firmware installed on your Base Unit to enable the best experience with the Desktop App.
CSE-800 Specification
| General specifications | |||
| Operating system | Windows 10 32 & 64 bit macOS 10.14/10.15 (Catalina) Android 9 & 10 (ClickShare app) iOS 11, 12 & 13 (ClickShare app) |
||
| Video outputs | 2x HDMI 1.4b | ||
| Video inputs | 2x HDMI 1.4b | ||
| Output resolution | 4K DCI (4096x2160) @ 60Hz | ||
| Input resolutions | 4K DCI (4096x2160) @ 60Hz | ||
| Audio | Via HDMI, analog via Audio Jack 3.5mm, S/PDIF | ||
| AirPlay Support | iOS 11, 12 & 13 / macOS 10.14, 10.15 | ||
| Google Cast Support | Android 9, 10 | ||
| Frame rate | Using HDMI inputs: Up to 60fps with one input @ 4K Up to 30fps with two inputs @ 4K* Using the ClickShare Button or Apps: Up to 30 fps @1080p |
||
| Number of sources simultaneous on screen | 8 (4 per screen) | ||
| Number of simultaneous connections | 40 (Button and/or App) | ||
| iPad, iPhone and Android compatibility | Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app or using AirPlay / Google Cast |
||
| Extended desktop | Available for Windows, requires ClickShare Extension Pack. | ||
| Authentication protocol | WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode |
||
| Wireless transmission protocol | IEEE 802.11 a/b/g/n and IEEE 802.15.1 | ||
| Reach | Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit | ||
| Frequency band | 2.4 GHZ and 5 GHz (not all DFS channels supported. Full details can be found in the network deployment whitepaper) | ||
| Connections | 2x Ethernet LAN 1Gbit 2x USB 2.0; 2x USB 3.0 (back); 2x USB 3.0 (front) Audio analog line out on mini jack socket (3.5mm), digital S/PDIF |
||
| Noise Level | Max. 25dBA @ 0-30°C Max. 30dBA @ 30-40°C |
||
| Temperature range | Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F) |
||
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
||
| Anti-theft system | Kensington lock | ||
| Certifications | FCC/CE | ||
| Warranty | 3 years standard Possible to extend to 5 years |
||
| *Note | *In optimal WiFi conditions with minimal WiFi interference and as measured during our quality validation. Check Network Deployment Guide for more info on WiFi optimisation and ideal configuration depending on your network environment. |
||
| ClickShare Base Unit dimensions | |||
| Dimensions (HxWxD) | 46.2mm x 282.3mm x 206.5mm (excl. antennas) / 1.8" x 11.1" x 8.1" 146.4mm x 282.3mm x 206.5mm (incl. antennas) / 5.8"x 11.1" x 8.1" |
||
| Power supply | Standard 110/220 V AC plug | ||
| Power consumption | Normal operation: 90W under full usage 52W under normal usage (connect 2 HDMI outputs, connect 1 HDMI input, share with 4 people) ECO mode: 30W Networked standby mode: < 1W Deep standby mode: < 0.5W |
||
| Weight | 2.2kg / 4.85lbs | ||
