V15+-Contacta Single Output Hearing Loop Driver

Engineer Team Support

7*24h Online

763 412 7282
+86 010 82830816

V15+ Overview

V15+ has a Class-D amplifier output stage and an audiosubsystem built around an advanced DSP core. Combinedwith a powerful CPU to ensure peak performance, the V15+ uses cutting edge technology proven in the pro audio worldto achieve life-like speech and first-class music reproduction.

Features

• DSP controlled automatic gain control and high frequency compensation for metal loss

• Class-D amplifier output stage capable of delivering 5ARMS @ >15VRMS

• Selectable high pass filter (Off/150Hz/180Hz)

• Audio time delay

• Switchable AGC (On/Off)

• Enhanced loop diagnostics

• Simple user interface

• Backlit LCD display

• Sleep mode

• Continuous self-testing

• Integrated protection circuits with temperature,

voltage, short circuit and DC detection

• Compact half-width 1U chassis (compatible 6U Rack

Cabinet available upon request)

• On-screen alerts for loop faults

• High efficiency with true constant current output stage

• V15+ Hearing Loop Driver

• PS-60 Power Supply

Applications

Suitable for medium sized facilities,

such as:

• Meeting rooms

• Classrooms

• Care & nursing rooms

• Waiting rooms

• Lecture halls

Accessories

• Single V-Series Mounting Bracket

[MBR-V1]

• Dual V-Series Mounting Shelf

[MBR-V2]

• Blanking Plate for Dual V-Series

Mounting Shelf [MBR-VBLANK]

• 6U Rack Cabinet [IL-AC-RACK-19]

Voltage and Current

• >15VRMS @ 5ARMS

Driver Area Coverage	Area
	1:1	1:2	1:3
	95.06m²	143.00m²	178.64m²

All perimeter loop areas calculated under the following conditions: Area at maximum driver current without voltage clipping at 1.6KHz * Loop designed to achieve 0dB in centre of the area * calculated with 25mm x 0.1mm flat copper tape * loop cable installed on floor * listening plane 1.2m

V15+ Specification

Physical Data

Dimensions	Height – 42mm (1.65”) Width – 196mm (7.80”) Depth – 132mm (5.20”) [150mm (5.90”) incl. XLR and control dial]
Weight	938g (2.06lbs)
Construction	Mild Steel
Finish	Black Powder Coated

Technical Data

Power Supply	100W 24Vdc 4.17A via External PSU (PS-60) Class 6 External PSU (100V-240V AC 50Hz-60Hz)
Inputs	1 X Balanced Line Level (3 Pin Euro-Block) or 1 X Balanced Line Level (XLR) [optimised for -10dBV to 0dBv]
	1 X Mic Level (12V phantom power via 680Ω) [optimised for levels above -45dBv]
	1 X DC Input
Outputs	1 X Loop Output (5.08mm Euro-Block)
Loop Output Characteristics	Voltage	15Vrms (42.3Vpk-pk) @ 5Arms (14.14Apk-pk)*
	Current	5Arms (14.14Apk-pk) up to 300 seconds*
	Loop Connector	5.08mm Euro-block
Audio System	Frequency Response	80Hz to 9kHz
	Distortion	THD+N <1% (-40dB)
	AGC	Switchable (ON/OFF)
	HF Comp	7 optimised stages
	Acoustic Time Delay	10ms to 70ms adjustable in 1ms steps
Display & Controls	Display	LED Backlit LCD display
Display & Controls	Control	Single rotary control
Fault Monitoring and Protection	Main Display	Open circuit loop (DCR measurement)
	Main Display	Loop ground fault
	Front Panel LED	Output voltage clipping
	Cooling	Internal heatsink with thermal protection

*Note 1: Z=3Ω (265.4uH + 1.37Ω @ 1.6KHz), Note 2: 1% (-40dB) distortion)

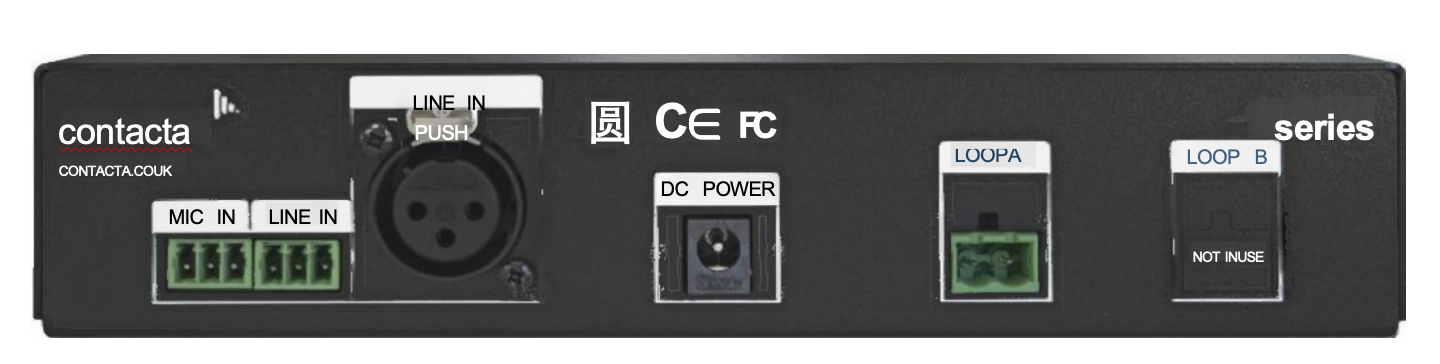

Rear Connections

Warranty: 1 year

V15+ Warranty
