JUNIPER SRX1500-SYS-JB-AC SRX Series Service Gateways
- 763 412 7282
- +86 010 69614620
SRX1500-SYS-JB-AC Buying Guide
Juniper SRX Series Service Gateways SRX1500-SYS-JB-AC is listed by YYST Global for buyers looking for JUNIPER Juniper SRX Series Service Gateways. SRX1500-SYS-JB-AC JUNIPER enterprise network switch for network refresh projects. Contact YYST Global for stock, lead time and quote support. The listed condition is New Factory Sealed. The reference price is US$ 7,684.00. Contact our sales team to confirm stock, lead time, warranty and configuration before ordering.
- Model: SRX1500-SYS-JB-AC
- Brand: JUNIPER
- Category: Juniper SRX Series Service Gateways
- Condition: New Factory Sealed
- Reference price: US$ 7,684.00
SRX1500-SYS-JB-AC Overview
SRX1500-SYS-JB-AC is a JUNIPER enterprise network switch listed by YYST Global for campus switching, data center expansion, spare replacement and network refresh projects. This page is intended for buyers comparing replacement parts, project supply, spare inventory and quote options.
YYST Global helps enterprise customers confirm model information, product category, condition, availability and sourcing route before purchase. For time-sensitive projects, send the model number and required quantity so our sales team can check stock, lead time and compatible alternatives.
Product name: Juniper SRX Series Service Gateways SRX1500-SYS-JB-AC. Category: Juniper Switch Modules & Cards. Condition: New Factory Sealed.
SRX1500-SYS-JB-AC Specification
Connectivity | |
Total onboard ports | 16x1GbE and 4x10GbE |
Onboard RJ-45 ports | 12x1GbE |
Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
Onboard SFP+ ports | 4x10GbE |
Out-of-Band (OOB) management ports | 1x1GbE |
Dedicated high availability (HA) ports | 1x1GbE (SFP) |
PIM slots | 2 |
Console (RJ-45 + miniUSB) | 1 |
USB 2.0 ports (type A) | 1 |
Memory and Storage | |
System memory (RAM) | 16 GB |
Primary boot storage (mSATA) | 16 GB |
Secondary storage (SSD) | 100 GB |
Dimensions and Power | |
Form factor | 1 U |
Size (WxHxD) | 17.5 x 1.75 x 18.2 in (44.45 x 4.44 x 46.22 cm) |
Weight (device and PSU) | 15.31 kg |
Redundant PSU | 1+1 |
Power supply | AC/DC (external) |
Average power consumption | 150 W |
Average heat dissipation | 512 BTU / hour |
Maximum current consumption | 2.5A (for AC PSU); |
Maximum inrush current | 50A by 1 AC cycle |
Acoustic noise level | 66.5dBA |
Airflow/cooling | Front to back |
Operating temperature | 32° to 104° F (0° to 40° C) |
Nonoperating temperature | 4° to 158° F (-20° to 70° C) |
Operating humidity | 10% to 90% noncondensing |
Nonoperating humidity | 5% to 95% noncondensing |
Meantime between failures (MTBF) | 9.78 years (85,787 hours) |
FCC classification | Class A |
RoHS compliance | RoHS 2 |
FIPS 140-2 | Level 2 (Junos 19.2) |
Performance and Scale | |
Routing/firewall (IMIX packet size) Gbps2 | 5 |
Routing/firewall (1,518 B packet size) Gbps2 | 9 |
IPsec VPN (IMIX packet size) Gbps2 | 1.3 |
IPsec VPN (1400 B packet size) in Gbps2 | 4.5 |
Application visibility and control in Gbps3 | 7 |
Recommended IPS in Gbps3 | 4 |
Next-generation firewall in Gbps3 | 1.7 |
Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
Maximum security policies | 16,000 |
Connections per second | 90,000 |
NAT rules | 8,000 |
Media access control (MAC) table size | 64,000 (standalone mode) |
IPsec VPN tunnels | 2,000 |
Number of remote access/SSL VPN (concurrent) users | 2,000 |
GRE tunnels | 2,048 |
Maximum security zones | 512 |
Maximum virtual router | 512 |
Maximum VLANs | 3,900 |
SRX1500-SYS-JB-AC Warranty
 | Low Price Guarantee |  | Quality Assurance |
 | 100% Money Back Guarantee |  | Commodity Refund Guarantee |
 | Diversified and Flexible Transportation Services |  | Standard Policy |
SRX1500-SYS-JB-AC FAQ
What is SRX1500-SYS-JB-AC?
Juniper SRX Series Service Gateways SRX1500-SYS-JB-AC is a JUNIPER Juniper SRX Series Service Gateways product supplied by YYST Global for enterprise IT procurement and infrastructure projects.
Is SRX1500-SYS-JB-AC available from YYST Global?
YYST Global can help check availability, lead time and configuration for SRX1500-SYS-JB-AC. Contact the sales team before ordering to confirm current stock.
What is the price of SRX1500-SYS-JB-AC?
The current reference price for SRX1500-SYS-JB-AC is US$ 7,684.00. Final pricing can change based on stock, quantity, configuration and delivery destination.
What condition is SRX1500-SYS-JB-AC listed as?
SRX1500-SYS-JB-AC is listed with condition: New Factory Sealed. Buyers should confirm packaging, warranty terms and project requirements before purchase.
Related products
Related SRX1500-SYS-JB-AC
SRX320-JSB-L
SRX320-JSB-L Juniper Juniper SRX Series Service Gateways supplied by YYST Global. Contact us to confirm stock, lead time, warranty, condition and global shipping options.
SRX5800X-BASE
SRX5800X-BASE - Juniper SRX Series Service Gateways CISCO enterprise network switch. Contact YYST Global for stock, lead time and quote support.
SRX5800X-B10-DC
SRX5800X-B10-DC - Juniper SRX Series Service Gateways. Contact YYST Global for stock and quote support.
SRX5800X-B10-AC
SRX5800X-B10-AC - Juniper SRX Series Service Gateways. Contact YYST Global for stock and quote support.
SRX550-645AP-M
SRX550-645AP-M - Juniper SRX Series Service Gateways CISCO enterprise network switch. Contact YYST Global for stock, lead time and quote support.
SRX345-SYS-JE
SRX345-SYS-JE - Juniper SRX Series Service Gateways CISCO enterprise network switch. Contact YYST Global for stock, lead time and quote support.
SRX345-SYS-JB
SRX345-SYS-JB - Juniper SRX Series Service Gateways CISCO enterprise network switch. Contact YYST Global for stock, lead time and quote support.

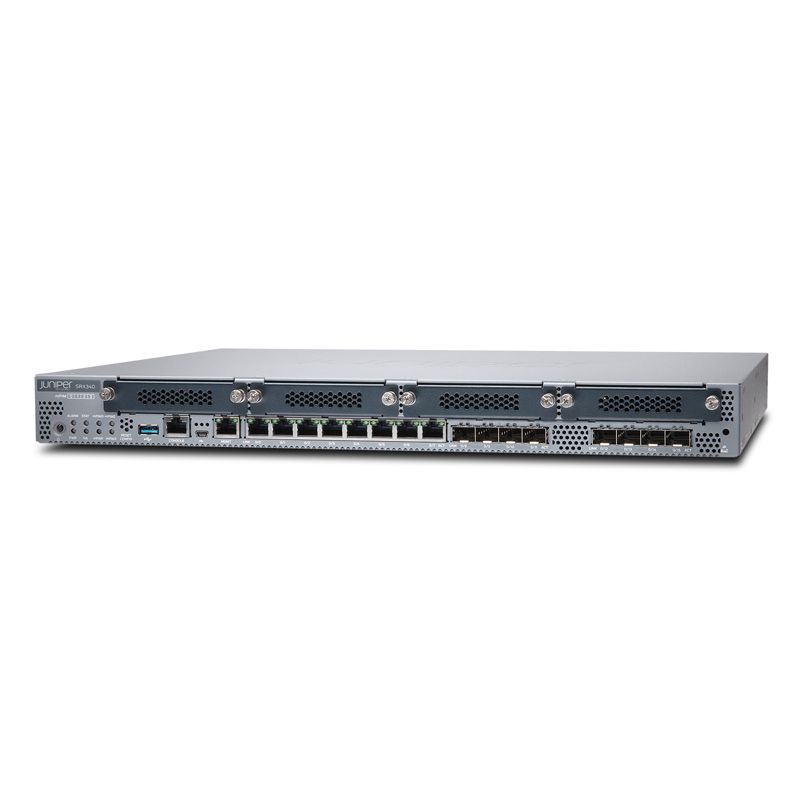

SRX340-SYS-JE
